Step 1

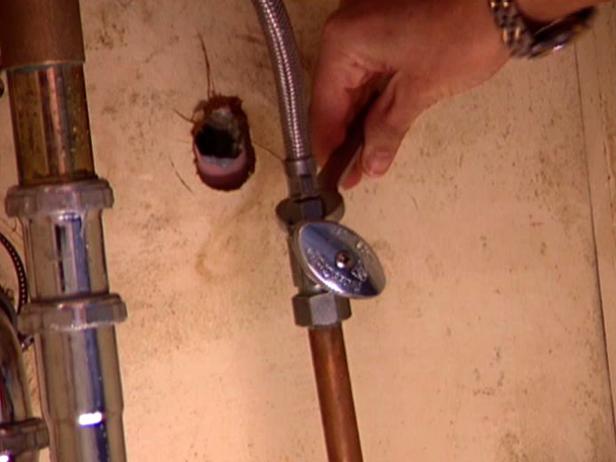

turn off water valves

turn off water valves

Turn the Water Valves Off

Before removing the old sink, turn off the water shutoff valves.

Using a wrench, remove the coupling nuts that connect the supply tubes to the shutoff valves. Place a bucket under the supply tubes and turn on the faucets to drain any remaining water.

Step 2

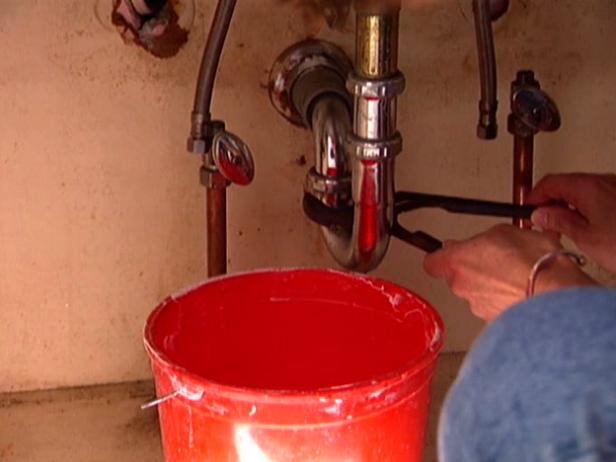

remove P trap and disconnect drain

remove P trap and disconnect drain

Remove the P-trap and Disconnect the Drain

Move a bucket underneath the P-trap and remove the P-trap by loosening the slip nuts at both ends. The bucket will catch any water from the drain.

Disconnect the pop-up drain linkage from the tailpiece of the sink.

Step 3

Remove the Countertop

Use a utility knife to slice through the caulking between the countertop and the wall. Score along the seal between the countertop and the cabinet.

Lift the countertop off the cabinet to break the seal, and periodically use a pry bar to help break the seal along the wall.

Pro Tip

Many countertops are screwed into the vanity; if this is the case, be sure to remove all of the screws before trying to lift off the countertop. Another option is to remove the entire vanity/sink combination; however, you might need an assistant to help you move the vanity.

Step 4

Remove the Vanity

If the supply lines for the vanity come up through the bottom, there may not be enough clearance to lift the vanity over them. So, first use a small handsaw to cut away some of the bottom of the cabinet around the water supply lines. Then lift the cabinet up and over the supply lines and take it out of the bathroom.

Pro Tip

Your removal may differ depending on the location of your water supply lines and the type of cabinet you are removing.

Step 5

Relocate the Supply Lines

If your supply lines come up through the floor, you might want to consider hiring a professional to relocate them, too. The relocation of supply lines may leave two holes in the floor. Because a pedestal would cover most of the holes, fill them with grout. Plug the holes from underneath the floor, fill them with grout, wipe away the excess grout and allow the grout to dry.

Step 6

Make Sure the Sink is Flat Against the Wall

Position the sink and pedestal against the wall, making sure the sink is flat against the wall and correctly seated on the pedestal. Use a felt tip pen to mark the locations for the holes needed to mount the sink and pedestal.

Step 7

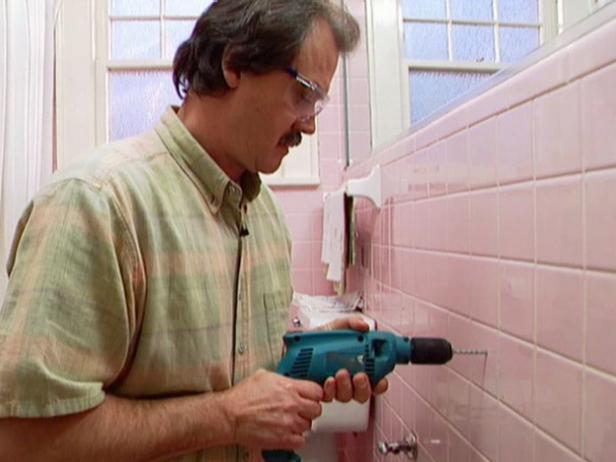

drill pilot holes into wall

drill pilot holes into wall

Drill Pilot Holes

Using a hammer drill with a masonry bit, drill pilot holes into the wall at the marked locations. Begin drilling with a small bit and then change to a larger bit to increase the size of the holes so the supplied toggle bolts and lag screws will fit.

Pro Tip

If you aren't drilling through tile or masonry, a standard drill bit will work.

Step 8

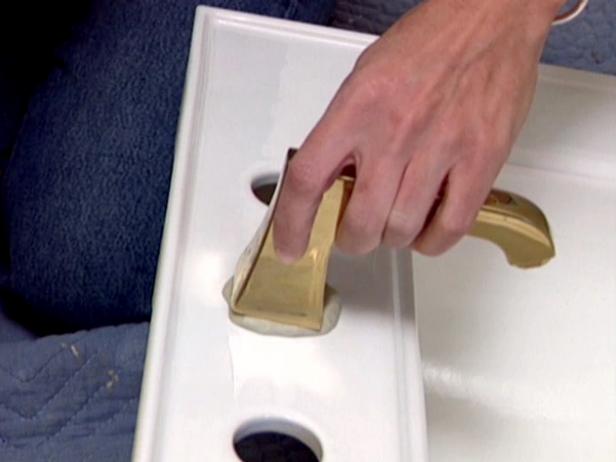

insert spout shank of faucet through deck

insert spout shank of faucet through deck

Spread Plumber's Putty Around the Hole

To simplify the installation, assemble the sink and faucet before mounting the sink to the wall. Start by spreading plumber's putty around the faucet hole in the sink. Insert the spout shank of the faucet through the deck of the sink and secure it from underneath.

Step 9

tighten the faucet handle

tighten the faucet handle

Tighten the Faucet Handle

Spread more plumber's putty around the hole for the faucet handle, inserting the handle and then tightening it with a fastening nut from below. Attach the flexible hoses to the bottom of the handles, tightening them with locking pliers. Be sure to tighten the nuts to secure the connections.

Step 10

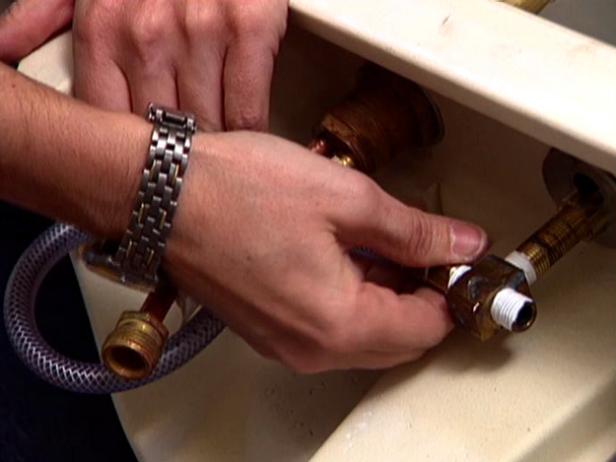

wrap plumbers tape around brass T at faucet

wrap plumbers tape around brass T at faucet

Apply Plumber's Tape

Wrap plumber's tape around the brass "T" at the bottom of the faucet and attach the flexible hoses to it. Wipe away any excess putty with your fingers.

Step 11

Insert the Drain

After the faucet assembly is installed, begin working on the drain. Press a roll of plumber's putty to the underside of the drain flange. Insert the drain through the drain hole of the basin. Pull the flange down and seat it in the putty. Insert the rubber gasket and plastic washer, and then hand tightened the mounting nut.

Step 12

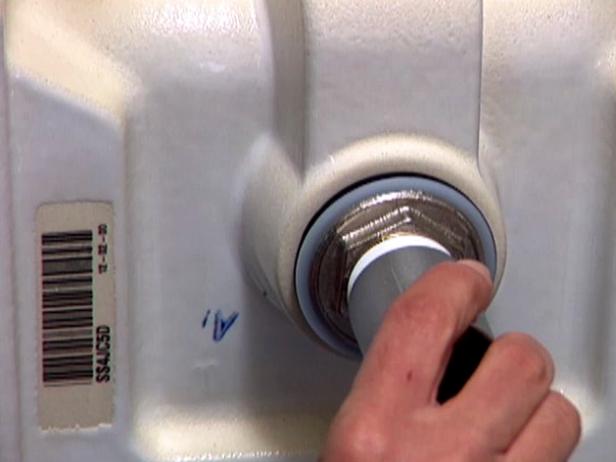

install body of drain

install body of drain

Install the Body of the Drain

Wrap plumber's tape around the threads and then install the body of the drain. Wrap plumber's tape around the threaded end of the tailpiece and secure it to the body.

Step 13

Connect the Lines and Position the Pedestal

Insert the stopper and assembly, and attach it. Connect the water supply lines to the faucets.

With the sink fully assembled, it's ready to be installed in the bathroom. Position the pedestal over the holes drilled earlier. Carefully lift the sink and place it on top of the pedestal, lining it up with the pre-drilled holes.

Insert the supplied toggle bolts and tighten them with a screwdriver. Insert lag screws to secure the pedestal to the floor.

Step 14

Connect the Water Supply to the Valves

Join the water supply lines from the faucet to the shutoff valves. Put the P-trap in place and tighten the slip nuts that connect it to the tailpiece and drain arm.

Step 15

Turn on the Hot and Cold Water Faucets

With all the connections made, open the water shutoff valves and turned on the hot and cold water faucets one at a time to slowly bleed off air in the lines. Fill the sink with water, then let it drain to check for any leaks.

Run a bead of silicone caulk between the wall and the sink to seal any gaps against moisture.
