Step 1

Bend the Conduit

A conduit is a metal pipe that houses electrical wires. When wires are tightly wound through a conduit, a grounding wire isn't necessary -- as the conduit itself acts as a ground. (It's important to use conduit when running wires on the outside of a wall.)

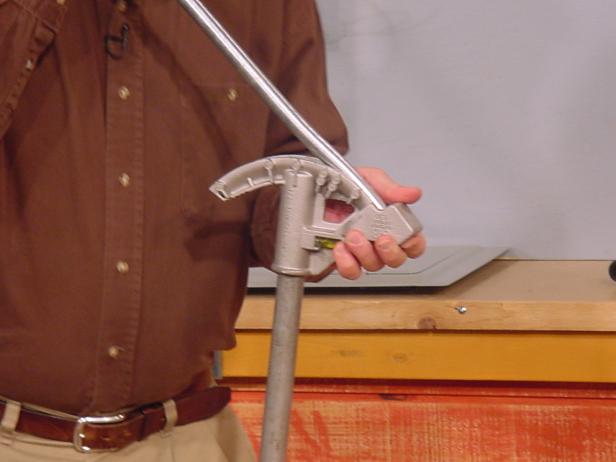

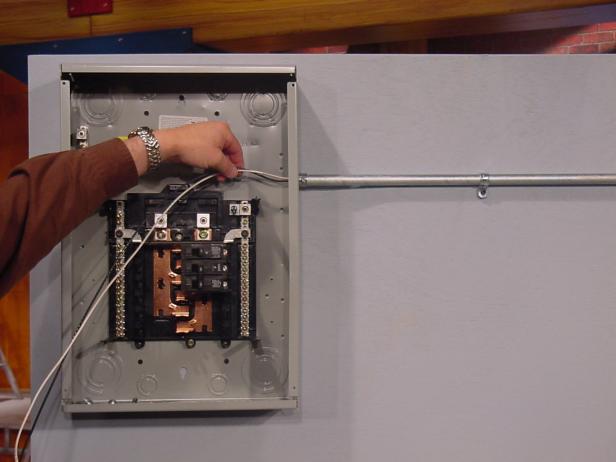

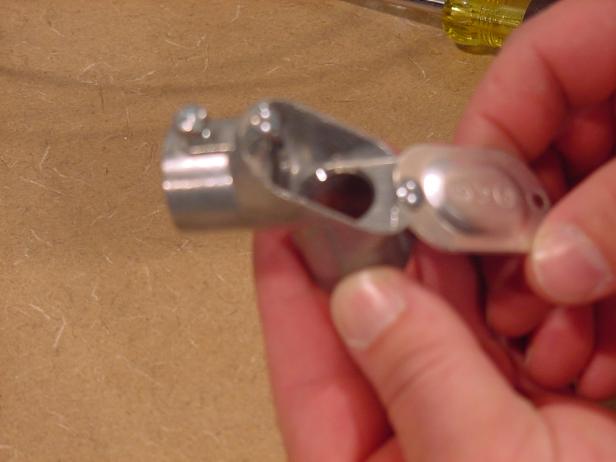

Conduit benders will bend the metal of a conduit, or a 90 degree pulling 'L' can be used (image 1). It opens in the back, which creates an access point to pull wires through. Run the wires from the subpanel (image 2) to the pulling 'L' and then down to the junction box (image 3).

Step 2

shape the conduit

shape the conduit

Shape the Conduit

A junction box is an outlet box (also called a knockout box because of the circles in the sides of the box knocked out and removed in order to install a connector for the conduit). Use a conduit bender to shape the conduit so it will fit into the connector at the necessary angle. The conduit bender is pictured upside down in this example; normally it's operated on the floor.

Step 3

brackets hold conduit tight against wall

brackets hold conduit tight against wall

Attach the Brackets

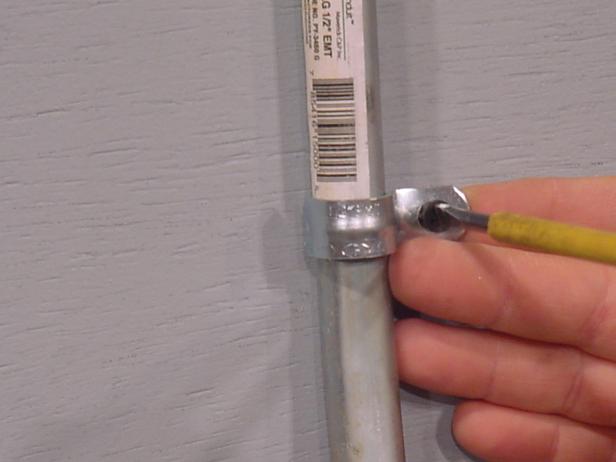

Brackets hold the conduit tight against the wall. Space brackets within 36" of a junction box, then every 10' thereafter. Use a level to make sure the conduit is straight.
