Wainscot paneling is applied to the lower wall below a dado rail (cap rail or chair rail) and above the baseboard or skirting board. Wainscot panels are traditionally constructed of vertical tongue and groove boards, though beadboard or decorative raised panels are also common.
Find a room in the house that needs a new definition, perhaps the mudroom, or maybe the dining room. What would a Shaker-style wall covering look like in one of the bedrooms? Look for an open wall space, one without a lot of cabinets, couches or dressers next to the wall. Find one? OK, now it's time to plan, take measurements and create a shopping list.
Identify the wall covering dimensions by measuring the length of wall(s) from corner to corner, including the area underneath windows. Determine the height of the wall covering, from the floor to the top of the cap rail. This is typically about 36 to 48 inches in height. The wainscot will run across the wall surface from wall to wall, right up to the door trim and wall corner(s). Calculate the board feet of base board (1x8), the top rail (1x6) and the vertical stiles (1x4).
Also include the cap rail, which will sit on top of the top rail. Trim may be added under the cap rail. This trim piece is optional, based on a decision to "keep it Shaker simple."
A decision can be made with respect to the type of wood chosen for the wainscot wall covering. The type of wood chosen is influenced by whether the wall covering will be painted, stained or remain natural.
For many DIYers, it is recommended that the wood be painted/stained prior to installation on the walls.
When calculating stile board feet, remember to calculate the vertical length between the 8" baseboard and 6" top rail. Also, the space between the stiles will influence the number of stiles and board feet. Stile spacing varies from 18 to 28 inches depending on the wainscot width. Choose a spacing that matches the dimensions of the chosen wall(s), calculate the number of vertical stiles and then calculate the 1x4 board feet.
Start from one end of the wall or door trim and attach the top rail using a finish nail gun to secure the first section of top rail, hitting the marked wall studs. This end section, which is usually against a wall or door trim, uses a 90-degree cut, or square cut with the miter saw.
To avoid the visible gap and to "hide" the seam, a bevel cut with the miter saw is made. Set the wood flat on the saw base, rotate the saw blade 45 degrees and make the first cut. On the second piece of top rail, another 45-degree bevel cut will be made in order to "slip" the end underneath the first cut.
To help clarify the difference in wall covering terms, a dado cap rail sits on top of the top rail to finish off the project. But before the cap rail is installed, the wall covering must be in place. The first step is to attach the horizontal 6" top rail to the wall. Scribe a light pencil mark on the wall 1 1/2" below the proposed height of the cap rail. This wall mark represents the height of the top rail, typically between three and four feet up from the floor. To assist in attaching the horizontal top rail, a level pencil line must be drawn on the wall. Using a 6' level or laser level and a long straight edge, trace a horizontal line on the wall from corner to corner to help align the top rail placement. If covering more than one wall, continue the top rail pencil line all the way around to the end of the planned project.
Next, mark on the line or place a piece of blue painter's tape where the wall studs are located. To find studs, tap the wall with a knuckle, continually rapping horizontally across the wall. Listen for the difference in sound and feel as the tapping sound alternates from a hollow knock to one of solid connection.
Start from one end of the wall or door trim and attach the top rail using a finish nail gun to secure the first section of top rail, hitting the marked wall studs. This end section, which is usually against a wall or door trim, uses a 90-degree cut, or square cut with the miter saw. Use the wall pencil line and an assistant to guide the top rail placement.
Continue attaching the top rail to the wall corner. If the top rail incorporates more than one wall, wrap the inside corner by matching two 45-degree bevel cuts to create a clean 90-degree turn. Note: Most walls have a 90-degree turn, but not all, as at Blog Cabin 2011. Continue "wrapping" the top rail, following the pencil mark to the end.
Builder's Tip: This DIY project may require another set of hands at times. Holding the 6' level or long straightedge while marking pencil lines is easier with two DIYers working together.

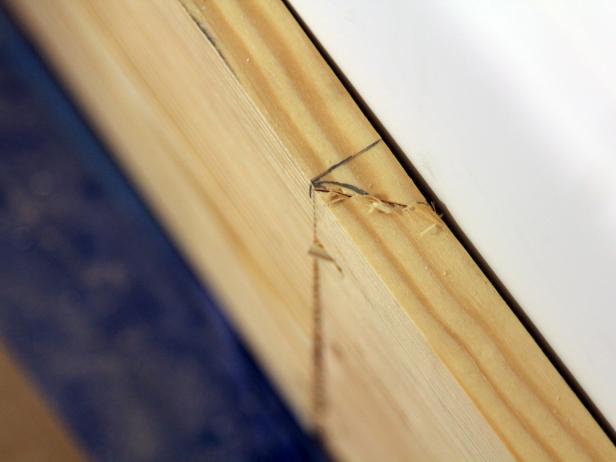

Builder's Tip: Most often, a single piece of top rail will not reach from one side of the wall to the other. Therefore, two pieces must be installed on the wall, creating a seam, or scarf joint, between the two pieces. With today's modern miter saws a square cut for an in-line joint will suffice, but over time, wood shrinkage will create a gap between the two pieces. To avoid the visible gap and to "hide" the seam, a bevel cut with the miter saw is made. Set the wood flat on the saw base, rotate the saw blade 45 degrees and make the first cut. On the second piece of top rail, another 45-degree bevel cut will be made in order to "slip" the end underneath the first cut. To make this cut, the top rail piece must be turned upside down on the miter saw base. The two 45-degree bevel cuts at the seam's two ends now create a scarf joint. This cut minimizes the seam's appearance and eliminates a wood shrink "gap" after wood putty is applied.

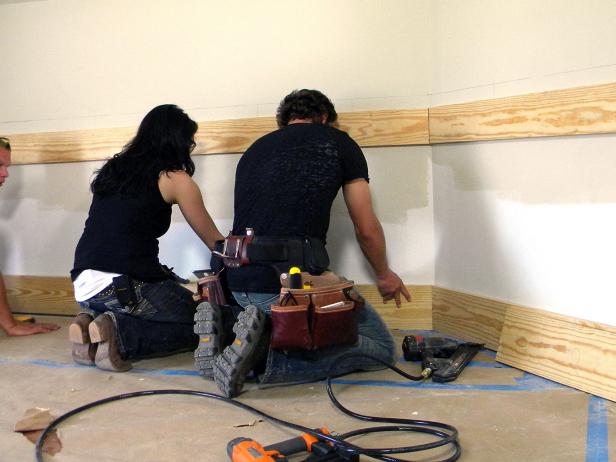

The 8" baseboard is installed in similar fashion to the top rail. Start from one end of the wall and attach the baseboard along the floor using the finish nail gun to secure the first section, hitting the marked wall studs. Hide the seam again with two bevel cuts at the ends to create the scarf joint. Continue installing the baseboard into the corner(s). Match the bevel cut(s) to create a clean 90-degree turn, if continuing along a second wall.

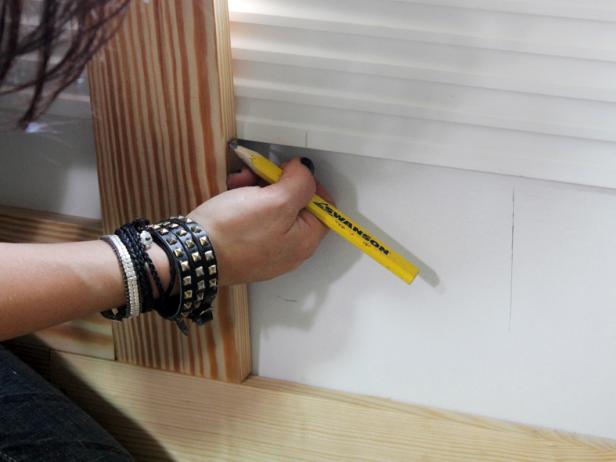

To cut a stile under the window, place a shortened length of stile atop the baseboard. Mark the stile where the cut will be made to fit the window trim. When cutting stiles around wall receptacles, use the pencil to outline the cut locations on the wall, then transfer the cut lines onto the stile.
Typical spacing between stiles ranges from 18 to 28 inches apart. The variables that may help determine the choice of spacing include the wall width, location of window trim, wall receptacles, TV and telephone cable boxes and wall vents.

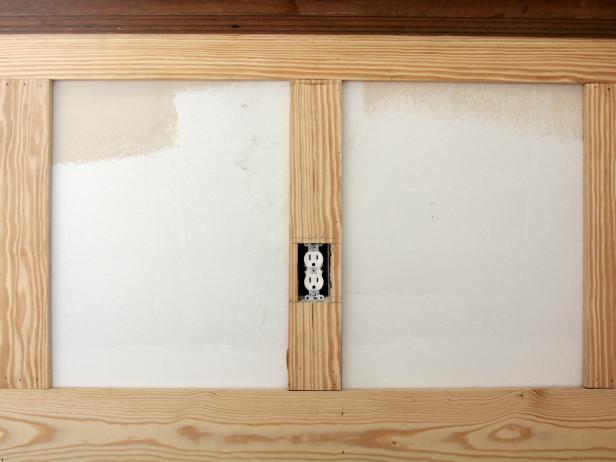

When working around window trim and wall receptacles, logic prevails. To cut a stile under the window, place a shortened length of stile atop the baseboard. Mark the stile where the cut will be made to fit the window trim. When cutting stiles around wall receptacles, use the pencil to outline the cut locations on the wall, then transfer the cut lines onto the stile. Once the outline of the wall receptacle has been transferred to the stile, drill the opening with a 3/8" bit, then cut out the opening with a jigsaw or coping saw.
Continue setting stiles along the wall at the desired spacing until the Shaker-style wall covering is complete.
Builder's Tip: It may be helpful to lay out a visual template on the wall, identifying where the stiles will be located. This can be done by marking the wall with a pencil to visualize the stile location. Another helpful technique is to pull out a long strip of painter's tape and attach it to the top of the baseboard, on the front face. Then pull out the tape measure and lay it on the floor from wall to wall. Mark the tape where the stiles will be located. A third helpful tip in setting stiles is to cut a "block" or "spacing" template and place it atop the baseboard to mark the next stile location.
Safety Tip: When nailing stiles around wall receptacles, it is important to hit the wall studs adjacent to the receptacle. Receptacles are typically nailed to a wall stud before the drywall is installed.
To complete the project, a dado cap rail may be placed atop the top rail. Miter cuts for inside the corner wraps with the cap rail are required. Trim molding under the cap rail may be used as an optional decorative. Not all Shaker-style wall coverings include the decorative trim piece. In the Blog Cabin 2011 family room, wainscot was trimmed out with a stained molding to offset the color scheme.
Finish nail holes and seams with wood putty. Once the putty has dried, sand holes and seams smooth. If you plan to paint the paneling, attach painter's tape along the wall to protect the wall where the final paint application will be applied.
If you plan to stain the paneling, the first coat of stain should be applied before the wood putty. Wood putty comes in a variety of colors. Choose the tint that matches the stain. Lightly sand the dried putty smooth and touch up the stain over the sanded area.
