Step 1

Measure Your Window
Measure the width and height of the window to determine what size shutters are needed.
Step 2



Use Filter Strips to Determine Layout

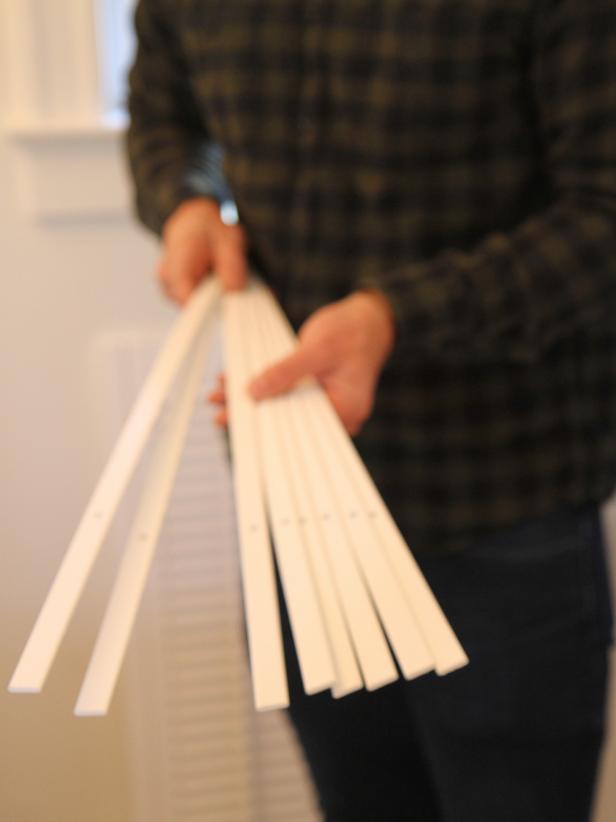

A bunch of 1/8” filler strips are usually included with the shutters to adjust the width if necessary. They also serve as a great template to use for layout.

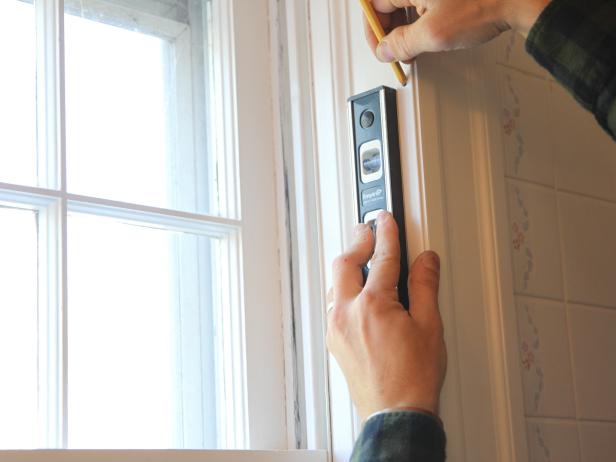

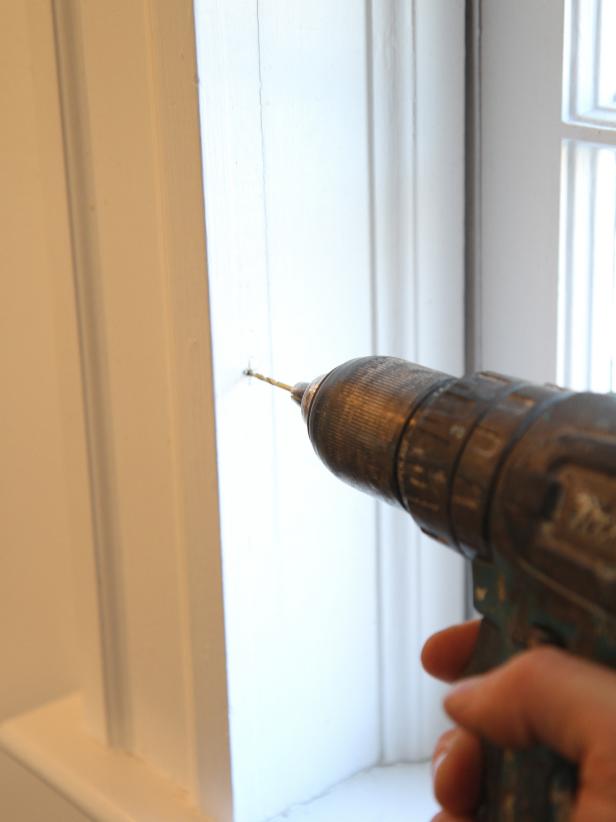

Hold up one of the filler strips to the front edge of the window frame, level and mark the screw holes with a pencil. Pre-drill the holes using a 1/4” bit.
Step 3

Measure Shutters

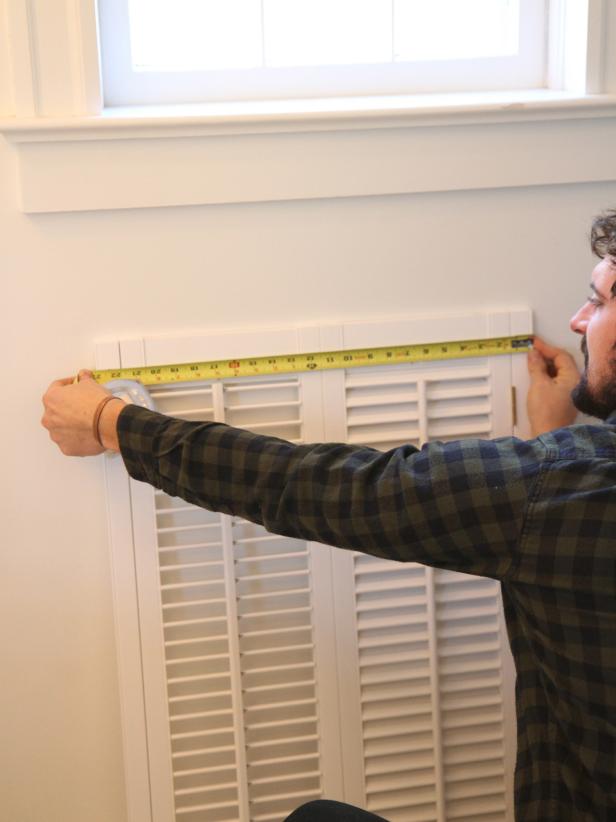

Place the shutters together and measure the overall width.
Step 4

Attach Filler Strips

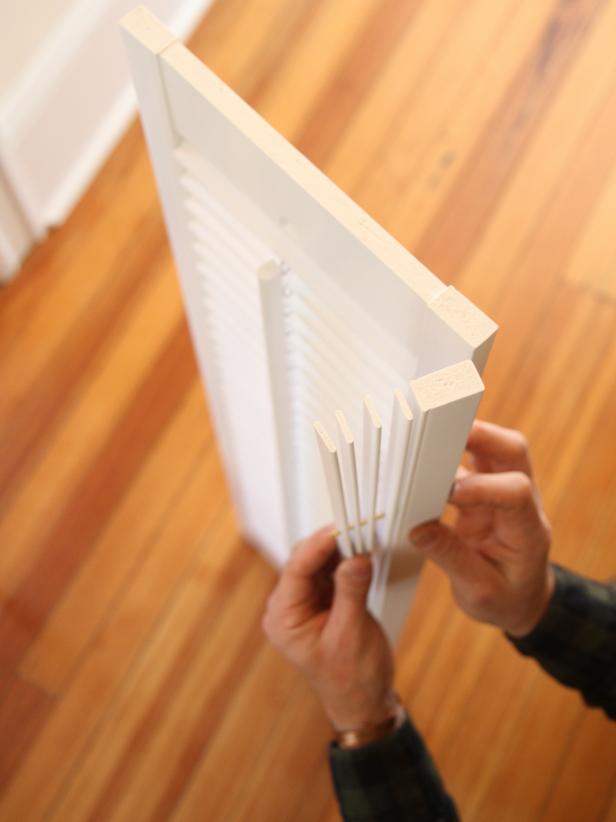

Determine how many filler strips are needed (we needed four), insert the screws through the shutter frame and slide the filler strips onto the screws.
Step 5

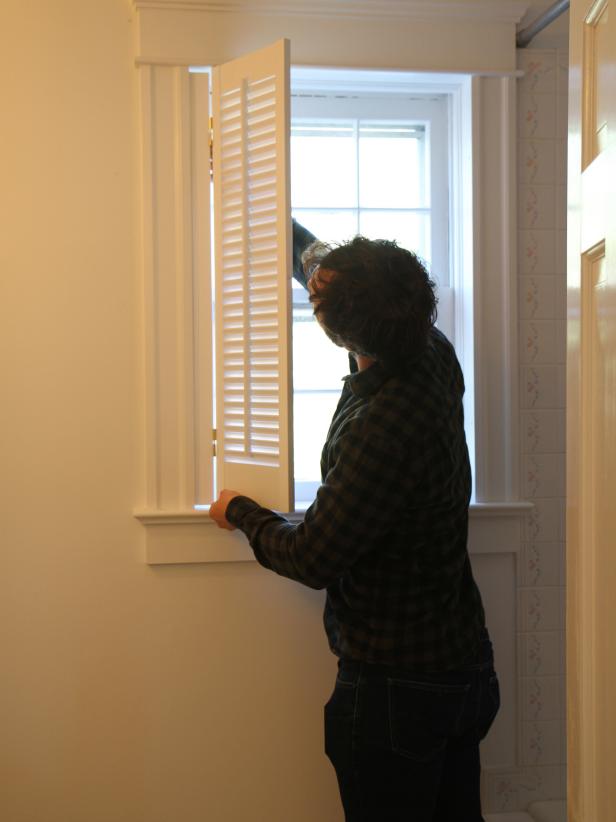

Mount Shutters
Hold the shutter in place, aligning the screws with the pre-drilled holes. Slowly tighten the screws into place. Repeat this step for the other side.
Pro Tip
Don’t tighten screws too tight in case adjustments are necessary.
Step 6

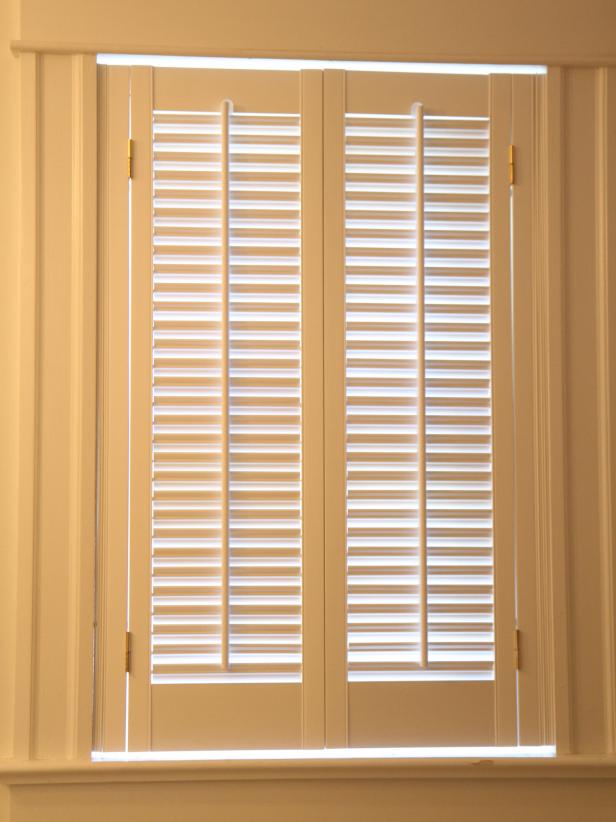

Check Alignment and Adjust

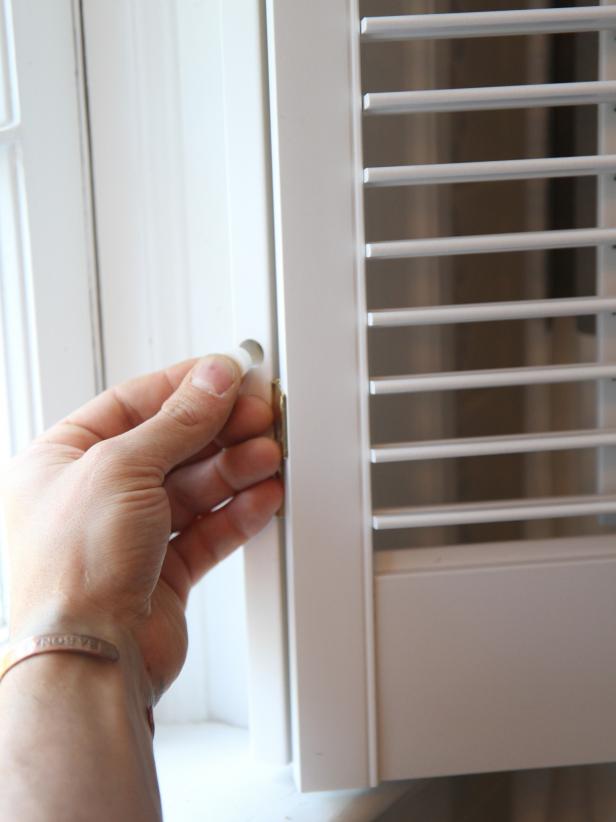

Close the shutters in place to ensure that everything aligns properly. After any necessary adjustments are made and the shutters close properly, insert the screw-cover plugs that should have come with the kit.
Step 7


Mark Hardware Placement

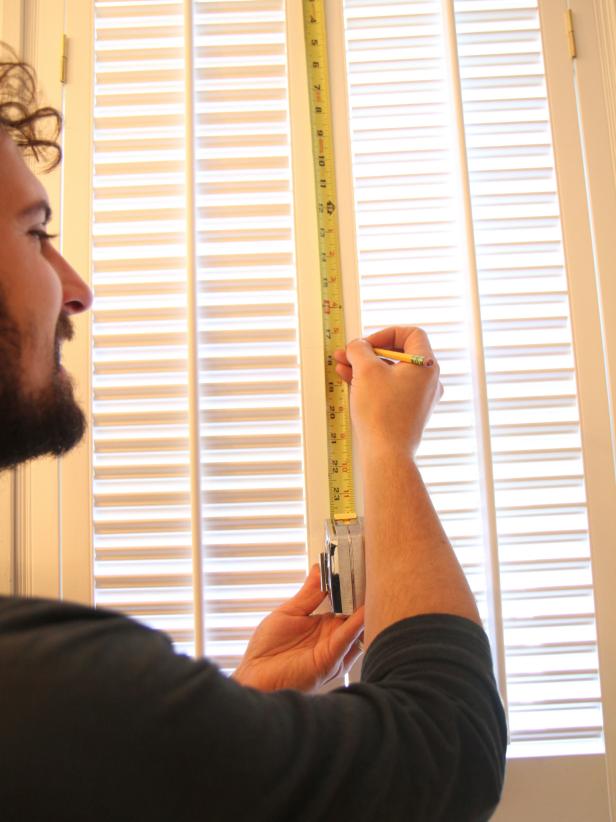

Layout the hardware for the shutters by making a pencil mark half-way down on the face of the shutters. Place a level on the mark and use a pencil to draw a perfect horizontal line on each side of the shutter frame.
Step 8


Measure and Pre-Drill Holes

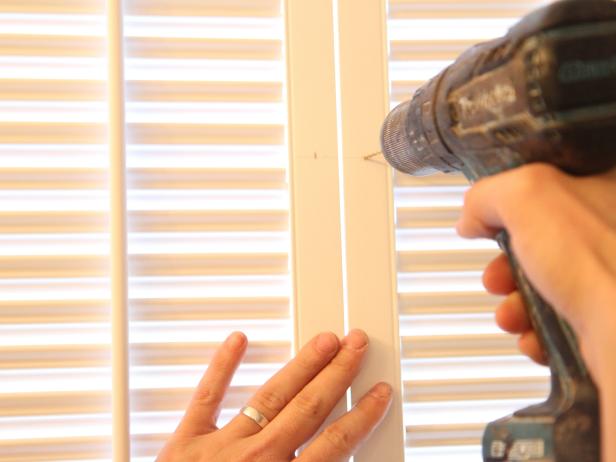

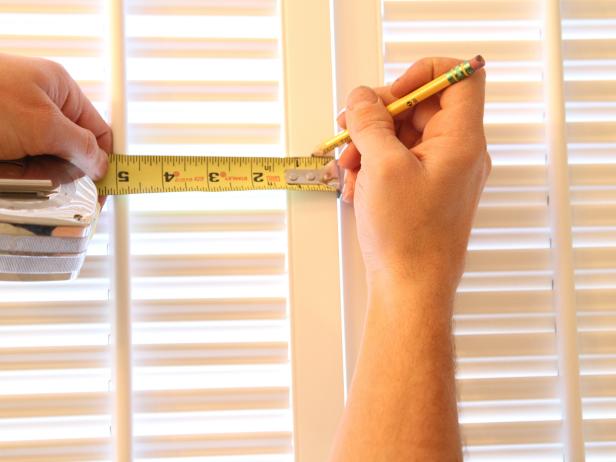

Measure for the centerpoint on each door frame and make a vertical mark that intersects with the horizontal line. Use a 1/4" drill bit to pre-drill holes on each door where the vertical and horizontal lines intersect.
Step 9



Attach Fixtures and Test

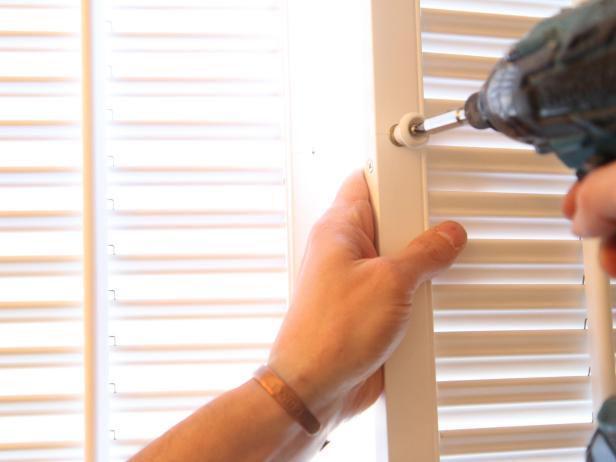

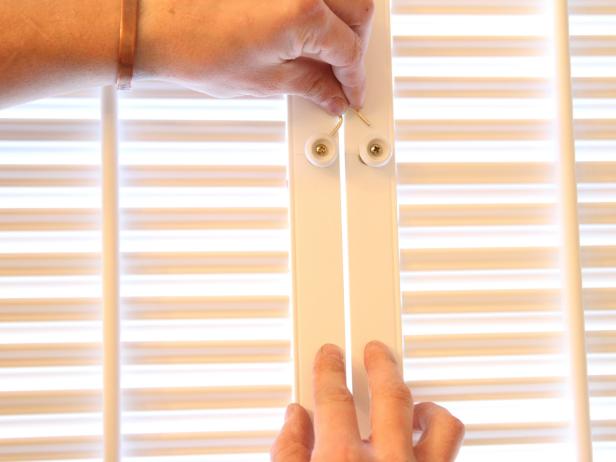

Screw in the right-side knob -- without the latch -- into the pre-drilled hole on the shutter. Repeat steps for the left-side knob, with the latch.
Test the lock by closing the latch.
