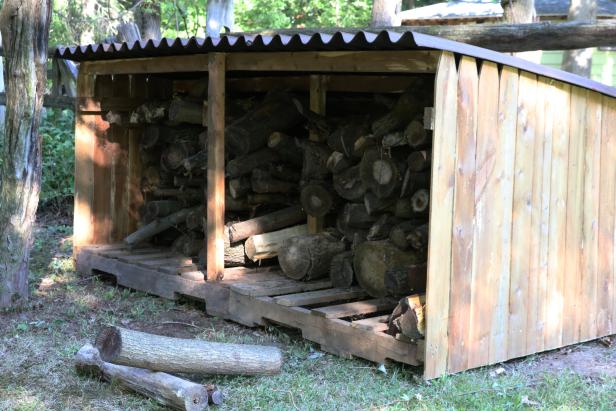

Learn how to build an outdoor firewood shelter to keep logs dry.

Learn how to make an outdoor firewood storage unit.

Build an outdoor firewood shelter to keep logs dry.

Photo by: Emily Fazio

Emily Fazio

Two shipping pallets are used for the base of the structure to keep the firewood off the ground. This will help ensure it stays dry and won’t rot.

Step 1

Stain Fence Pieces

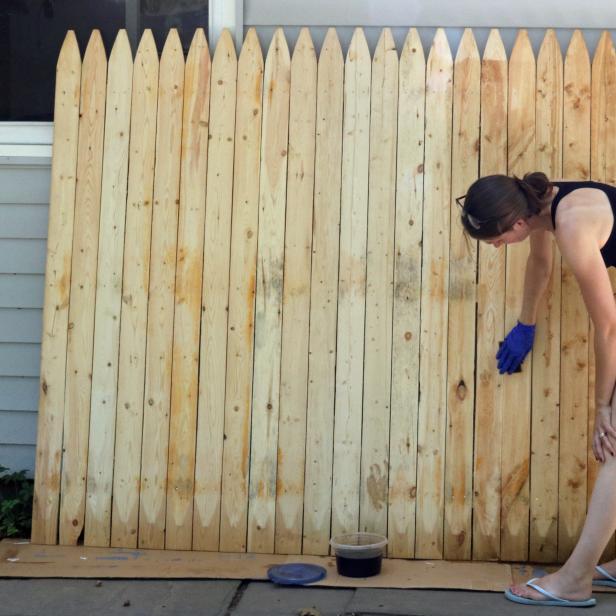

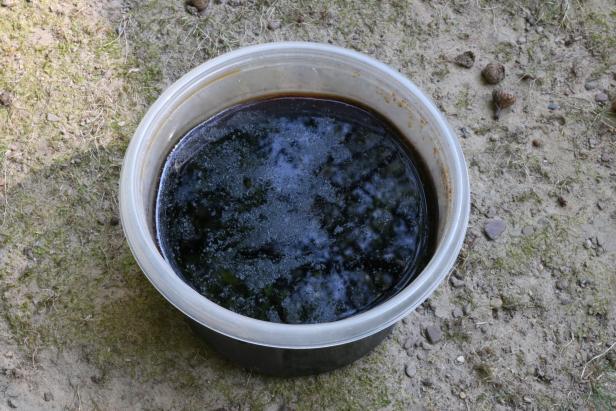

Before we started building, we choose to stain the new pressure-treated fencing. Instead of using oil-based stains, we made a natural stain using steel wool soaked in apple cider vinegar. The chemical reaction dissolves the steel wool leaving a rich brown solution that ages wood beautifully as it dries. Take note that the steel wool needs to soak in the stain for several weeks to reach maturity, so make it well in advance. Use a sponge to apply the stain to the wood.

Step 2

Measure and Mark Cuts

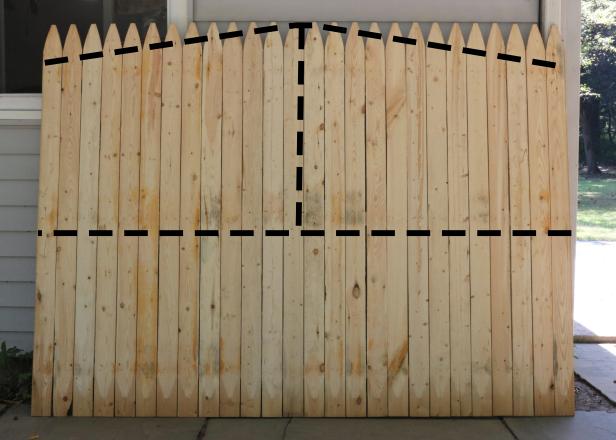

The single piece of fence will be cut into three pieces to form the back and two side walls of the storage structure. From the bottom upwards, measure 31-1/2” and mark a line across the width of the fencing.

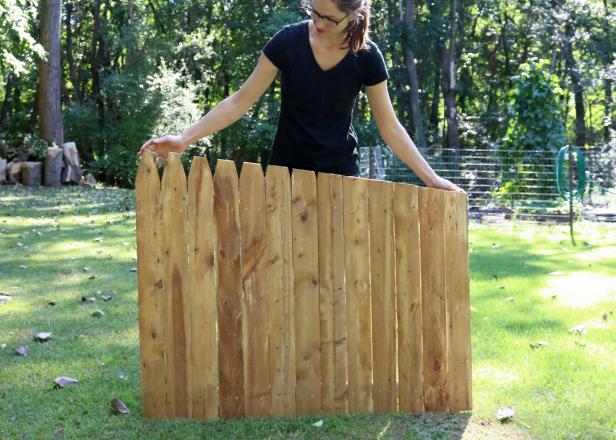

The two side walls will be formed by cutting the top of the fence panel in half. The roofline on the side walls will be angled to help water runoff. Measure eight inches down from the top corners of the fence panel and make a mark on each side. The eight-inch measurement on our panel fell where the horizontal board on the back of the fence was attached. If you can, leave that horizontal board intact for stability. Measure four feet inward to mark the center point on the panel, and from that point, align a straight edge to connect the two points. Repeat on the other side of the fence panel.

Step 3

Cut Fence Panel

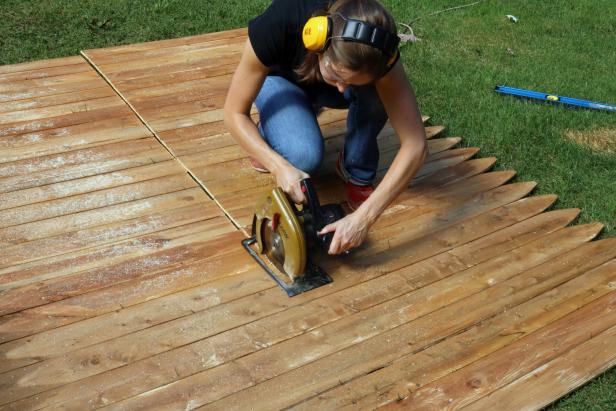

Use a circular saw set to depth and cut the fence along the marked lines. You should have one 96” x 31-1/2” rectangle (the back of the storage unit) and two wall pieces.

Step 4

Set Up Pallet Floor

A breathable structure is important for an outdoor wood storage unit. Keeping the wood off the ground helps air circulate and keeps the wood dry. Pallets are perfect for this and they can be easy to come by although they can vary in size. Paired side-by-side, this set is 90” wide and 42” deep. Set up the pallets near where you intend your finished structure to sit because it will be heavy when you’re done. For added reinforcement, you may find it helpful to connect the two pallets together so they sit level and move as a single unit.

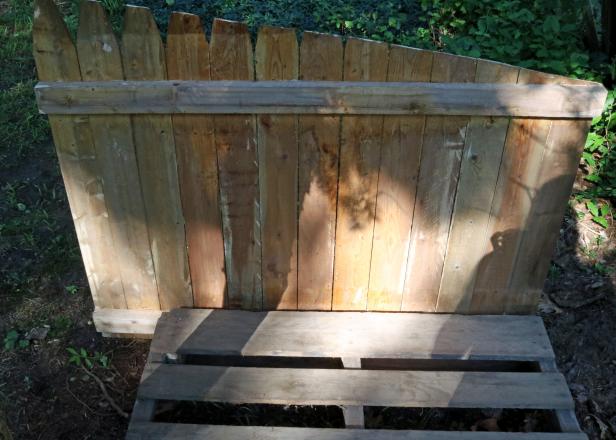

If you need to trim the wall panels to fit your pallet size, now is the time to make that adjustment. We decided to trim the taller two pieces of wall panels so that each side panel is the same depth as the pallet. Three vertical fence panels were also trimmed from the back wall to match the width of the joined pallets.

Step 5

Reinforce Walls and Attach

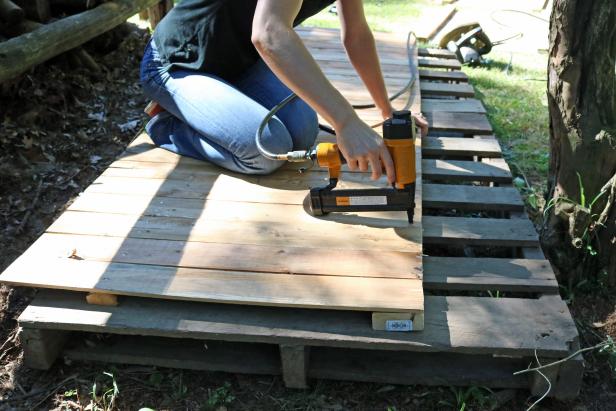

It’s likely that you too will have cut the back wall in such a way that the fence boards are reinforced by a horizontal cross brace on one end, but a little floppy on the other end. Nail the loose ends of the fence flush to a 2x4 board to provide extra support to the back wall and roofline.

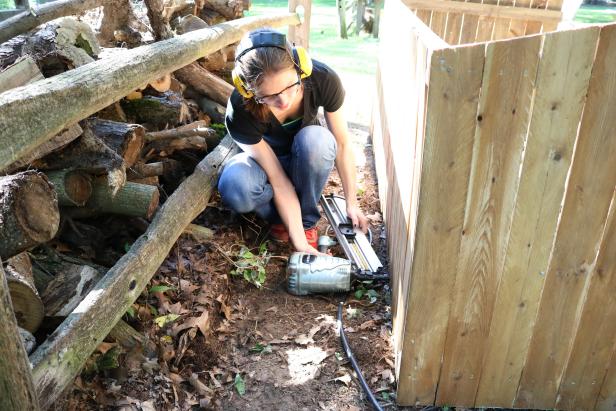

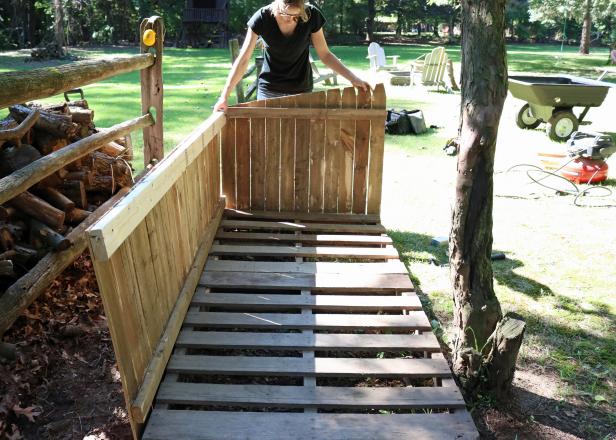

Use a nail gun to attach the fence panels directly to the pallet base on all three sides, begin with the walls. Lap the corners of the fencing to connect the walls together.

Step 6

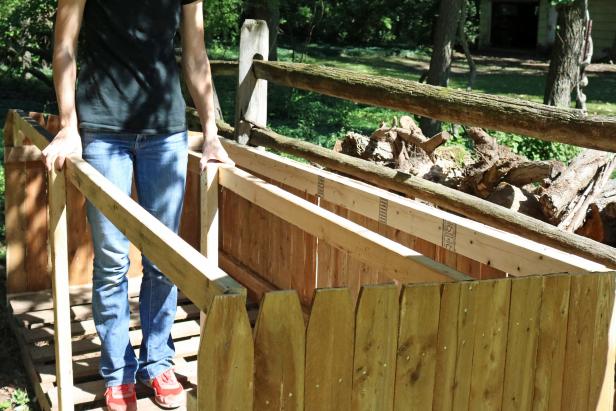

Build Framing to Support Roof

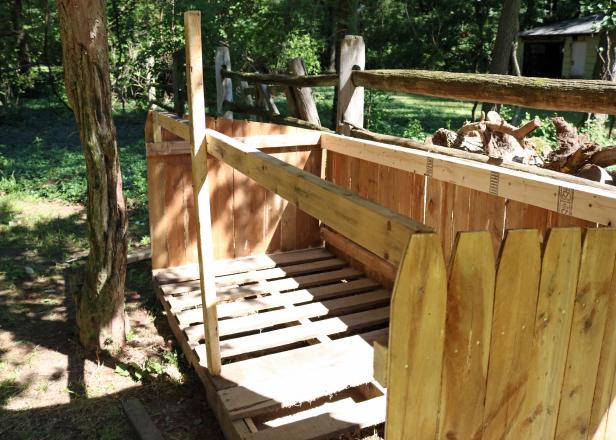

A simple framework with center braces will be strong enough to support the weight of the corrugated roof. To make the roof joists, two 2x3 boards were measured, cut and installed to span the horizontal length of the unit. Create vertical supports for the roofline by measuring the distance from the top of the pallet to the top of the roof joist. Cut the last 2x3 to match those lengths (we used two). Attach the vertical supports with the nail gun. The vertical supports will reinforce the structure and prevent the roof from bowing under the weight of itself and snowfall.

The 2x4 that was previously installed on the top of the back wall serves as the third joist, holding part of the weight of the roof. The wall itself provides enough roof support.

Step 7

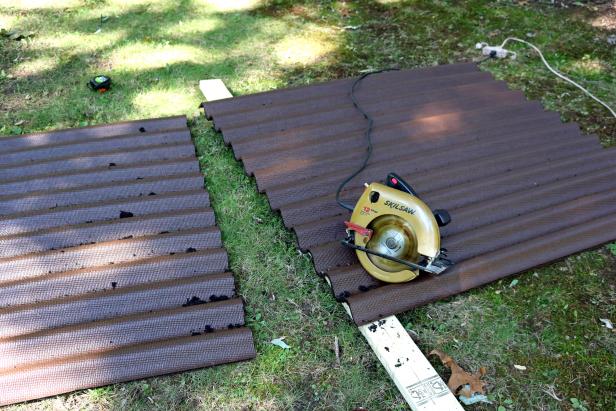

Cut the Roof

The cellulose fiber/asphalt roof panels we used are sold in 48” x 79” sheets. Two sheets were enough to cover the width of our storage unit. The ridges in the roof panels should be positioned to let the rainwater easily flow downwards.

To decide how much overhang should exist on your storage unit, position the panels on top of the joists. Be sure to account for one to two ridges overlapping in the center where the panels meet. Mark your desired cuts with a pencil. On our roof, the overhang was reduced to one ridge (about 2”) while the front and back have a 4” overhang. Use a circular saw to cut the roofing.

Step 8

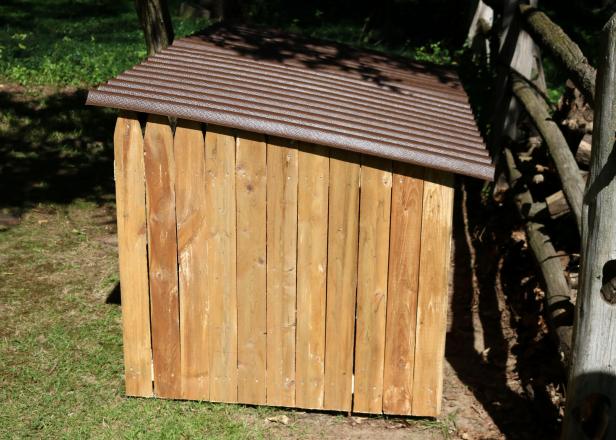

Attach Roofing Panels

Invest in special roof fasteners with polycarbonate washers to install the corrugated roofing. The screws are self-tapping and connected to the weatherproof washer it will help keep the storage unit free from water dripping in from above. Install a screw at each second or third ridge interval, along each of the three ceiling joists.
