The shower kit includes a one-piece triangular “neo-angle” base, and wall panels that are attached directly to the wall studs. Even though the panels are made of hard plastic, they are fragile and must be handled carefully. In addition to the base and wall panels, the kit includes glass side-walls and a glass door. To assemble and install the unit, follow the directions provided by the manufacturer.

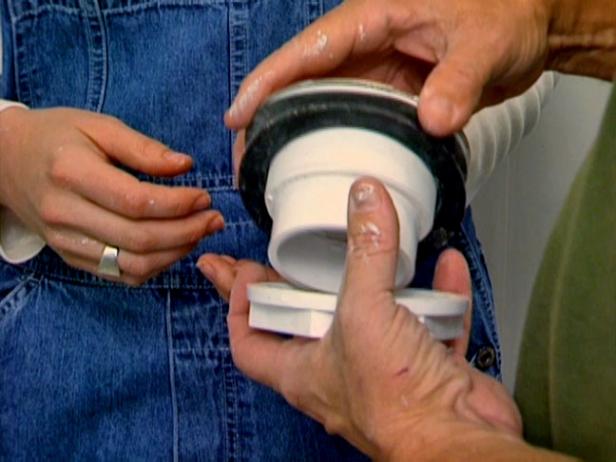

In this kit, a floor-drain strainer and connecting drain pipe must be installed before the shower base is installed (Image 1). First, fit the neoprene gasket onto the stem of the floor-drain’s upper section and insert the stem into the base, then screw the lower section onto the stem from below the base (Image 2).

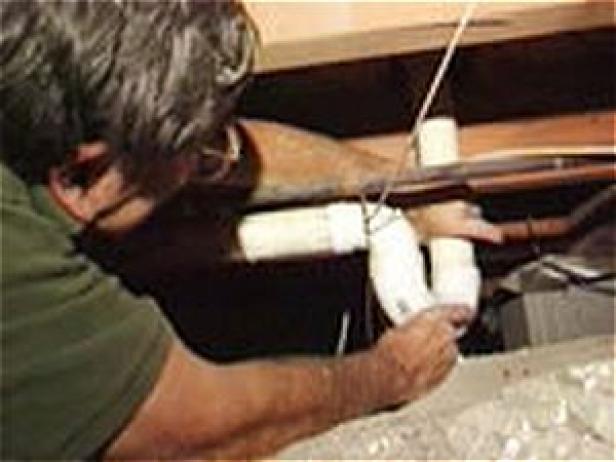

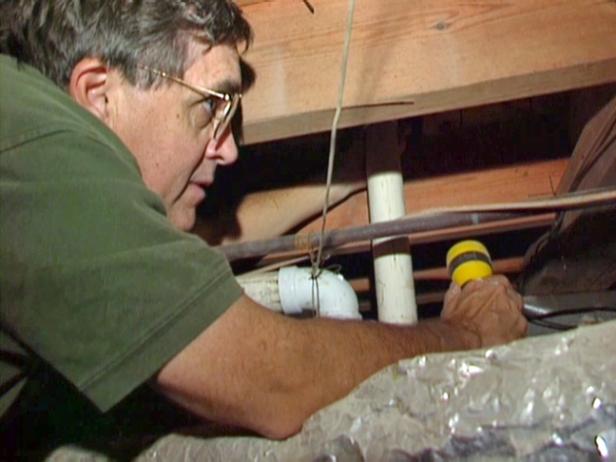

Attach a PVC pipe tailpiece to the floor-drain stem, using PVC cement. After the base is in position, this tailpiece is attached to the rough-in plumbing from below (Image 2).
The first wall panel includes the corner piece and extends to the right (Image 1). Take extra care to level and position this panel correctly because it will affect the position of the rest of the shower components.
Use 1-1/2" galvanized roofing nails to fasten the first wall panel through slots provided on the panel flange.

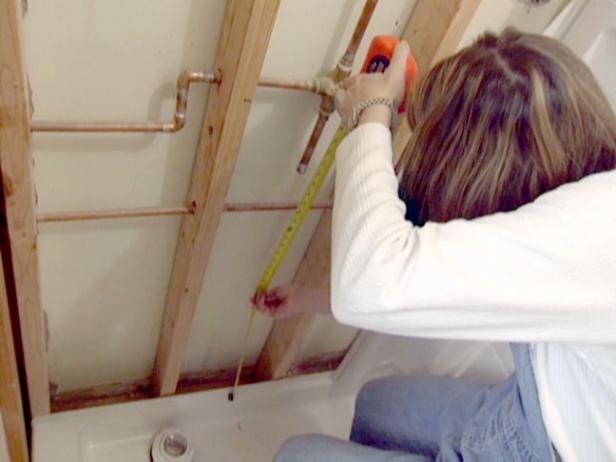

Measure the location of the showerhead pipe and valve (Image 2).

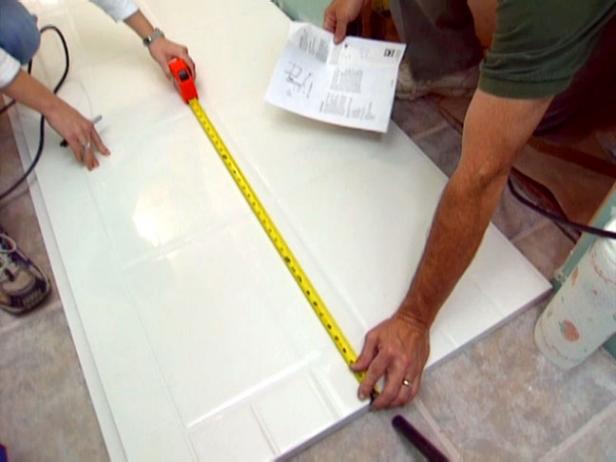

Then transfer the dimensions to the second wall panel (Image 3). Accuracy is essential.
Bore holes for the plumbing outlets in the second wall panel (Image 4). Use a 3/4" Forstner bit for the shower pipe hole. If required, larger holes for the shower handles can be drilled with a hole saw or expanding bit. Place scrap wood blocking under the panel to prevent the drill bit from breaking through and cracking the plastic.

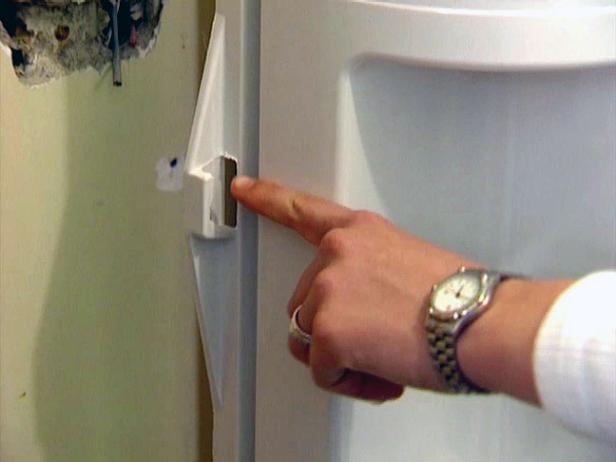

After the holes are drilled, position the second wall in place. This section slides into place and connects with molded plastic fittings (Image 5). Secure it to the wall studs with nails through the nailing flange, as on the first panel.

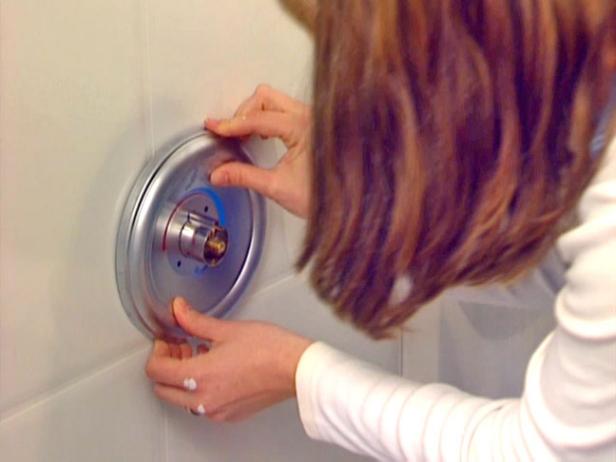

Before closing in the shower, attach the shower head and operating valve (Image 1).
Attach the glass panel retaining channels to the wall sections (Image 2).
Secure the glass inserts in the retaining channels. Add edge trim strips if provided.

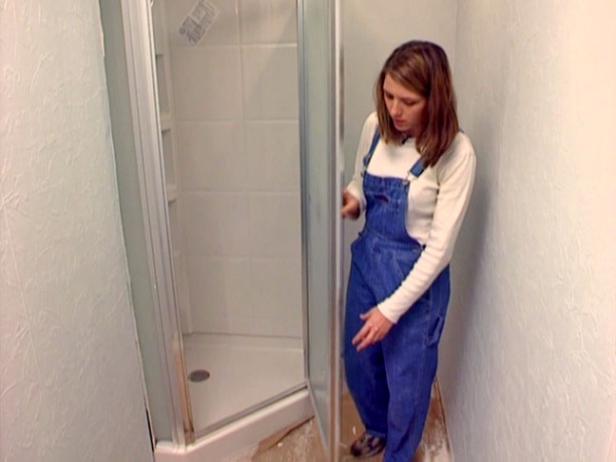

Install the shower door according to the kit instructions (Image 3).
