Step 1

Replacing a Sconce

Replacing a Sconce

Step 1- Turn Off Power Turn off switch and place a piece of tape over it. Then, turn off the power at the breaker box. Remove the bulb from the old fixture.

Photo by: Tomas Espinoza

Tomas Espinoza

Turn Power Off

Turn off light switch, and place a piece of tape over it. Then, turn off the power at the breaker box. Remove the bulb from the old fixture.

Step 2

Replacing a Sconce

Replacing a Sconce

Step 2- Remove Existing Fixture Every fixture is different, so the steps for removal may vary. Usually wall lights are secured with two or more nuts. There may also be small screws on the sides of the light holding it to a mounting plate. Unscrew and set aside if you plan on recycling the old fixture. Unscrew the bracket from the old fixture and set aside. Gently pull fixture back to reveal wires. Remove wire nuts to disconnect. If there’s no current, it’s safe to untwist wires and pull the fixture away from the wall.

Photo by: Tomas Espinoza

Tomas Espinoza

Remove Existing Fixture

Every fixture is different, so the steps for removal may vary. Usually wall lights are secured with two or more nuts. There may also be small screws on the sides of the light holding it to a mounting plate. Unscrew and set aside if you plan on recycling the old fixture. Unscrew the bracket from the old fixture and set aside. Gently pull fixture back to reveal wires. Remove wire nuts (the colored caps) to disconnect. If there's no current, it's safe to untwist wires and pull the fixture away from the wall.

Step 3

Replacing a Sconce

Replacing a Sconce

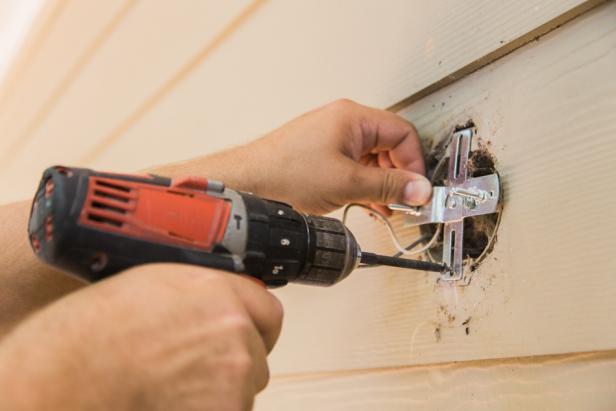

Step 3- Install New Bracket Start by installing the new fixture’s mounting bracket across the electrical box using the screws provided.

Photo by: Tomas Espinoza

Tomas Espinoza

Install New Bracket

Install the new fixture's mounting bracket across the electrical box using the screws provided.

Step 4

Replacing a Sconce

Replacing a Sconce

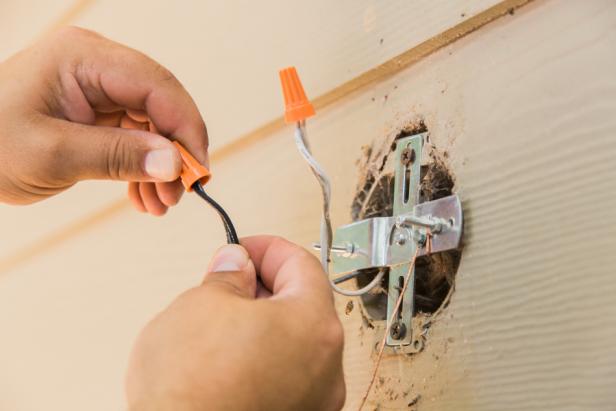

Step 4- Connect New Fixture Wiring Once the mounting bracket is in place you’re ready to connect the new wires. Start by installing the bare copper ground wires from the wall and the light to the green screw on the base mounting plate. Next, join the white wires together with a new wire nut, then the black wires in the same manner. It’s important you have good contact when you join the wires together. Tuck the connected wires and the nuts neatly into the junction box.

Photo by: Tomas Espinoza

Tomas Espinoza

Connect New Wiring

Install the bare copper ground wires from the wall and the light to the green screw on the base mounting plate. Next, join the white wires together with a new wire nut, then the black wires in the same manner. It's important you have good contact when you join the wires together. Tuck the connected wires and the nuts neatly into the junction box.

Step 5

Replacing a Sconce

Replacing a Sconce

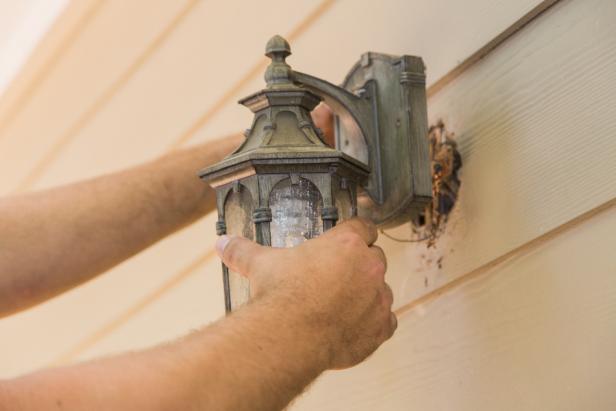

Step 5- Mount & Secure to Wall Next, after carefully placing the wires behind the mounting plate, loosely tighten the fixture to the wall via the mounting bracket, checking that the plate is level. Once adjusted and level, tighten up screws using your hand or screwdriver, as needed.

Photo by: Tomas Espinoza

Tomas Espinoza

Mount and Secure

After carefully placing the wires behind the mounting plate, loosely tighten the fixture to the wall via the mounting bracket, checking that the plate is level. Once adjusted and level, tighten up screws using your hand or screwdriver, as needed.
