Step 1

Determine Height for Chair Rail

Determine Height for Chair Rail

Find Your Chair Rail Style

Watch video of this step.

Originally chair rails were installed to prevent wall damage from seat backs. Today they are mostly a room decoration with architectural proportion now playing the main factor in determining the height and style. In general, chair rail should match the room's existing baseboard and trim.

Step 2

Determine the Height

Watch video of this step.

Chair rail can be placed anywhere from 30 to 36 inches up from the floor. To determine the correct chair rail height, consider two factors: chair height and wall height. According to today’s architectural standards, the average height of side chairs is 31 inches, but most modern dining chairs have seat backs closer to 34 inches, and ornamental dining chairs are often taller. You can slide your own chairs up to the wall and mark where the backs touch, but if you ever replace those chairs this measurement could become moot.

If chair heights don’t matter, simply divide the height of your ceiling by three, then install the rail at the top of the lower third. In a room with standard 8-foot-high ceiling, this will place the chair rail 32 to 35 inches from the floor; In a 10-foot-tall room (120 inches), this measurement equates to 40 inches.

Step 3

Chair Rail Installation Drawing

Chair Rail Installation Drawing

Mark Postion and Determine Molding Lengths

Watch video of this step.

When you've determined your chair rail height, use a tape measure and level to mark a level line around the room. Floors are not always level, especially in older homes, so using a level will ensure that your chair rail will look straight. A laser level (which can be rented), makes this job easier and more accurate.

To determine how many linear feet of chair rail molding you will need, measure the total length of each wall. Try to buy long lengths that will reach from corner to corner or from wall corners to door or window jambs. This will allow you to use square (90-degree) cuts at each end, which are easier than angled miter cuts.

Step 4

Cut and Attach the Chair Rail

Watch video of this step.

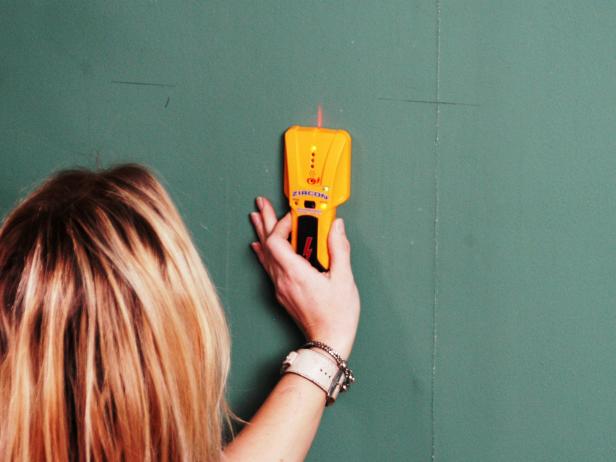

Start by marking all the wall studs. In most cases, wall studs are spaced 16 inches on center, or use an electronic stud finder (image 1) to precisely locate them.

If a wall is longer than the length of a single piece of molding, you’ll need to create an “invisible” lap joint (image 2) by mitering the end of the first piece and the beginning of a second piece with opposite (mating) 45-degree angles. When the pieces are joined, the seam will be less visible than a square-butt joint. Make sure to position this joint over a wall stud so that both ends can be nailed into the wood. Use wood glue and finish nails to secure the joint.

Where two chair rail pieces meet at an inside corner, one piece is cut square and butted into the wall, while the other piece must be coped to closely fit the intersecting molding’s profile (image 3). To make a coping cut, first miter the rail end at a 45-degree angle so that the cut is facing outward. Then use a coping saw to back-cut along the edge of the miter cut, closely following the molding’s profile (image 4). This takes some practice, but when done correctly the second chair rail piece will fit perfectly over the first, hiding the joint.

For outside corners, both intersecting chair rails are mitered to a matching 45-degree angle, then glued and nailed together (image 5). Because wall corners are not always square, some trial-and-error cutting and test-fitting may be necessary to obtain a precise fit. Use scrap pieces to first test each corner then adjust your miter angles as needed.

Begin the installation at an inside corner. Cut your first piece square so that it will butt tightly against the corner. Apply a continuous bead of construction adhesive to the back of the chair rail, then align the bottom of the molding with your level line on the wall.

Use a pneumatic nailer or hammer with 2-1/2 inch finishing nails to attach the chair rail to the wall (image 6). Insert the nails through the thick parts of the molding to prevent the wood from splitting. Place two nails, one high and one low, at each intersection with a wall stud, and be sure the nails hit the stud to firmly secure the rail to the wall.

Begin nailing at one end of the rail and work your way along to bend and straighten any waviness in the molding. Because the wall itself might not be perfectly straight, gaps may occur between the rail and the wall, especially between the studs. These gaps can be filled later.

Step 5

Smooth the Surface and Apply Paint

Watch video of this step.

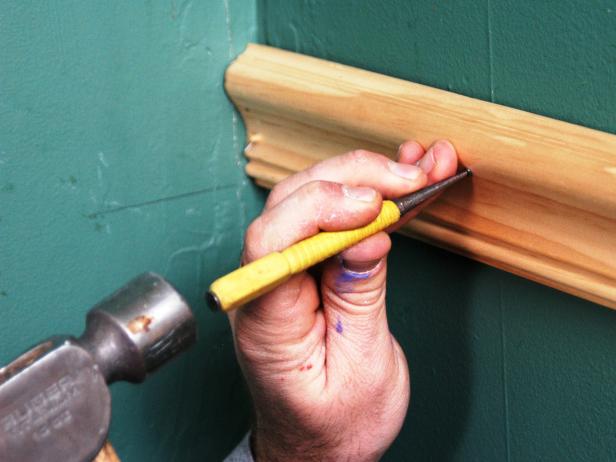

When all of the chair rail molding has been installed, use a hammer and nail set to recess the nail heads (image 1), then patch the nail holes with wood filler. Also fill any gaps between the rail and wall with a paintable adhesive caulk (image 2). Lightly sand and smooth the joints and puttied nail holes

To finish the project, apply your choice of paint to the chair rail to give it a clean, finished look.
