How to Cut Tongue-and-Groove Joints
Tongue-and-groove joints are commonly made on a table saw. But with the right bits, the joints can be made just as easily on a router table.

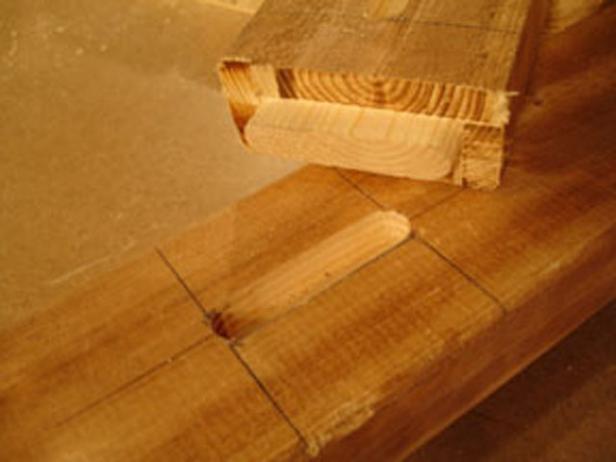

The mortise and tennon joint is a woodworking staple.

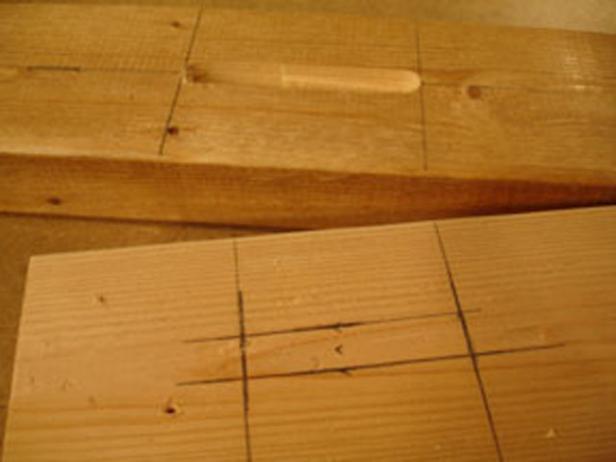

Find the location of the mortise on a piece of 2 x 4. Make the marks with an edge guide or use a jig to hold the sides of the 2 x 4. The jig limits the movement of the router during the cut. Mortise-and-tenon joints are usually cut on a table saw, but they can be made using a router as well. The joints are rounded when using a router, but they are just as strong as squared-off mortises and tenons. Cut the mortise with a plunge router. Make one pass about halfway through the mortise, then plunge all the way on a second pass. Use the same principles for whatever wood is used in any project; just adjust the size of the router bit.

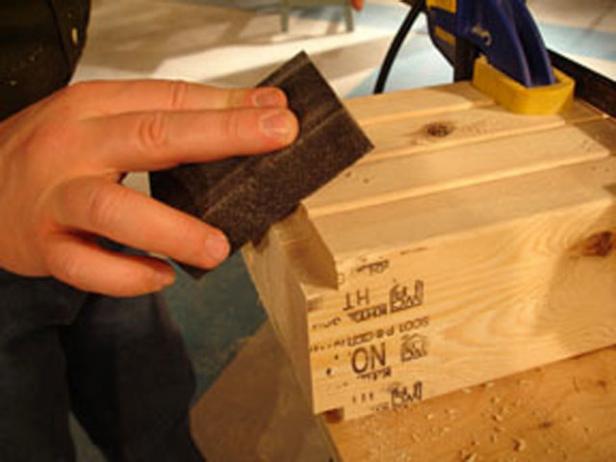

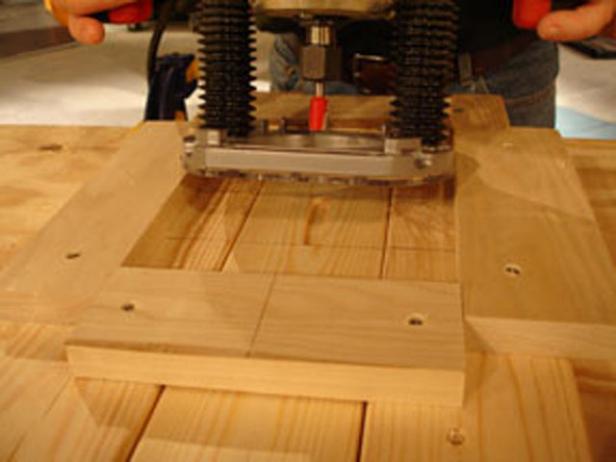

The router doesn’t have enough support to cut one tenon at a time. So line up several boards, clamp them together, and cut several tenons at once. Sand the edges of the boards.

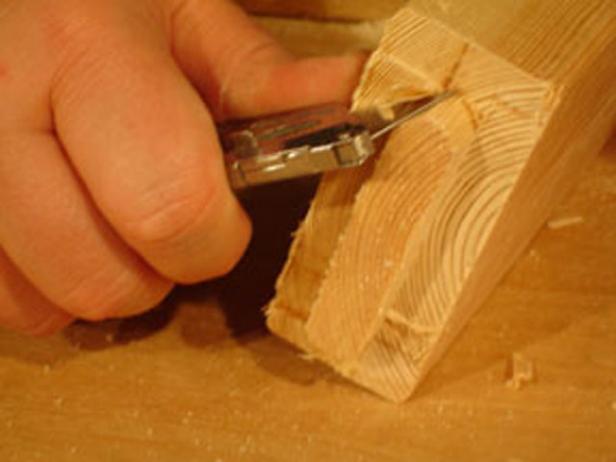

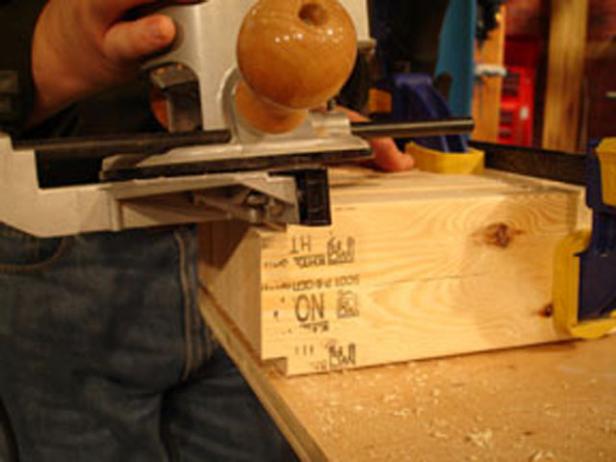

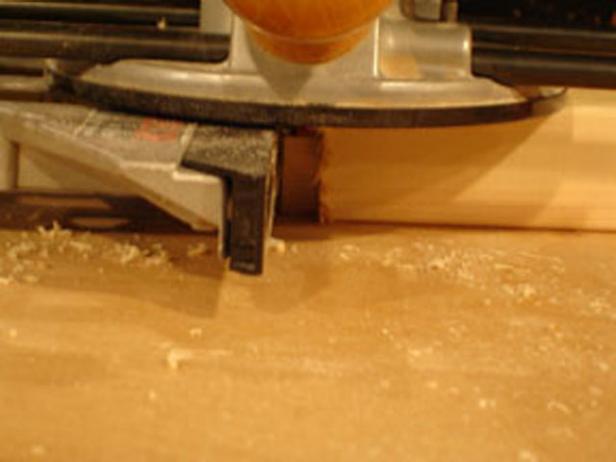

To cut the shoulders for the tenon, place a board flat on the work table and clamp it down. Run the router across the board. Turn the board over, clamp it down again, and cut the other shoulder. Sand again, if necessary. Round off the corners of the tenon with a utility knife.
