Introduction

Cut Four Pieces

Start by cutting four pieces of 1/4-inch maple veneered MDF to 24 by 12-inches to form the top, bottom and shelves. Cut two pieces of 3/4-inch maple veneered MDF to 28 by 12-inches for the sides.

Step 1

Cut a Rabbet Groove

Using a router or a table saw, cut a 1-inch rabbet groove into one long side of each piece.

Step 2

carterCAN-2438609-HCCAN-109_Cabinet2_A

Cut Grooves

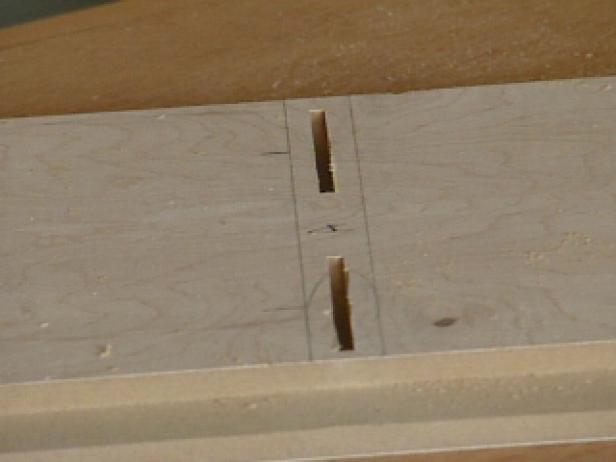

Starting with the two side pieces, use a biscuit joiner to cut two grooves 3/8-inch from the top of the pieces. They should be 1/3 of the way in from both edges. Repeat this step 1/3 of the way down, 2/3 of the way down and once more 3/8-inch from the bottom of the pieces.

Step 3

carterCAN-2438608-HCCAN-109_Cabinet2_B

Cut Two Biscuit Grooves

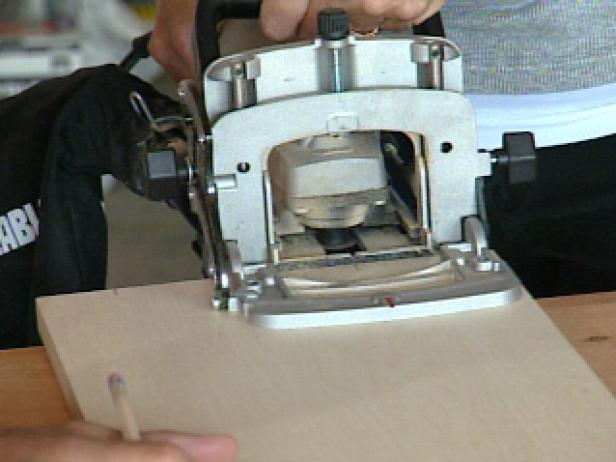

Lay the timber flat on a level table or workbench. Next, cut two biscuit grooves into the sides of the top piece, bottom piece and shelves. Cut grooves both 3/8-inch from the top and 1/3 of the way in from the edges. Make sure all the pieces are cut to the proper dimensions and are close at hand before starting the gluing process.

Step 4

Apply the Glue

Apply glue inside the two top biscuit grooves on one side piece and the top piece. Insert a biscuit into the side piece and attach the top piece, making sure the rabbet grooves are both facing in and to the back. Place glue on top of the biscuits. Repeat the process to connect the two shelves and the bottom piece, again making sure the rabbet grooves are facing in and to the back.

Step 5

carterCAN-2438614-HCCAN-109_Cabinet2_C

Add Glue and Insert the Biscuits

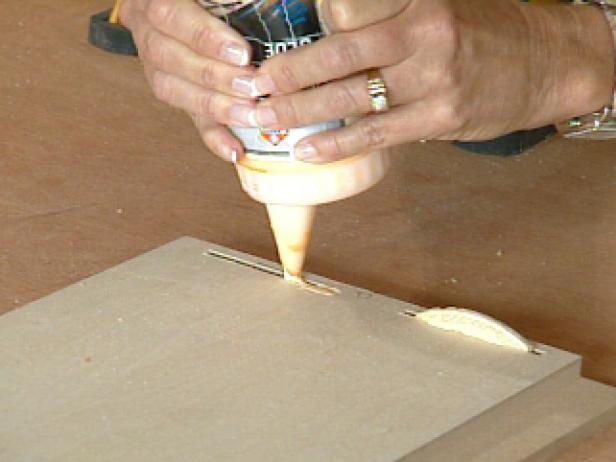

Take the last side piece and fill all the biscuit grooves with glue, then insert a biscuit into the grooves. Place glue on top of the biscuits.

Step 6

Fill the Remaining Biscuit Grooves

Fill the remaining empty biscuit grooves on the top, bottom and shelves with glue. Attach the last side piece, again making sure the rabbet groove is facing in and to the back.

Step 7

carterCAN-2438613-HCCAN-109_Cabinet2_D

Hold the Piece Together

Secure clamps to hold the piece together and let it dry. Wipe off any excess glue with a damp towel.

Step 8

Insert the Backing

After the piece is dry, insert the backing into the rabbet grooves so it fits securely, leaving 3/4-inch at the back to hang the shelf.

Step 9

carterCAN-2438612-HCCAN-109_Cabinet2_E

Secure the Backing

Cut the piece of maple for the backing to 27 by 23-inches. Slide it into place inside the rabbet groove, tapping it into place with a mallet if necessary. Use a stapler to secure the backing into place, along the outsides edges and the areas that meet the shelves on the other side.

Step 10

Staple Maple Strips

Staple 1/4-inch cutoff strips of maple around the perimeter of the backing to ensure the cabinet is secure and square. The strips also provide added stability when the cabinets are attached to the wall, giving the countersink screw something to grab onto.

Step 11

Make the Trim

For the trim, start by cutting down pieces of the 1/2 by 1-inch walnut to 28-inch long for the side pieces. Cut four pieces of the 1/2 by 1-inch walnut to 24-inches long for the top, bottom and shelf pieces.

Step 12

Miter the Edges

Miter the edges to a 22.5-degree angle on the top, bottom and side pieces so they fit together nicely. Leave the two shelf pieces with a flat edge.

Step 13

carterCAN-2438611-HCCAN-109_Cabinet2_F

Attach the Trim

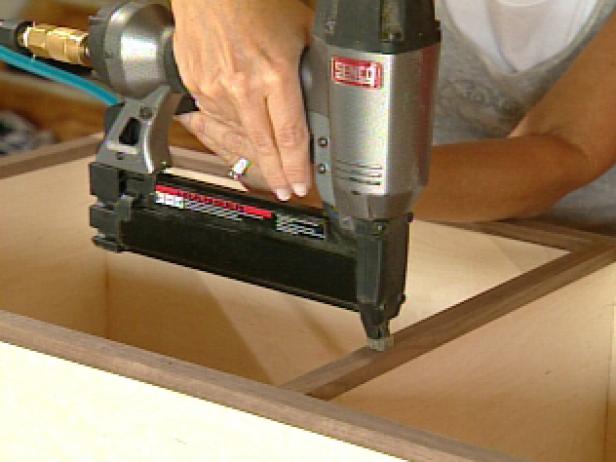

Glue and nail the walnut trim onto the edges of the unit. Sand down the wood with an orbital sander for a smoother look and feel.
