Introduction

Want to celebrate your local landscape? What better way than create a lively topography headboard. This simple-to-build headboard is unique to your location and color palette. We chose to recreate Lake Hamilton.

Step 1

DBLG8030081_s4x3

Photo By: Tony Flora/ AP Images ©2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Tony Flora/ AP Images, 2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

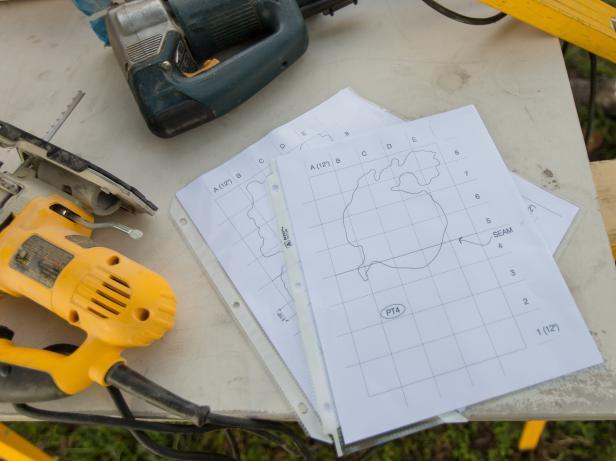

Get Started

Start by creating a grided template of each topography elevation. Topography maps are available at most outdoor stores and downloadable online. By creating a scalable template, you transfer the elevation lines scaled to your wall and bed. For instance, if you have a queen-sized bed you could take 100' of topography and scale it down so that the outer most points are 60" wide. If you have access to a large format printer, you can also print them at full size to trace right on the plywood. Depending on your topography, you may choose to use the 1', 5', or 10' elevation lines to keep the number of plywood layers down to 3 or 4.

Step 2

DBLG8030085_s4x3

Photo By: Tony Flora/ AP Images ©2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Tony Flora/ AP Images, 2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Draw the Pattern

Transfer the grid intersection points for the first layer to a piece of plywood and then free hand the curve in between the points.

Step 3

DBLG8030086_s4x3

Photo By: Tony Flora/ AP Images ©2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Tony Flora/ AP Images, 2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

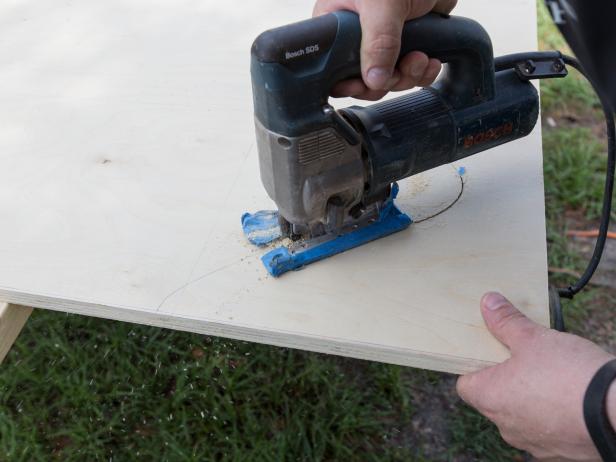

Cut the Layers

Next, cut the layer out using a jigsaw. Be sure the piece is supported by saw horses or a helper so the wood doesn't break near the end of the cut.

Step 4

DBLG8030088_s4x3

Photo By: Tony Flora/ AP Images ©2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Tony Flora/ AP Images, 2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Sand the Edges

Once the layers are cutout, lightly sand the edges to remove any splintering wood.

Step 5

DBLG8030089_s4x3

Photo By: Tony Flora/ AP Images ©2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Tony Flora/ AP Images, 2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

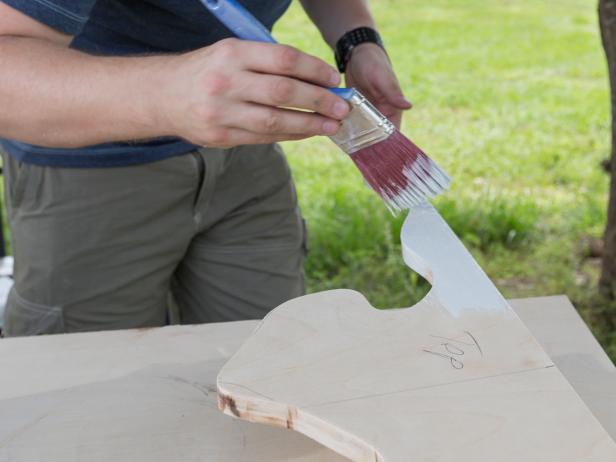

Prime for Paint

Prime the front and sides of all pieces with latex primer and then paint with varying colors.

Step 6

DBLG8030090_s4x3

Photo By: Tony Flora/ AP Images ©2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Tony Flora/ AP Images, 2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Apply the Base Coat

Paint the base layer color directly on the wall, large enough to be covered by the base layer of plywood.

Step 7

DBLG8030091_s4x3

Photo By: Tony Flora/ AP Images ©2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Tony Flora/ AP Images, 2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

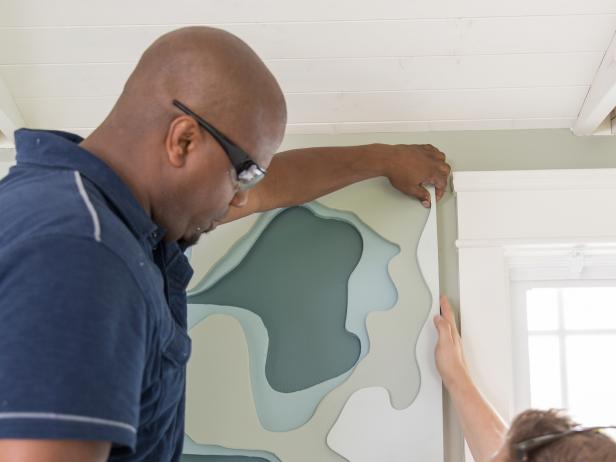

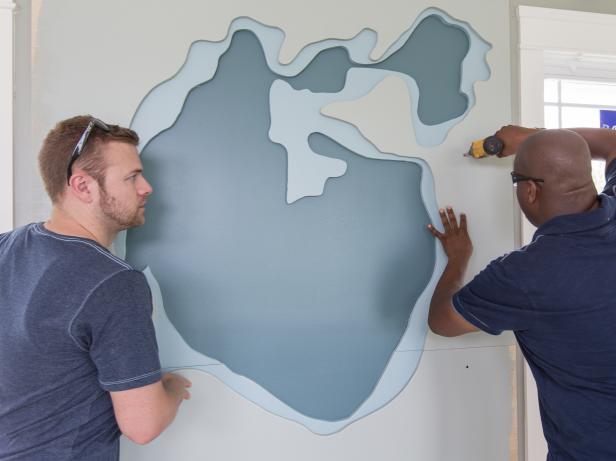

Attach Layers

Mount each layer on top of one another with drywall screws. Make sure the base layer is attached directly into wall studs and each screw is covered by the next layer.

Step 8

DBLG8030093_s4x3

Photo By: Tony Flora/ AP Images ©2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Tony Flora/ AP Images, 2014, DIY Network/Scripps Networks, LLC. All Rights Reserved.

Finish It Up

Mount the last layer with 18ga finish nails and touch up any paint if necessary.
