Step 1

cut frame for cabinet

cut frame for cabinet

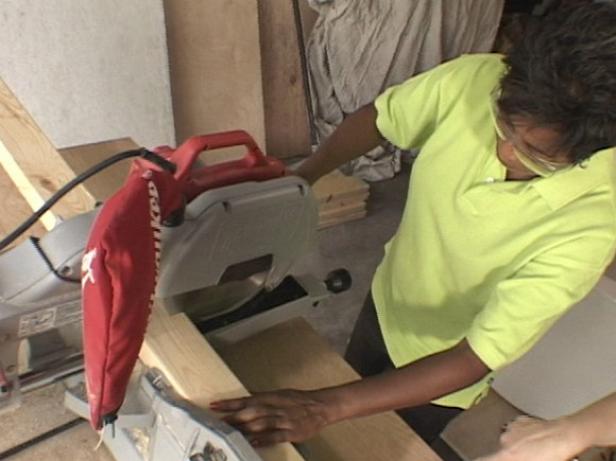

Cut the Frame

The frame for the cabinet consists of 2x4s that are measured and marked at the determined length, then cut on a compound miter saw.

Step 2

Mark and Cut the Plywood

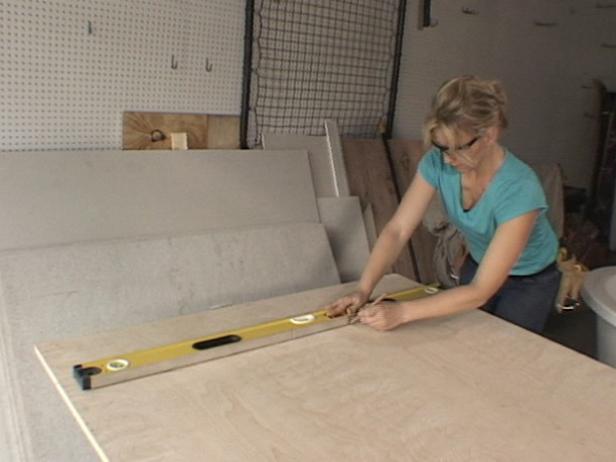

Mark the width of the side panels on 3/4" plywood and draw a line with a straight edge (Image 2).

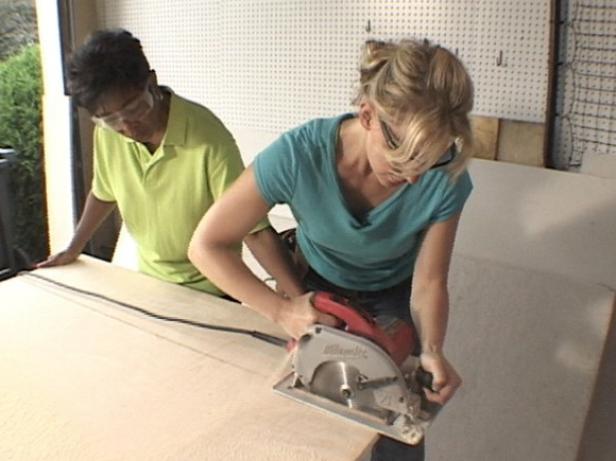

Cut the plywood with a corded circular saw (Image 1). The thickness of the wood makes this too big of a job for the cordless saw.

The panels can then be cut to height on the miter saw.

Step 3

determine center point of cabinet on wall

determine center point of cabinet on wall

Attach the End Studs

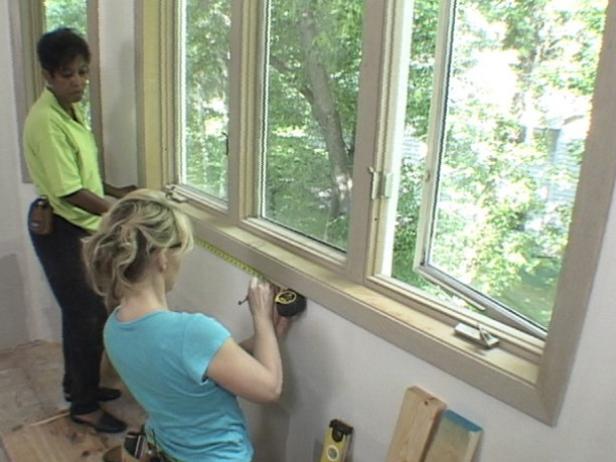

Determine the center point of the cabinet on the wall, then mark the end panel locations. Use a level to draw a straight line, then attach the end studs to the wall.

Step 4

Secure the Cabinet

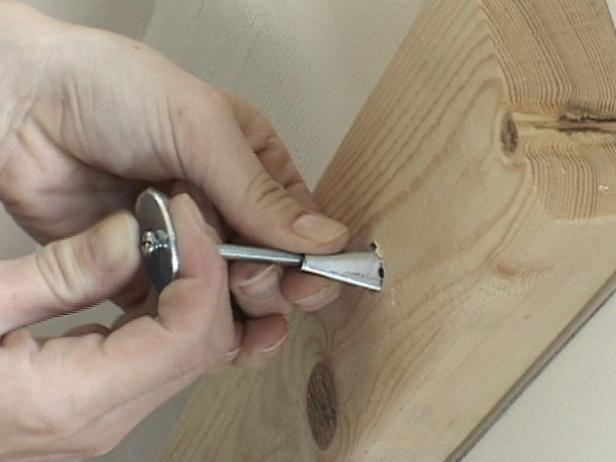

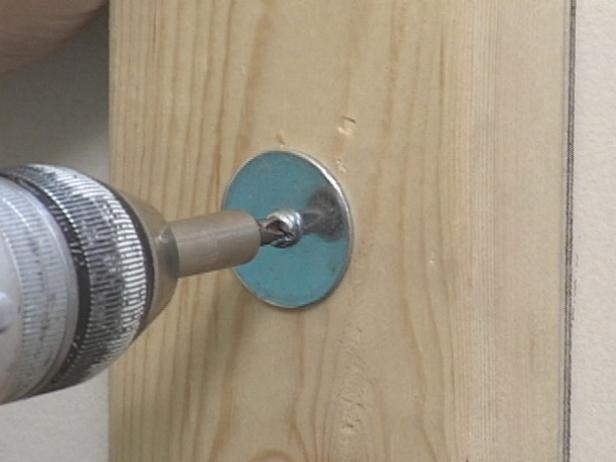

Use toggle bolts for added support where there are no studs to secure the cabinet. Pre-drill a hole and slide in the bolt (Image 1). Tap it back with a hammer and tighten with a screw gun (Image 2).
