Introduction

Inspect Attic

Determine your situation. Most installations of an attic ladder are a replacement of an existing ladder. This instruction set focuses on replacement.

Step 1

Photo by: Wade Works Creative

Wade Works Creative

Prep Existing Opening

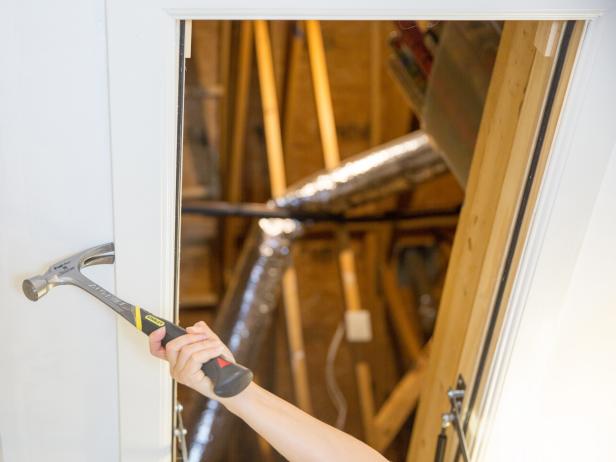

Remove trim surrounding existing opening using a hammer. Attach temporary support boards to keep the ladder secure for removal.

Step 2

Photo by: Wade Works Creative

Wade Works Creative

Remove Existing Attic Stairs

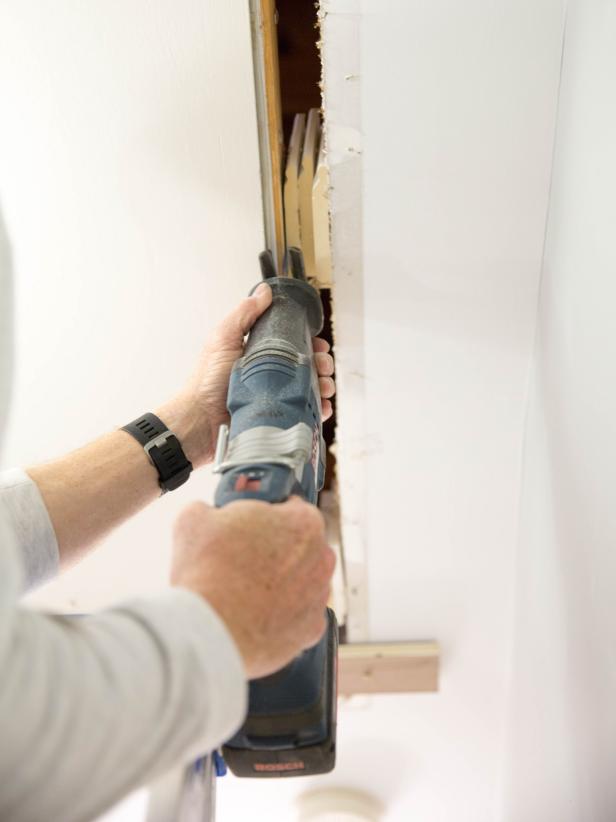

Remove existing attic stairs with a reciprocating saw.

Pro Tip

Tie ladder sections together to keep them from separating during removal.

Step 3

Photo by: Wade Works Creative

Wade Works Creative

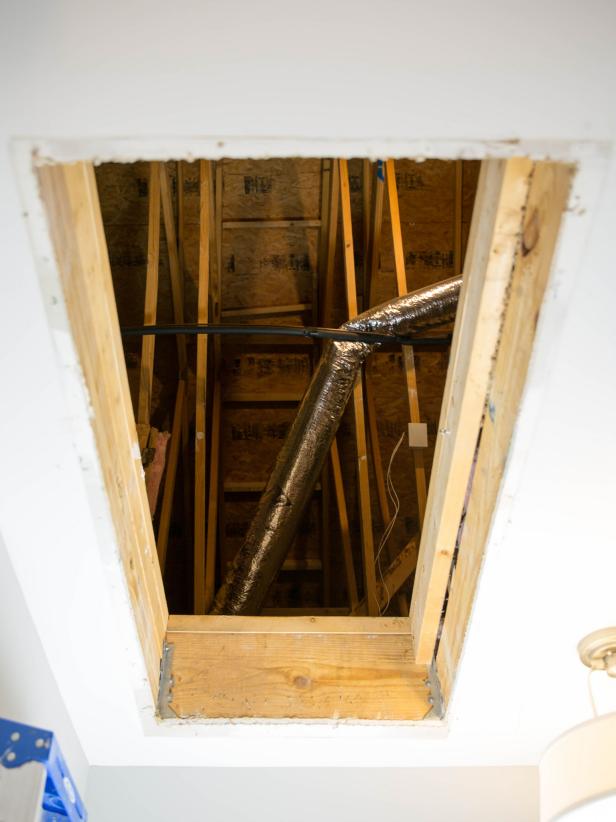

Inspect Opening

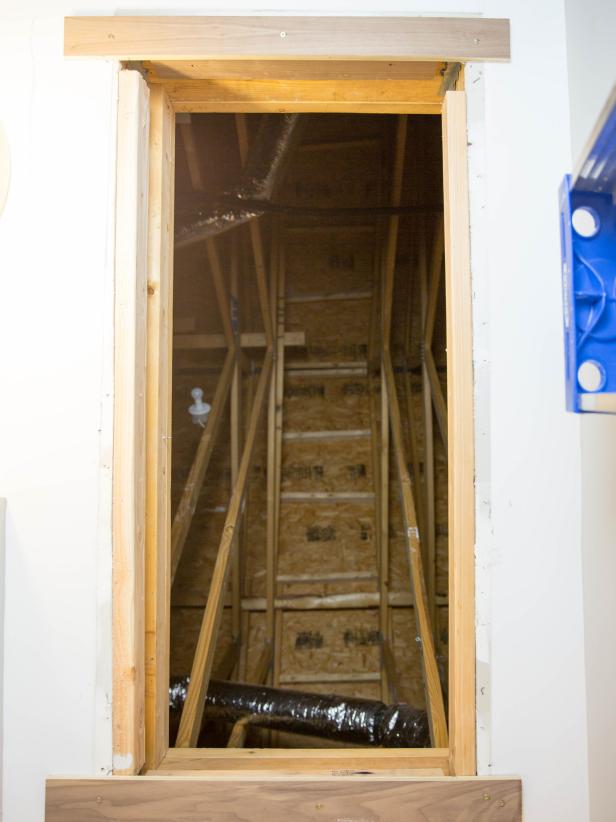

Inspect opening ensuring all fasteners and previous blocking are removed. Make sure the opening meets a minimum structural requirement of a 2x6 header and joist system with a rough opening larger than the attic stairs.

Pro Tip

It is good practice to add two extra 3" deck screws or 16d nails to each side of the headers (short sides of the opening) for reinforcement.

Step 4

Attach Temporary Support Boards

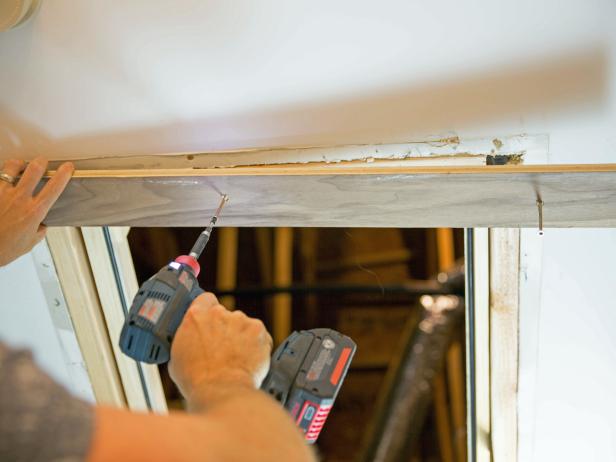

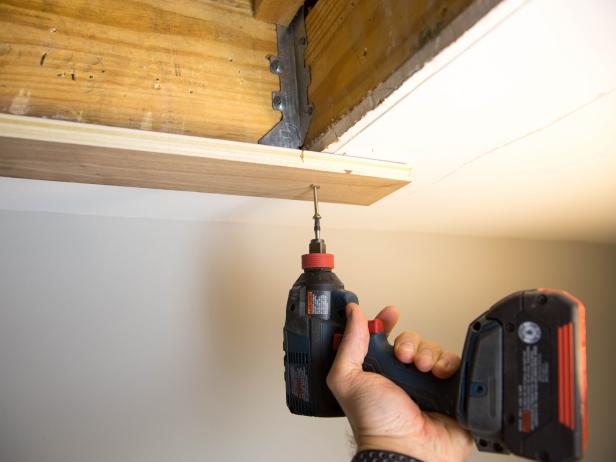

Attach temporary support boards at least 4 inches wider than opening using a drill and 3" deck screws. Fasten the boards to a dimensional spread to hold the frame of the new ladder on the short side without impeding the ability to open the door. The temporary supports need to be placed centered with respect to the long dimension of the opening. They will hold the stair in place while it is fastened to the joists and headers.

Step 5

Photo by: Wade Works Creative

Wade Works Creative

Secure Framing

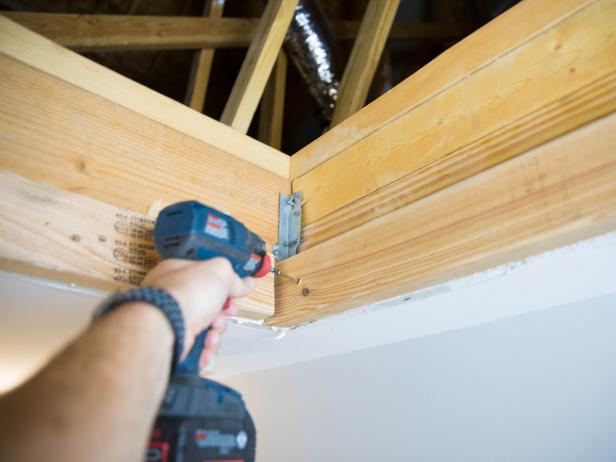

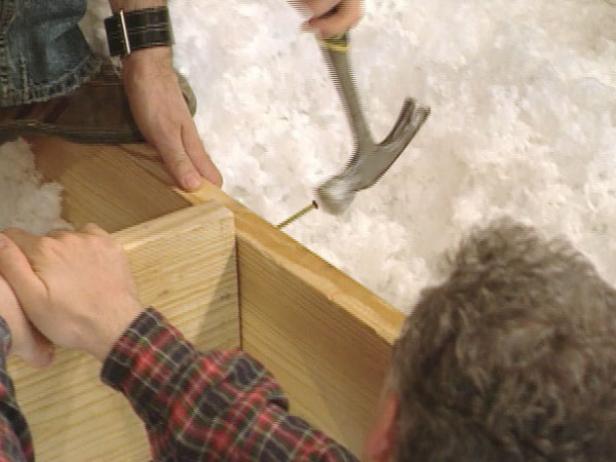

If the ladder is more than 1-1/2" smaller in any dimension than the rough opening, secure additional framing in increments of 2x4s (1-1/2" thick) and 1x4s (3/4" thick) with 3" deck screws or 16d nails at 12" on center spacing. The goal is to get less than a 3/4" gap to fill with shims.

Step 6

Photo by: Wade Works Creative

Wade Works Creative

Attach Rope

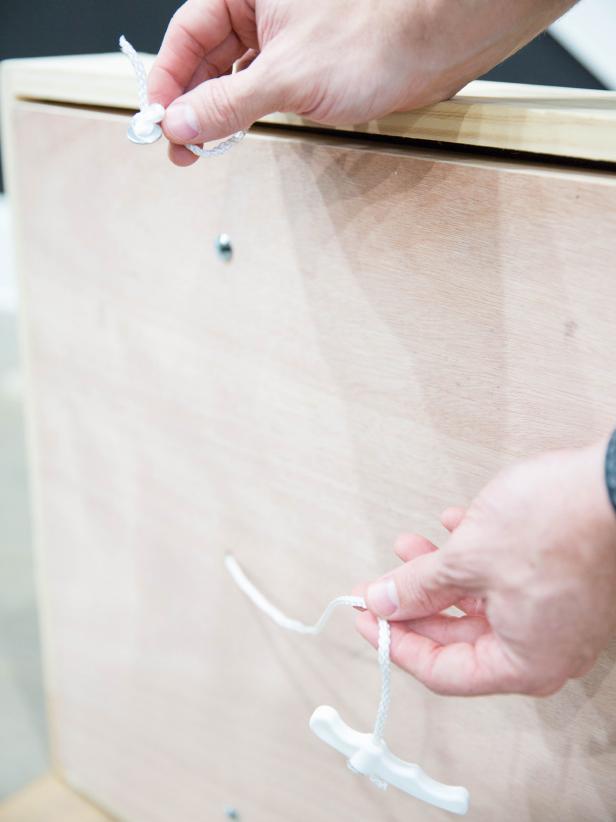

Install the pull rope on the ladder assembly by threading the rope through the hole in the door. Then, thread the washer (included in the attic ladder kit) onto the rope on the upper side of the door. Pull the rope through to your desired length so it is long enough to reach from the floor, but not too long to walk underneath when the ladder is in the closed position. Tie a knot on the upper side of the washer. The washer prevents the knot from slipping back through the hole when the rope is pulled.

Step 7

Photo by: Wade Works Creative

Wade Works Creative

Position Ladder

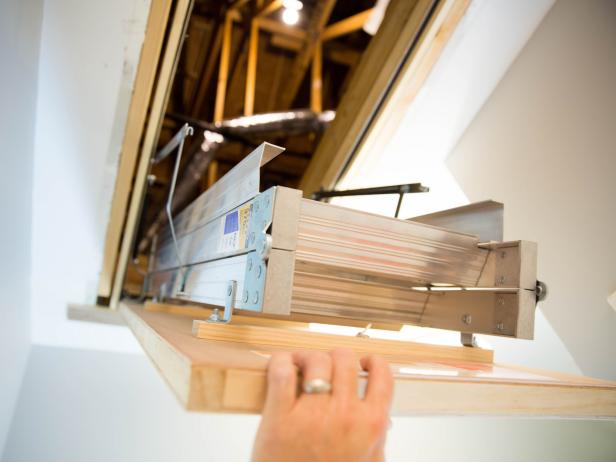

Leading with the hinge side of the ladder, lift the ladder assembly up into the opening using the temporary support boards as a guide. Ensure the hinge side is on the correct end. You will need two people for this step. One person should be in the attic, and one person should be on the lower floor.

Step 8

Photo by: Wade Works Creative

Wade Works Creative

Pull Ladder Up

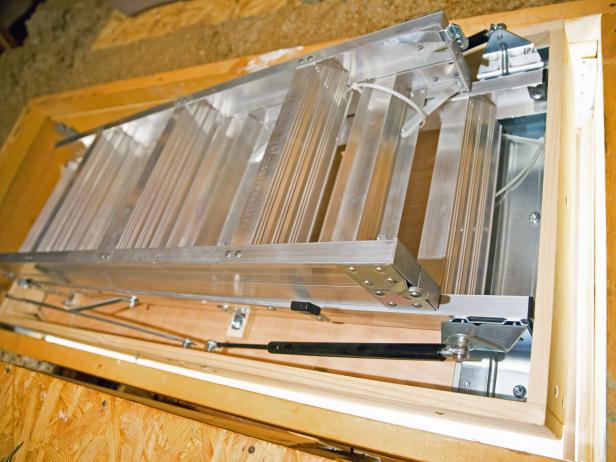

Pull the ladder up over the opening, resting it on the temporary supports. Center the ladder width wise, but rest the hinge side of the ladder against the header support. Ensure the temporary support boards are not preventing the plywood door from opening.

Step 9

Photo by: Wade Works Creative

Wade Works Creative

Secure Ladder

Secure ladder with two 3" deck screws on the hinge side to hold it in place.

Step 10

Photo by: Wade Works Creative

Wade Works Creative

Open Ladder

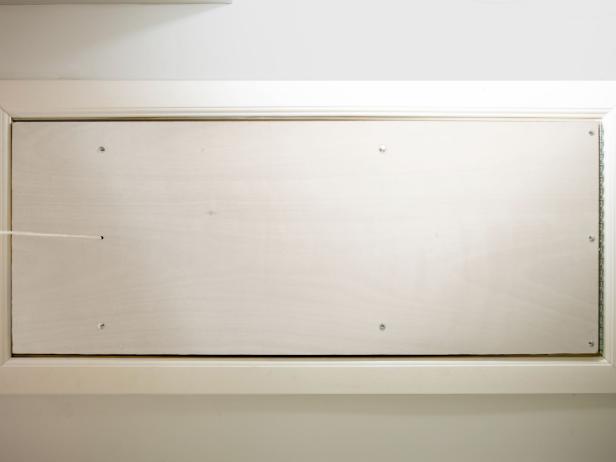

Open the ladder door by pulling straight down on the rope.

Step 11

Square Corners

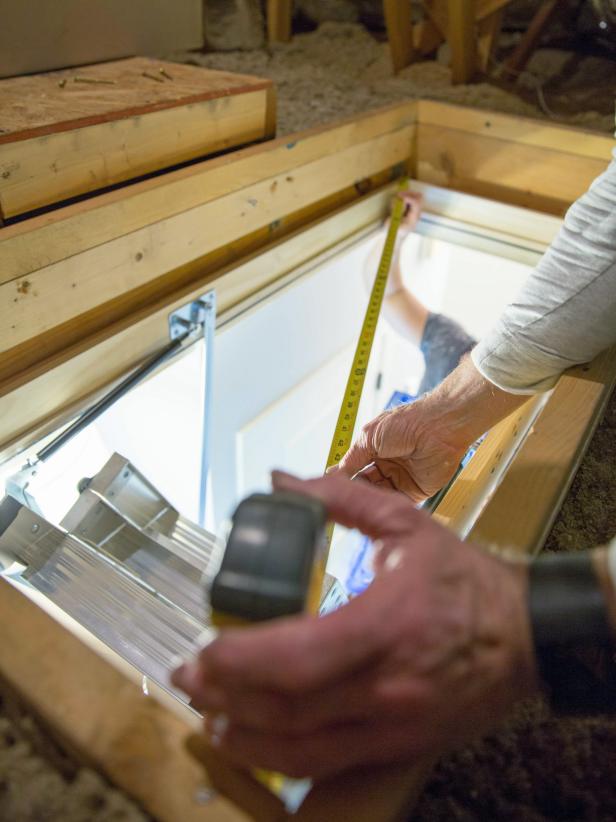

Measure diagonally to make sure the frame has square corners (Image 1). If the diagonal measurements are different, place shims on the sides or corners so the two diagonal dimensions are equal (Image 2).

Step 12

Photo by: Wade Works Creative

Wade Works Creative

Secure Ladder

Attach two screws to hold the ladder on the end opposite the hinge.

Step 13

Pre-Drill Header Side

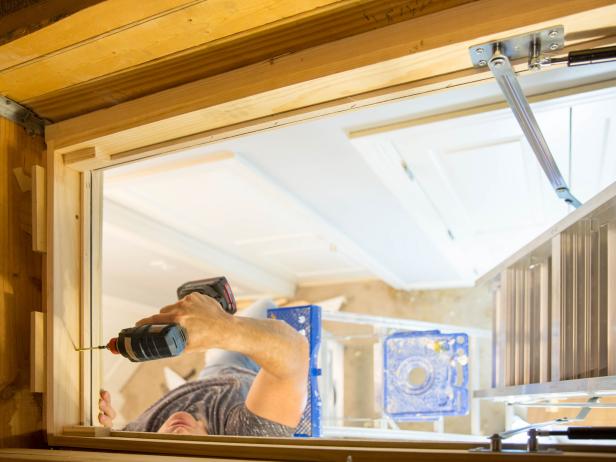

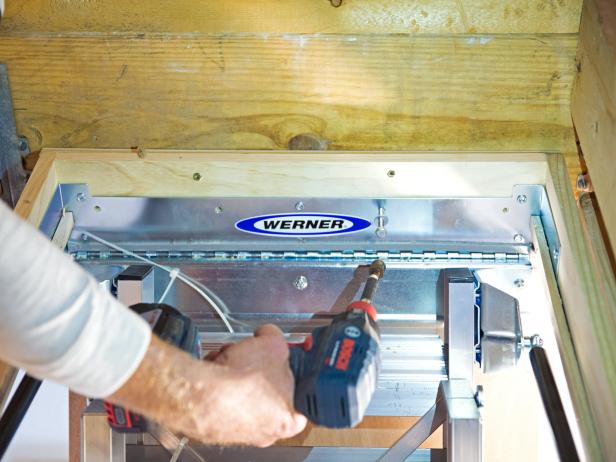

Once ladder is positioned correctly, pre-drill and insert four 1/4" x 3" hex lag bolts into the header side (Image 1). If needed, add additional shims along the midline of the long sides of the ladder (Image 2).

Step 14

Photo by: Wade Works Creative

Wade Works Creative

Insert Lag Bolts

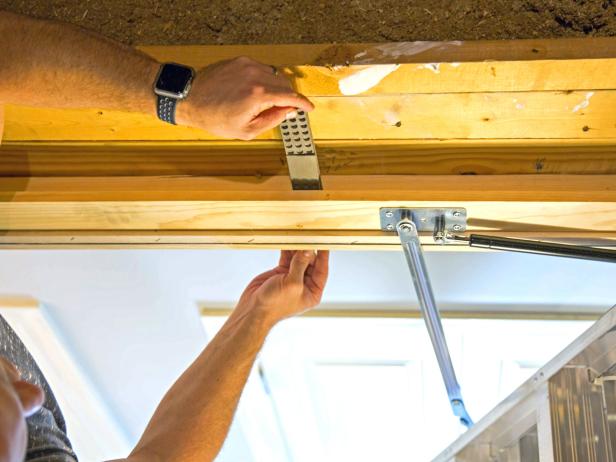

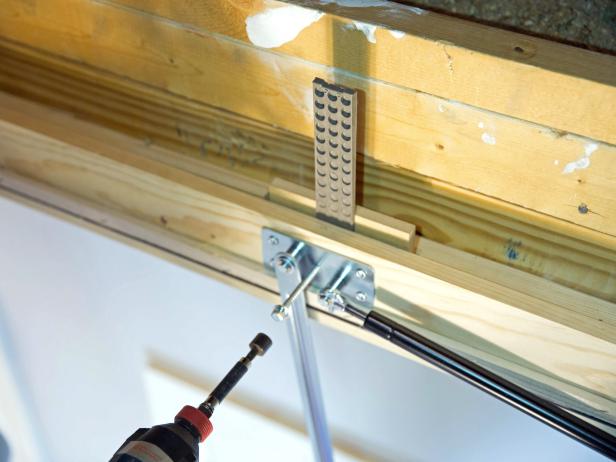

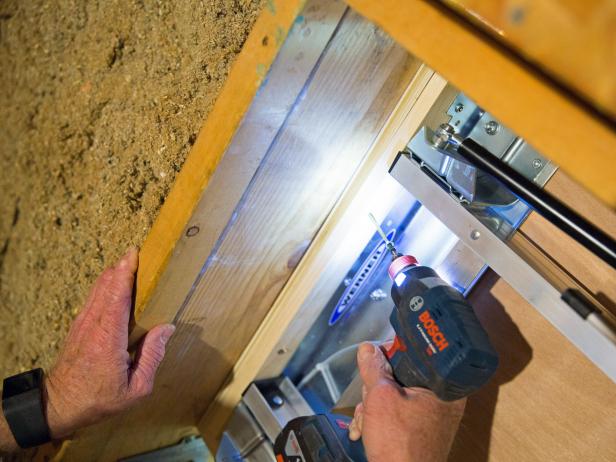

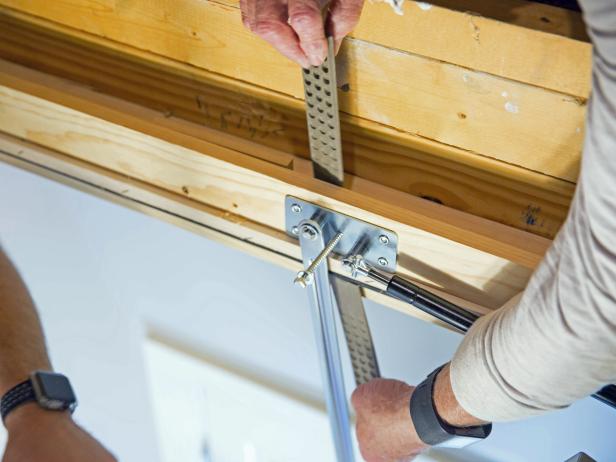

Pre-drill and insert two 1/4" x 3" hex lag bolts on either long side (four total) of the ladder into the side supports.

Step 15

Photo by: Wade Works Creative

Wade Works Creative

Remove Support Boards

Remove the temporary support boards.

Step 16

Set Height

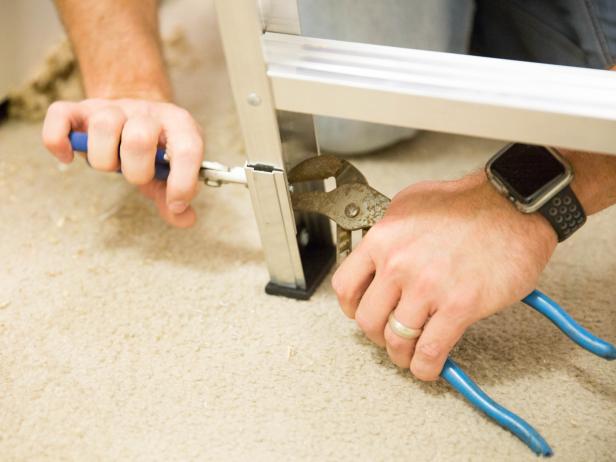

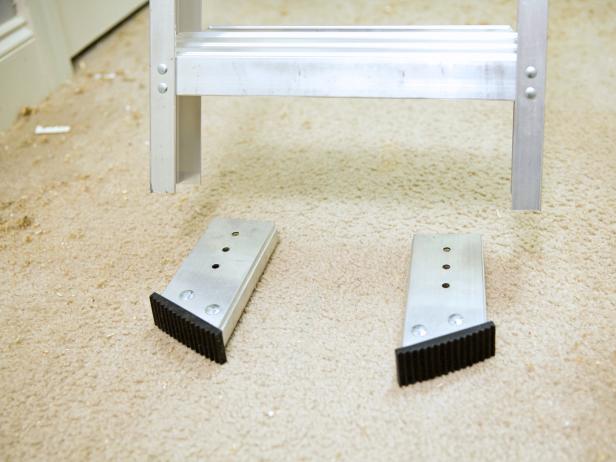

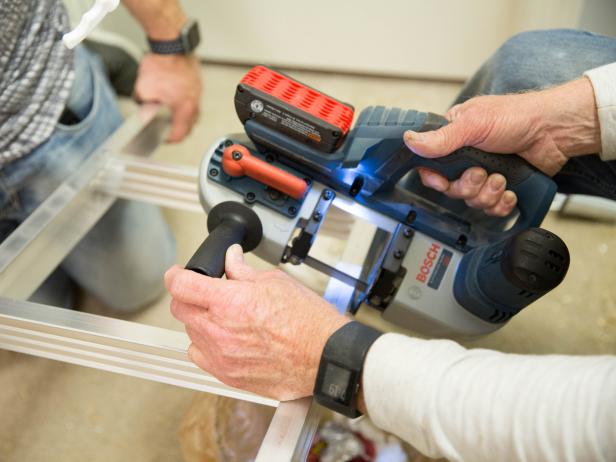

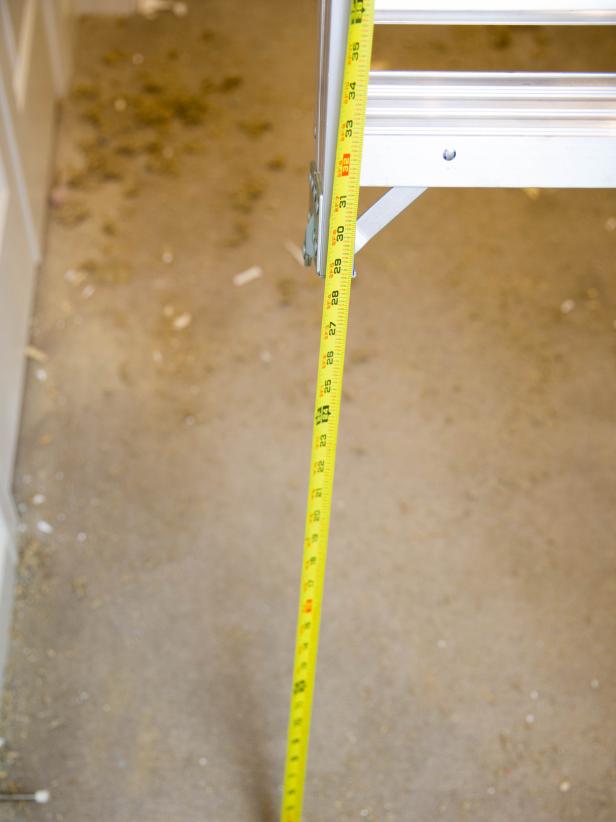

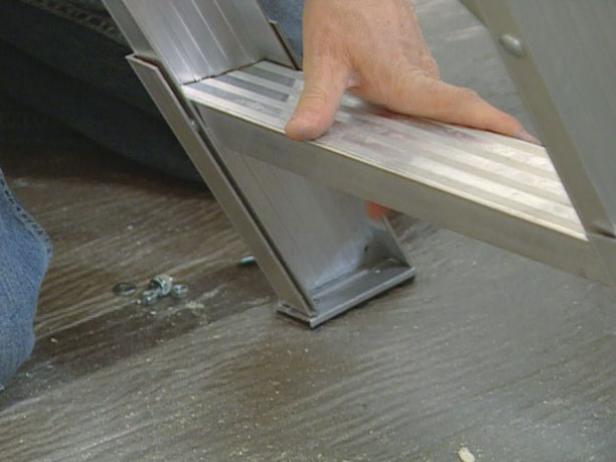

If the ladder legs are too long, fold the ladder at the lowest joint and measure from the hinge to the floor (Image 1). Unfold the lowest section of the ladder, and cut the straight legs just enough for the feet to sit correctly on the floor. Use a hacksaw if the ladder is metal, and a wood saw if the ladder is wood (Images 2 and 3). Re-attach the feet using wrenches (Image 4).

Step 17

Photo by: Wade Works Creative

Wade Works Creative

Add Finishing Touches

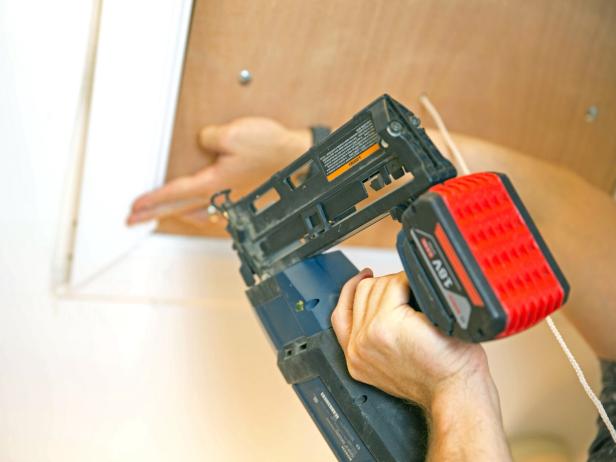

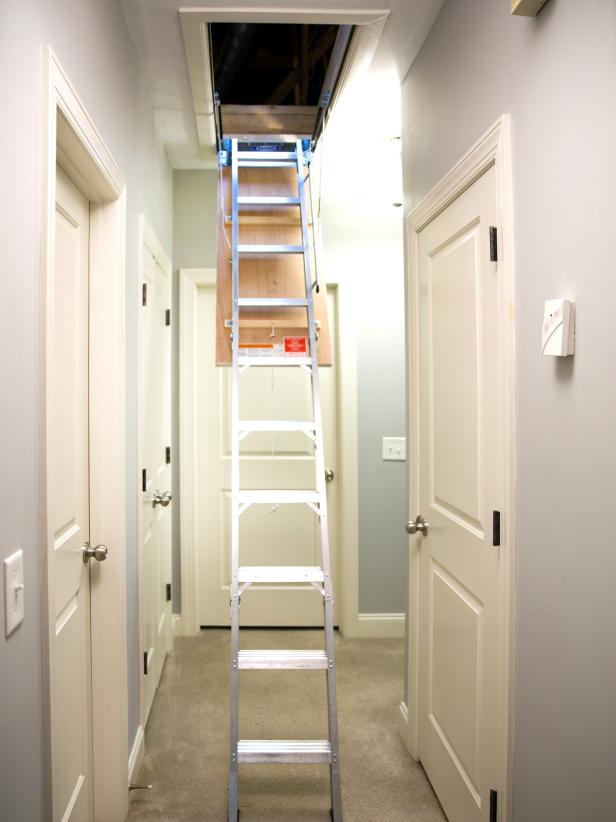

Re-install the trim with a nailer and finish nails, and paint the door to match.
