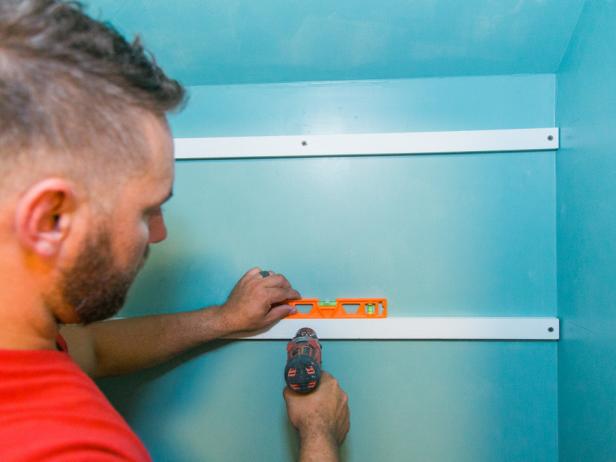

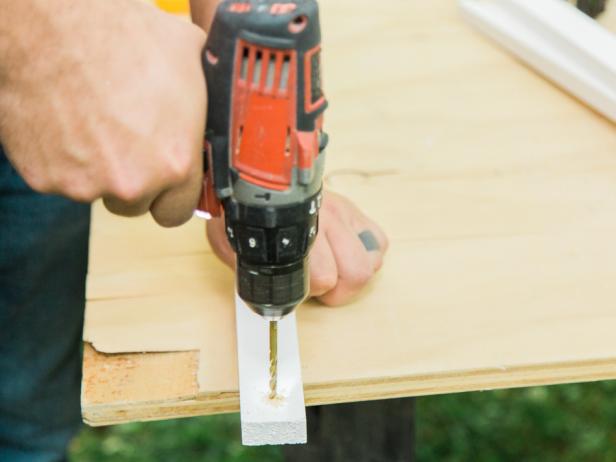

Measure the depth and width of the space for the 1x2 ledge dimensions (Image 1). Measure, mark and cut the primed 1x2. Next, drill pilot holes in the 1x2 boards, using a larger bit to prep them for countersinking the screws (Image 2). Make sure each ledge is level on the wall, and install into the studs using 2 ½" wood or drywall screws (Image 3).

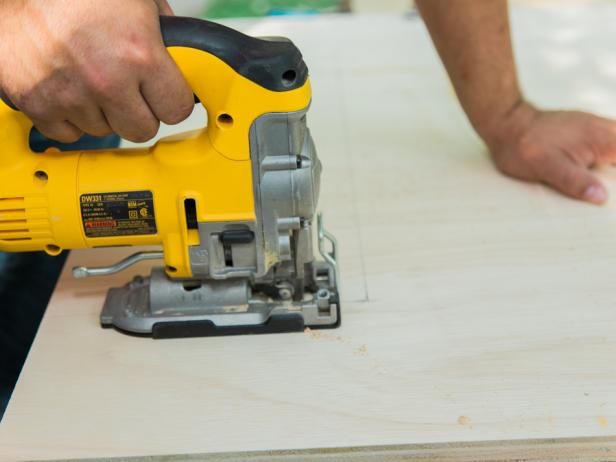

Have your local home improvement cut the shelves for you. Customize the shelves using a jigsaw. We created a U-shape configuration, which allowed for shallow storage along each side of the pantry and gave it an overall custom look (Image 1). Apply an interior semi-gloss paint on both sides of each shelf, and allow to dry (Image 2).
Allow for at least a 5-inch depth on shelves to store canned goods.

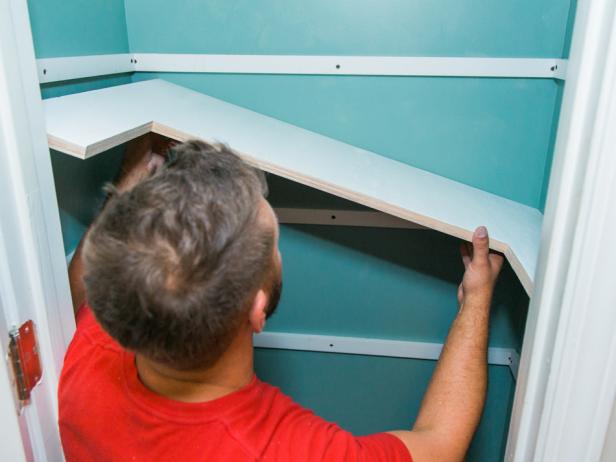

Step 4- Install Plywood Shelves Next, slide each shelf onto its 1x2 ledge. Once ALL the shelves are in place, then you can secure them to the ledges with nails or wood screws. Why wait? You may need to lift the shelf above up a bit to put the one below into place or move them in and out as you work through steps below, depending on your pantry design.
Slide each shelf onto its 1x2 ledge. Once all shelves are in place, secure them to the ledges with nails or wood screws.

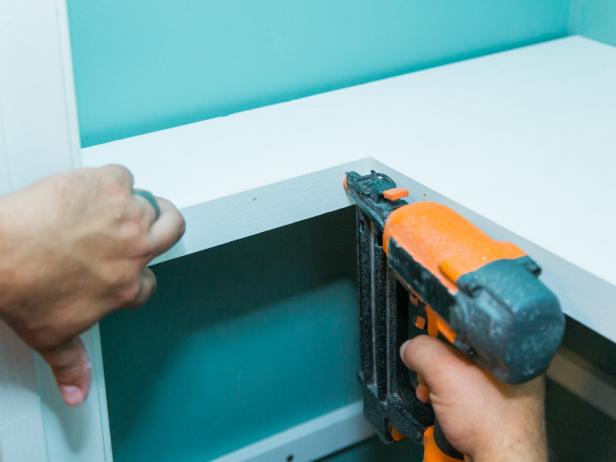

Measure the exposed front edges of the shelves, and cut a 1-1/2" lattice strip to the desired length for each shelf. Secure strips to these edges using a nail gun.

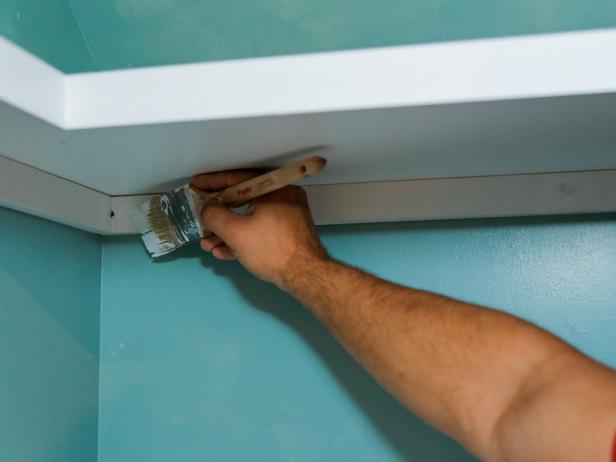

Fill any nail holes with painter's putty or wood filler, then touch up with paint as needed. Let paint dry a full 24 hours before placing anything on the shelves.
