Introduction

Cut the Balusters

Procure a baluster to match the staircase. In this project, we used 1" x 2" clear fir boards. Cut the balusters to length to match the originals.

Step 1

cut ends of balusters to fit joinery of staircase

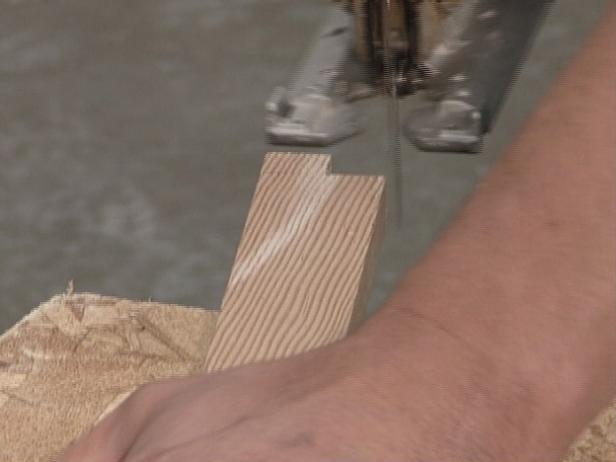

Fit the Balusters

Cut the ends of the balusters to fit the type of staircase joinery you have. The balusters in this project have a tongue that fit into the slotted edge of the stair treads. This is a simple mortise and tenon type of wood joinery.

Step 2

Determine the Radius

Look at the existing newel post base as a model to make a new one. Determine the radius by carefully measuring the existing one on the floor.

Step 3

new newel post is solid wood

Create Two Radius Shapes

The existing newel post in this project was made of four boards assembled into long box shape. That hollow box fits over a 4-inch by 4-inch post to create a solid base for the newel post. Your newel post may be solid and require different joinery methods. For a hollow type newel post base, cut thick plywood boards into two radius shapes to match the curve of the existing newel post base.

Step 4

Assemble the Radius Shapes

Assemble the two radius shapes, matching the height of the existing newel post.

Step 5

Position the Post

Cut a square hole in the top radius shaped plywood to fit a short 4-inch by 3-inch post. Check the position of the existing newel post and make sure they match. Insert the post into the new base and plumb the post, making its position on the bottom radius shaped plywood.

Step 6

Fasten the Entire Assembly

Drive screws in from the bottom of the bottom radius shaped plywood into the bottom of the 4-inch by 4-inch post. Position the entire assembly against the existing staircase, then fasten the assembly to the floor with screws.

Step 7

Cut the Tread

To fit the bottom tread on the newel post base, position the newly cut tread in place. Cut the tread so it fits halfway around the 4x4 post on the new newel post base. It doesn't have to be perfect, since the finished newel post will slide over the top of the 4x4 and cover where the 4x4 and the tread meet.

Step 8

cut tread for back portion of base

Cut the Tread for the Back Portion of the Base

Cut another short (return) section of tread for the back portion of the newel post base notching around the back half of the newel post.

Step 9

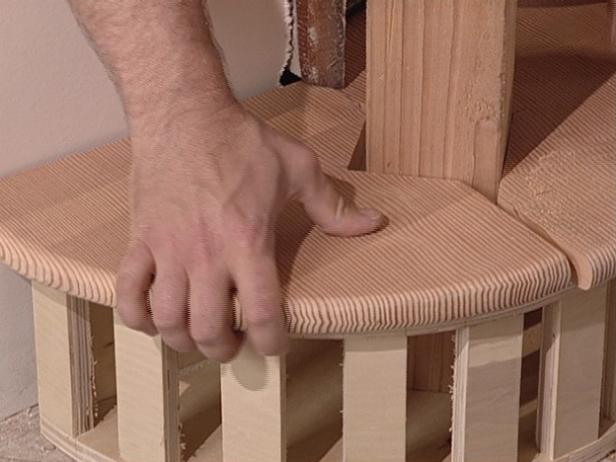

Secure the Biscuits

Use the plate joiner on edges where the two tread sections meet. Insert biscuits and secure them using bar clamps.

Step 10

install baluster on landing

Insert the Baluster

To install the baluster on the landing, insert the baluster into the slots in the handrail depending on the design of the staircase.

Step 11

Attach the Handrail

Leave the end spindles for last, so you'll have room to attach the handrail to the newel posts or wall. Flip the handrail over and attach the handrail in place; between newel posts or between a newel post and the wall.

Step 12

fasten each spindle in place

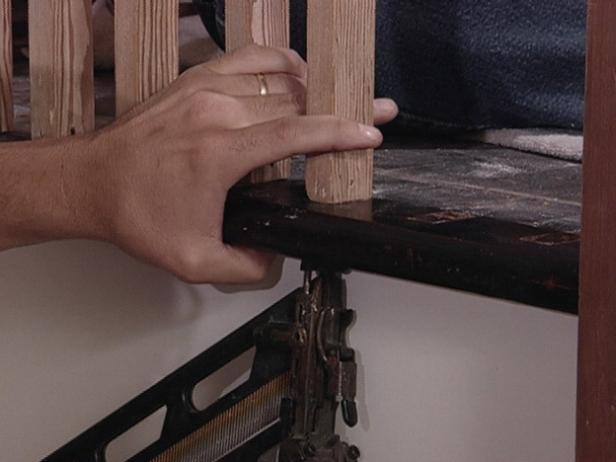

Fasten Each Spindle

Place the floor nosing piece at the edge of the staircase landing. Nail through the bottom of the nosing to fasten each spindle in place. If the nosing on the staircase is already in place, you can toe nail the spindles to the nosing or use a wooden dowel and glue to make this connection.
