Step 1

attaching hanging brackets to top of door

Attach a Header

This project starts after preparation of the pocket door site has been completed --- drywall has been removed, studs, plates and sills have been removed, and electrical and plumbing issues have been handled.

Be sure to purchase a high-quality pocket door frame with durable hardware. Additionally, the size of the header increases with the weight of the door, so be sure to factor this in. Most pocket door frame kits specify how big the header should be.

Step 2

attach split studs to floor and header

Attach the Split Studs

The door rides through a channel made by what are called "split studs." These studs function like regular wall studs but are metal-wrapped and form a hollow channel in the middle for the pocket door to pass through.

Attach the split studs to the floor and to the header, checking for plumb. When you hang the new drywall that will hide the pocket door when it's open, you'll attach the drywall to the exterior (wood) side of these split studs.

Step 3

DTTR-209_Brackets-on-pocket-door_s4x3

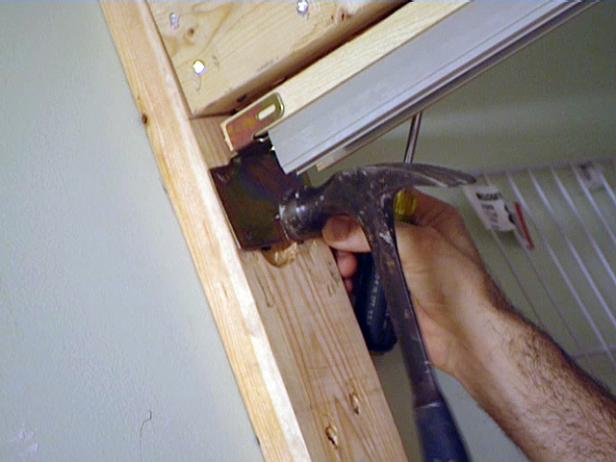

Install the Brackets

Attach the hanging brackets to the top of the door and slide the wheels into the track.

Step 4

attach door to the wheels

Attach the Door

Attach the door to the wheels, clipping the brackets onto the pins that extend from the wheels; then install the guide at the bottom of the door to ensure that the door will operate without rubbing.

Step 5

cut and install trim around door

Install the Door Pulls

Install the pocket door "pulls" that accompany the framing kit. If you want to install other hardware, be sure that it can be inset into both sides of the door without blocking the door's operation.

Step 6

Hang New Drywall

Hang drywall to cover up the area behind the open pocket door.

Step 7

Install the Trim

Measure, cut and install trim around the door, starting with the top header trim piece and then the side jambs. For the casing trim (outside), use finish nails just long enough to "bite" into the 2 x 4s -- longer nails might extend too far into the door chamber and scratch the door during opening and closing.
