Step 1

Assemble Pipes

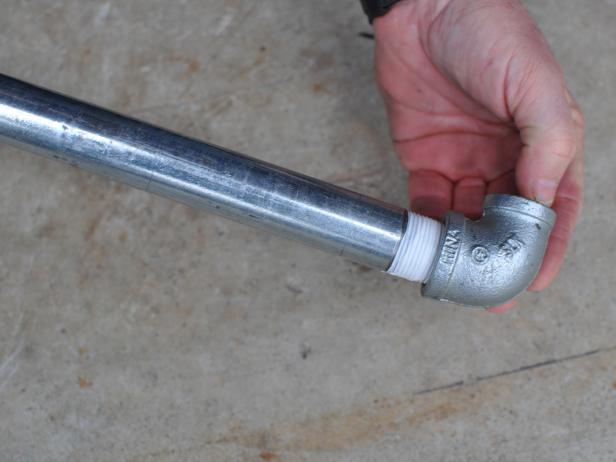

Connect the 48-inch pipe to the bottom of the ball valve. Wrap the threaded section of pipe with Teflon tape, then screw on the bottom side of the valve (Image 1). Next, attach the upper 36-inch pipe to the top of the valve. Use Teflon tape again, to help ensure a water tight connection (Image 2). At the very top of the pipe assembly, add the 90-degree elbow, using Teflon tape to secure the connection. Make sure the elbow faces out on the same side as the valve handle, as this will eventually be mounted to a wall and the shower fixture will attach at the elbow (Image 3). Tighten connection using a pipe wrench and pliers (Image 4).

Step 2

Bros or Pros 2017

Bros or Pros 2017

Photo by: Tomas Espinoza/Flynnside Out Productions

Tomas Espinoza/Flynnside Out Productions

Prep for Painting

Lay out a drop cloth or plastic sheeting to protect the work space. Remove the handle from the ball valve using a screwdriver.

Step 3

Bros or Pros 2017

Bros or Pros 2017

Photo by: Tomas Espinoza/Flynnside Out Productions

Tomas Espinoza/Flynnside Out Productions

Spray Paint Piping

Using light sweeping motions, spray paint the pipes, valve and elbow in desired color. Matte or satin black works best. Allow to dry overnight before handling.

Step 4

Bros or Pros 2017

Bros or Pros 2017

Photo by: Tomas Espinoza/Flynnside Out Productions

Tomas Espinoza/Flynnside Out Productions

Measure and Mark Location

Determine where you'd like to install the piping on the wall . You’ll use this to guide where your water source hole will be located.

Step 5

Bros or Pros 2017

Bros or Pros 2017

Photo by: Tomas Espinoza/Flynnside Out Productions

Tomas Espinoza/Flynnside Out Productions

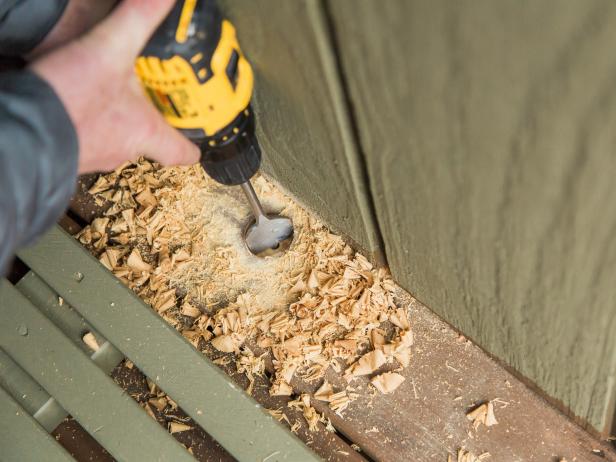

Drill Water Source Hole

Drill an opening into the deck floor using a drill and 1-inch hole saw bit.

Step 6

Bros or Pros 2017

Bros or Pros 2017

Photo by: Tomas Espinoza/Flynnside Out Productions

Tomas Espinoza/Flynnside Out Productions

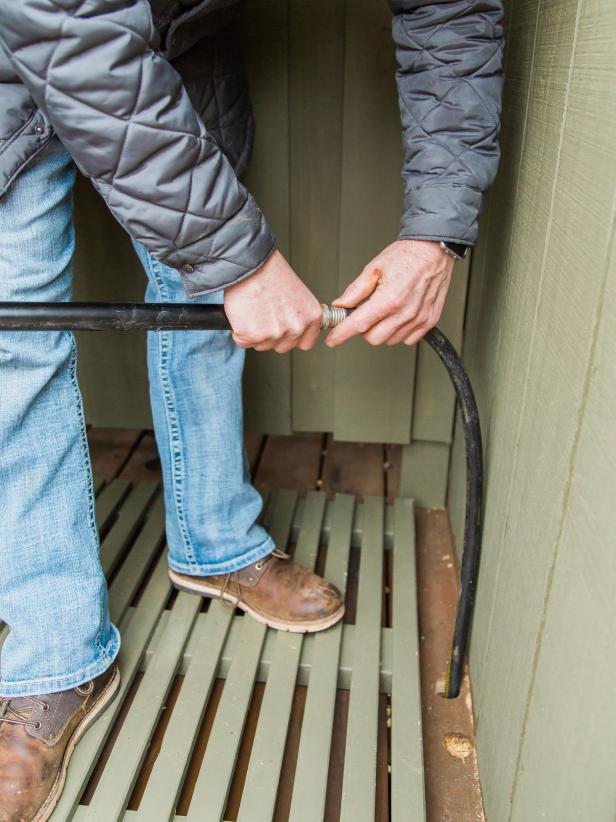

Secure Water Source

Push a garden hose up through the hole in the decking and attach it to the threaded pipe.

Step 7

Secure to Wall

With the water source connected, secure the entire pipe assembly to the wall using 3/4-inch pipe clips and 1-inch wood screws.

Step 8

Bros or Pros 2017

Bros or Pros 2017

Photo by: Tomas Espinoza/Flynnside Out Productions

Tomas Espinoza/Flynnside Out Productions

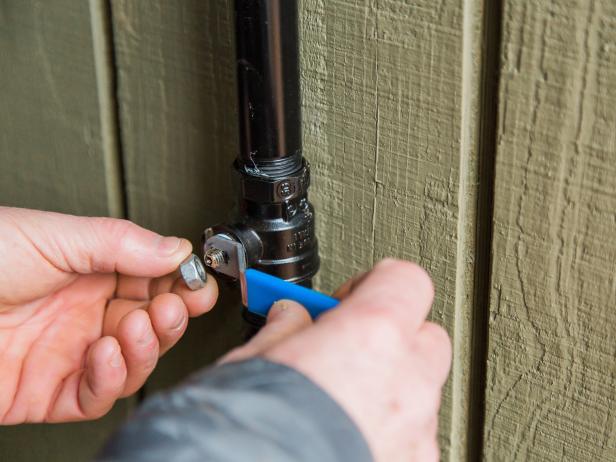

Re-Attach Valve

Once the pipe assembly is secured to the wall, re-attach the valve handle to the assembly. We didn’t paint the handle since handling it can chip the paint over time .

Step 9

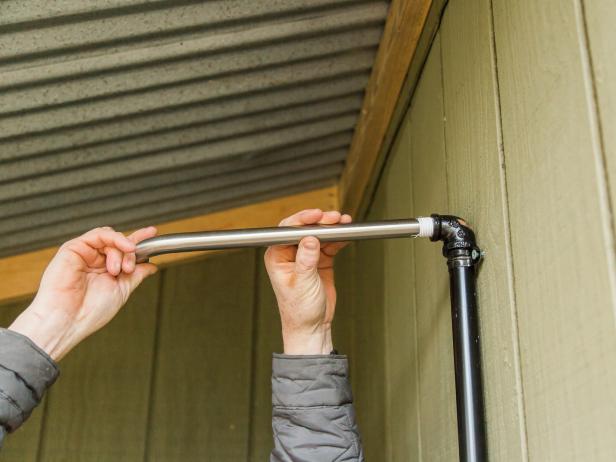

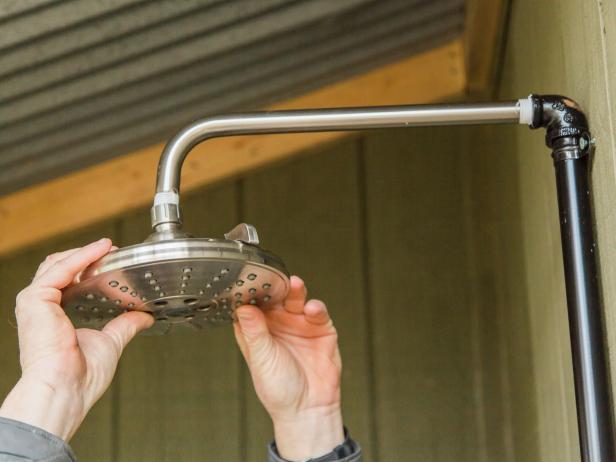

Attach Shower Fixture

Using Teflon tape, secure the shower arm to the outward facing elbow at the top of the pipe assembly (Images 1 and 2). Next, attach the shower head to the shower arm using Teflon tape (Image 3).

Step 10

Bros or Pros 2017

Bros or Pros 2017

Photo by: Tomas Espinoza/Flynnside Out Productions

Tomas Espinoza/Flynnside Out Productions

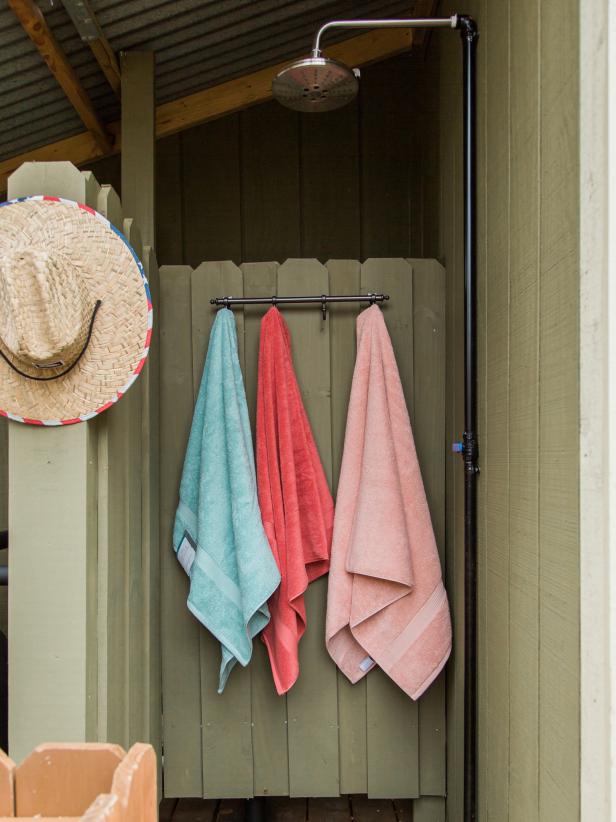

Attach Hooks

To keep towels and shower accessories handy, mount hooks and towel bars within easy reach.
