Step 1

Drain and Wash

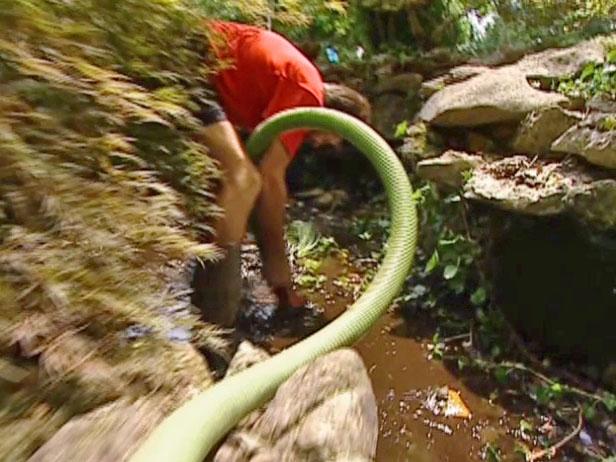

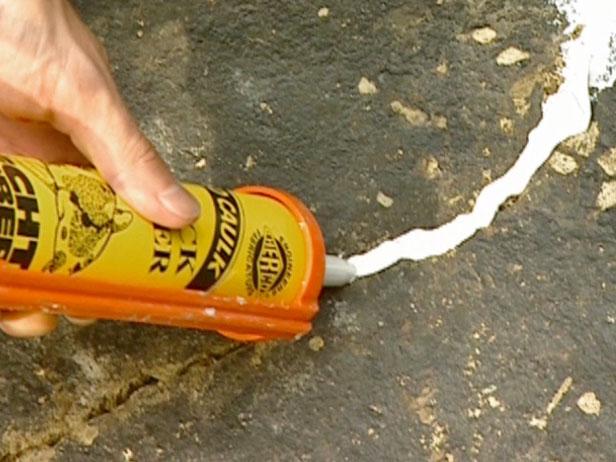

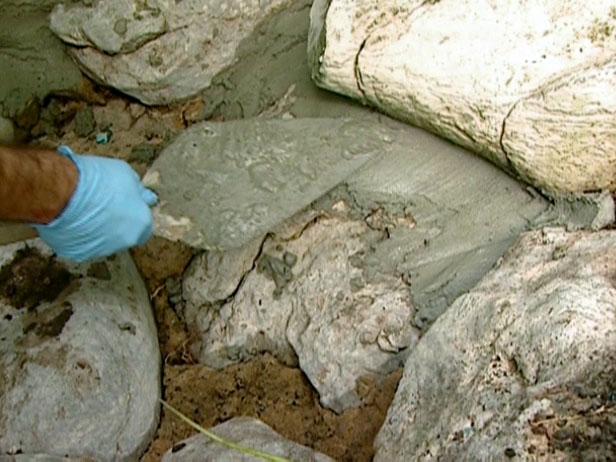

Drain the remaining water from the pond (Image 1). Pressure wash the concrete surface of pond's interior, then apply a pond caulk (Image 2) to all major cracks. Because caulk is flexible and will shift with the crack, smooth caulk with a trowel for better and wider coverage.

Step 2

Repair Holes

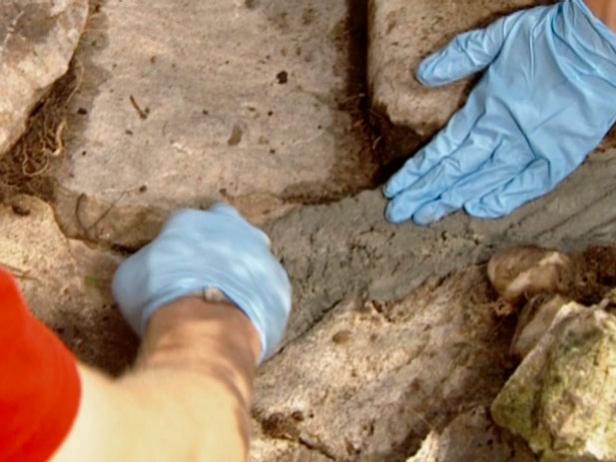

If there are large holes in the concrete, you may have to mix a "quick drying concrete" to mend these areas (Image 1). The new concrete should be spread evenly with the existing surface (Image 2).

Step 3

apply alcohol base primer to dry surface

Apply Primer and Sealant

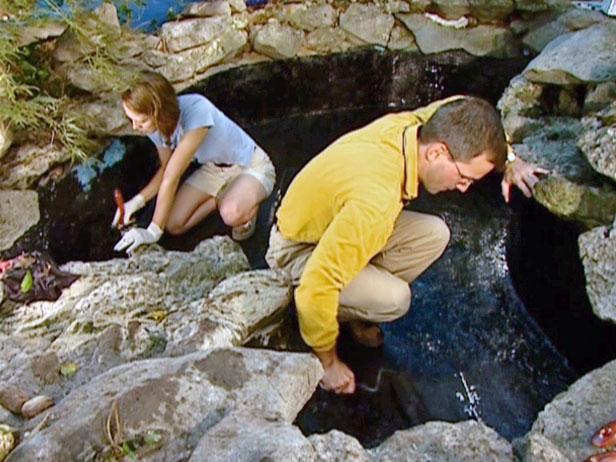

Apply the alcohol-base primer to the dry surface. This creates a bond between the surface and new sealant. After 45 minutes the primer should be dry. Next, apply two coats of neoprene sealant.

Step 4

dig trench from lowest portion of pond to highest

Create a Trench

Dig a trench from lowest portion of the pond to the highest (where filter system will be installed). Run the hose from the bottom portion of the pond (where the pump will sit) to the top (where the filter will sit).

Step 5

position filter system on level dirt surface

Place the Filter System

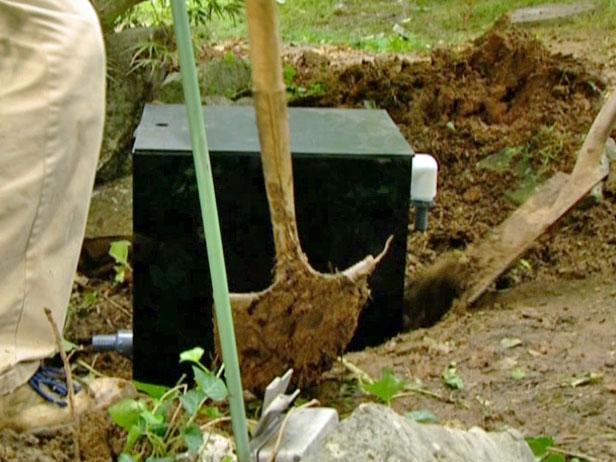

Position the filter system on a level surface of dirt. Use a level for precise placement. Fill in dirt around the filter, taking care not to cover the connections.

Step 6

attach hoses to filter system

Attach Hoses

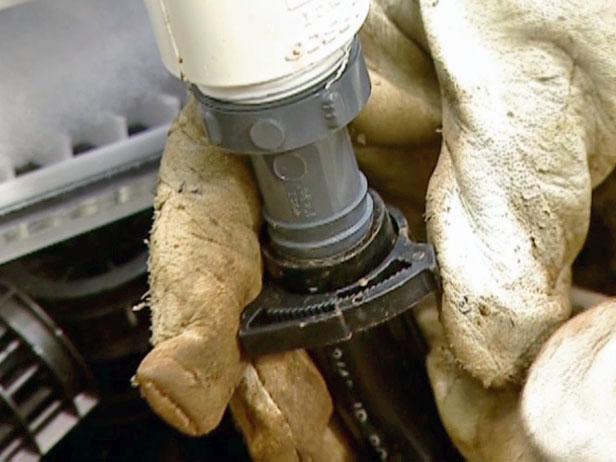

A vinyl hose transitions to the spa hose and the vinyl hose attaches to the trickle filter at the inlet. Use the black UV staple hose and attach it with plastic clamps.

Step 7

cut the vinyl hose at proper length

Attach Filters

Once you’ve determined the proper length of vinyl hose from the trickle filter to the UV filter, cut the vinyl hose with a knife. Attach the two filters by joining them together with plastic clamps at the back of the trickle filter.

Step 8

hide vinyl hose under pile of rocks

Create a Waterfall

Another vinyl hose is attached to the opposite side of the filter with plastic black clamps, for the clean water to be returned back into the pond. Create a waterfall-like effect by hiding the vinyl hose under a pile of rocks, but only enough to hide, as the hose can be crushed by too much weight

Step 9

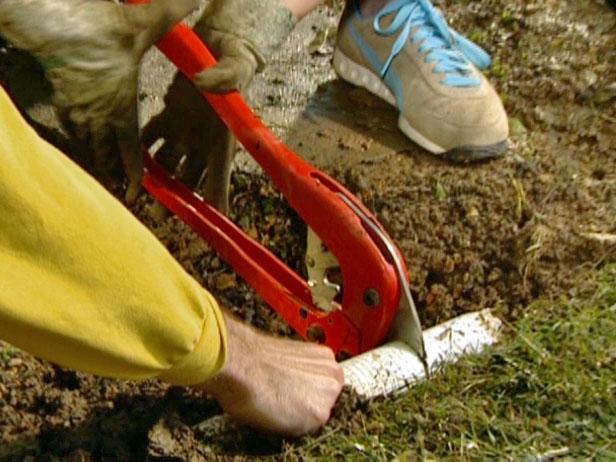

use PVC cutters to cut spa hose

Attach the Hose and Filter

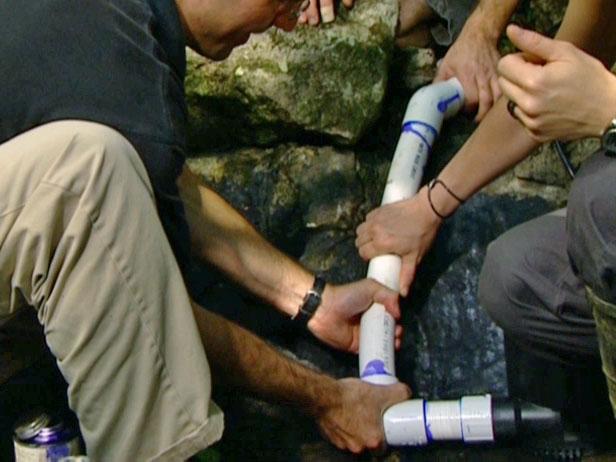

Next, attach the spa hose to the UV filter and "pond beast." First, use PVC cutters to cut the spa hose. Then, clean hose inside and out. Apply primer and glue to "seat" area of fitting and spa hose. Push the two together.

Step 10

run spa hose under walkway

Attach the Ball Valve

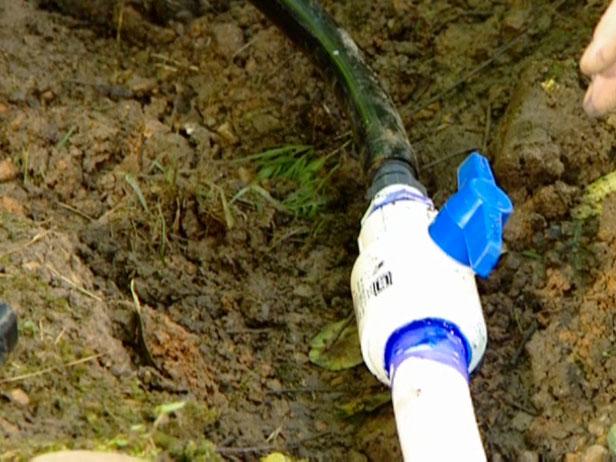

Run 1" spa hose under the walkway. Add primer and glue to extension, then attach ball valve to control water flow direction. Glue reducing fitting inside the ball valve, then cut flexible tubing to attach the ball valve to UV filter.

Step 11

lubricate pump connection

Lubricate the Pump Connection

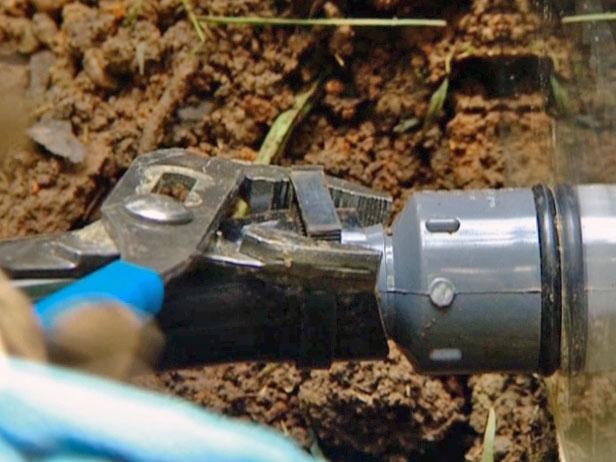

Next, use Teflon tape to lubricate the connection of the waterfall pump, then connect the 1" spa hose to the pump.

Step 12

fill pond with water

Finish the Project

Apply primer and paint to discuss the pump and hoses , then fill the pond with water.
