Introduction

PVC pipes painted silver make this bedframe look like metal. Instead of a sail, you could hang a canvas, a flag or any type of sturdy material.

We made another version of this headboard without the sail. We strung twine along the top section, then clipped postcards onto the twine. How to Make an Industrial-Style Headboard With PVC Pipes.

Step 1

Original_Pipe-Headboard-PVC-Tubes_s4x3

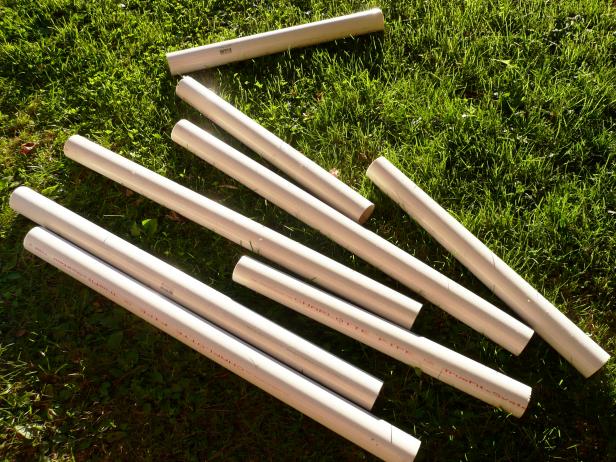

Cut the Pieces to Size

Determine the size of the headboard (ours is a queen-size), then cut the pieces of PVC piping with a miter saw or a PVC cutter. Here are the dimensions for a queen-size bed:

  • (2) horizontal pieces at 59"
  • (2) bottom pieces at 38"
  • (2) top pieces at 24"

Step 2

Build the Frame

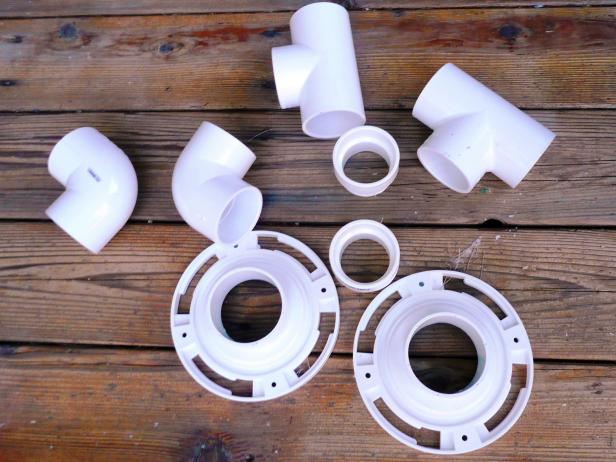

Lay out the pieces (Image 1) and dry fit them with the connectors to make sure they fit. When you're ready, use the PVC primer (purple, Image 2) and then the PVC cement, and push the pieces together. Use a level to make sure you have them straight before letting the pieces dry.

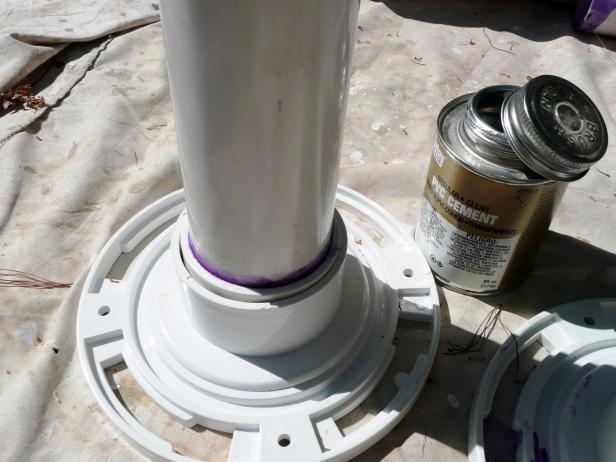

We needed to use an adapter insert inside the plumbing floor flange because it was larger than the PVC pipe (Image 3).

Step 3

Original_Pipe-Headboard-Frame_s3x4

Prime

It is helpful to have two people when putting the whole thing together. Again, make sure everything is level before letting it dry. Cover the whole thing with the PVC primer (purple). This will help the paint adhere to the piece.

Step 4

Paint

Spray-paint the headboard with silver-hammered paint for a metal look. You can also try it in black. Let dry. Turn the headboard over and do the other side.

Step 5

Cut the Sail

Cut the sail, hem along the edges that need it.

Step 6

Original_Pipe-Headboard-Adding-Grommets-on-Sail_s4x3

Add Grommets

Place grommets along the edge by following the grommet package instructions. Make sure the grommets match the grommet punch.

Step 7

Original_Pipe-Headboard-Rope-and-Sail_s4x3

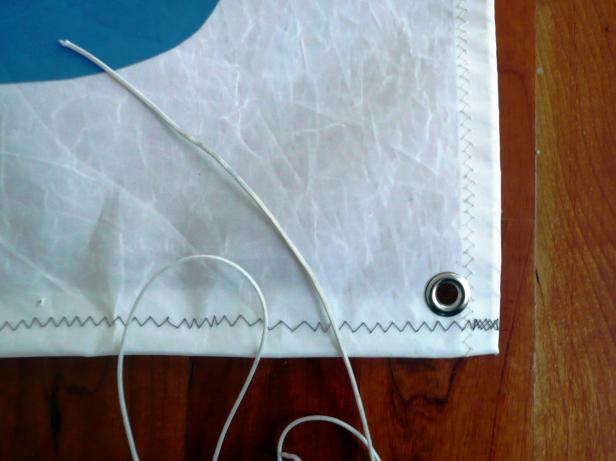

Hoist the Sail

Add line and attach the sail to the headboard.
