Introduction

For the maximum amount of light, the end of the brackets should be placed on each side of the window opening so the curtains can be drawn back completely. The exact placement will depend on the width of the gathered curtain. In our project, only end supports are required. For larger windows, extra support also may be needed above the middle of the window. Curtain weight and rod strength should also be considered when deciding on how much rail support is needed.

Step 1

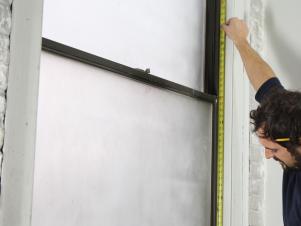

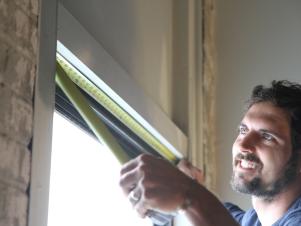

Measure and Mark Where to Install Curtain Rod

Measure Height of Curtain Rod

2009 Dorling Kindersley Limited DK - Do It Yourself Home Improvement View original photo.

DK - Do It Yourself Home Improvement, 2009 Dorling Kindersley Limited

Measure

Make a mark above the window recess for the required height of the rod. This will depend on curtain length and aesthetic preference. Hanging the rod close to the ceiling line can make a room look taller

Step 2

Check a Level's Accuracy

Check Level for Accuracy

2009 Dorling Kindersley Limited DK - Do It Yourself Home Improvement View original photo.

DK - Do It Yourself Home Improvement, 2009 Dorling Kindersley Limited

Draw a Level Line

Use the height mark to draw a level guide line above the recess; this should extend slightly beyond the recess width on each side.

Step 3

Level and Mark Where Rod Will Hang

Level and Mark Wall for Curtain Rod

2009 Dorling Kindersley Limited DK - Do It Yourself Home Improvement View original photo.

DK - Do It Yourself Home Improvement, 2009 Dorling Kindersley Limited

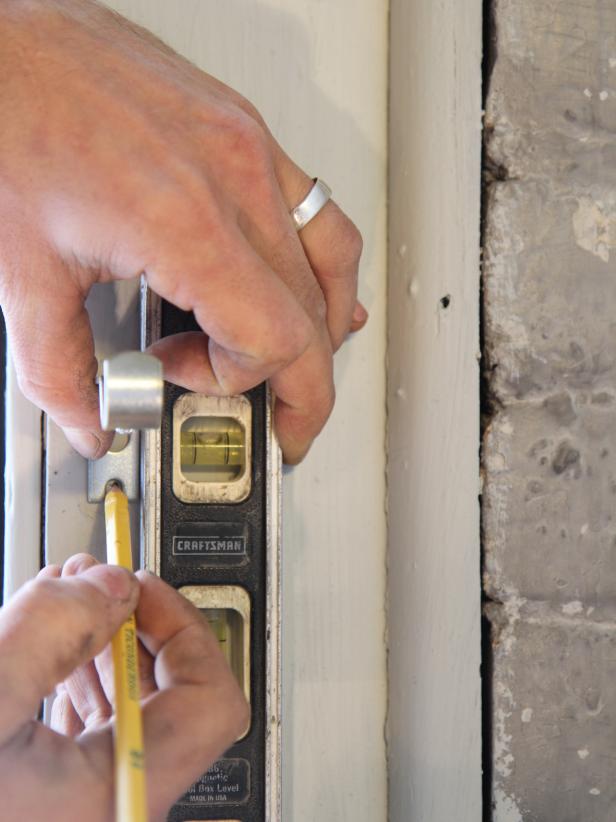

Level It

Use a level to make a mark on the horizontal line directly above the corner of the recess.

Step 4

Measure Above the Window Recess

Measure Where Rod Will Hang

2009 Dorling Kindersley Limited DK - Do It Yourself Home Improvement View original photo.

DK - Do It Yourself Home Improvement, 2009 Dorling Kindersley Limited

Center the Rod Over the Window

Measure back to mark the position of the brackets. This distance will depend on the width of the gathered curtain.

Step 5

Position Curtain Rod Brackets

Position Brackets for Curtain Rod

2009 Dorling Kindersley Limited DK - Do It Yourself Home Improvement View original photo.

DK - Do It Yourself Home Improvement, 2009 Dorling Kindersley Limited

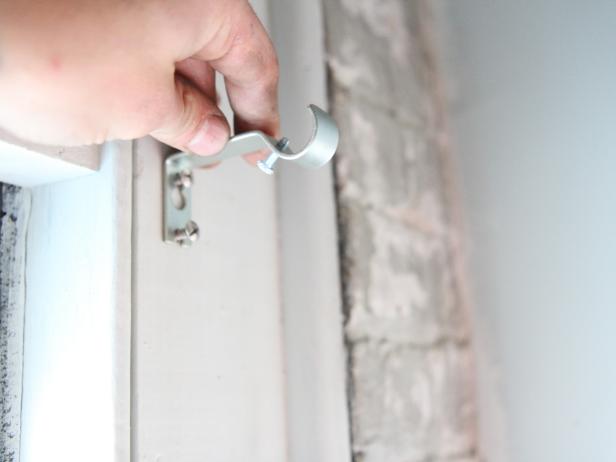

Position the Brackets

Position the end support on the mark and use a pencil to mark off attachment holes. Remove the end support.

Step 6

Secure Brackets

Secure Brackets into Wall

2009 Dorling Kindersley Limited DK - Do It Yourself Home Improvement

DK - Do It Yourself Home Improvement, 2009 Dorling Kindersley Limited

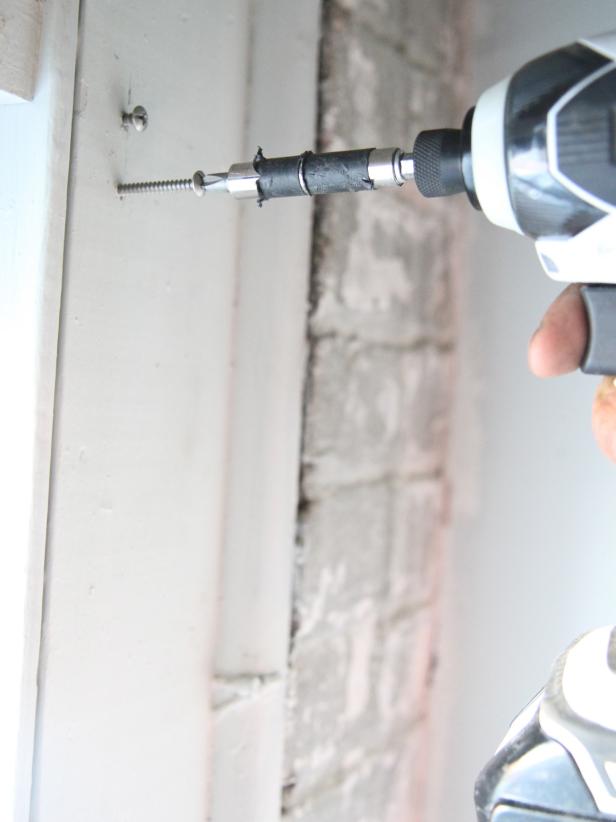

Secure the Brackets

Plug attachment holes if necessary and screw into place. Repeat steps for the other end support.

Step 7

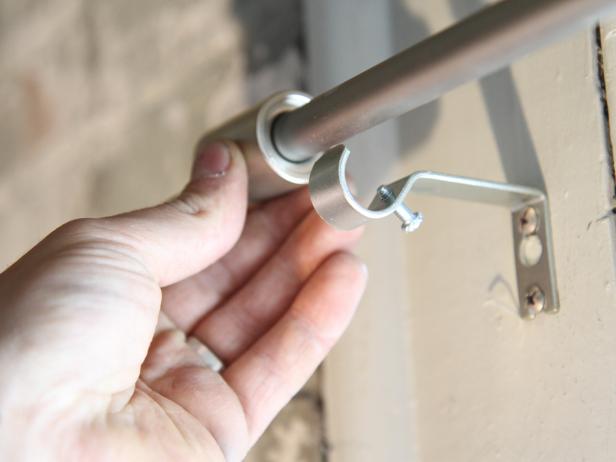

Thread Rod Through Supports

Cut Rod and Thread Through Supports

2009 Dorling Kindersley Limited DK - Do It Yourself Home Improvement View original photo.

DK - Do It Yourself Home Improvement, 2009 Dorling Kindersley Limited

Cut the Rod to Length

It must extend a couple of inches on each side of the end support brackets to accommodate end rings and finials. With supports in place, thread the rod through one end support.

Step 8

Position Rings on the Rod

Attach Rings and End Support

2009 Dorling Kindersley Limited DK - Do It Yourself Home Improvement View original photo.

DK - Do It Yourself Home Improvement, 2009 Dorling Kindersley Limited

Attach Rings and End Support

Position rings on the rod before threading the other end of the rod through the other end support.

Step 9

Position Outer Rings

Position Rings on the Outside of Rod

2009 Dorling Kindersley Limited DK - Do It Yourself Home Improvement View original photo.

DK - Do It Yourself Home Improvement, 2009 Dorling Kindersley Limited

Place Outer Ring

Position one ring on the outer side of each of the end supports.

Step 10

Push or Screw Finials in Rod

Position Finials on the Rod

2009 Dorling Kindersley Limited DK - Do It Yourself Home Improvement View original photo.

DK - Do It Yourself Home Improvement, 2009 Dorling Kindersley Limited

Position Finials on the Ends of the Rod

Normally these are just pushed to fit; some are secured by a screw.

Step 11

Secure Rod with Screwdriver

Secure the Curtain Rod

2009 Dorling Kindersley Limited DK - Do It Yourself Home Improvement View original photo.

DK - Do It Yourself Home Improvement, 2009 Dorling Kindersley Limited

Secure the Rod

Attach the rod to the bracket by securing screws through the supports and into the rod. You may need to pilot-drill these holes first.
