Step 1

Wade Works Creative

Wade Works Creative

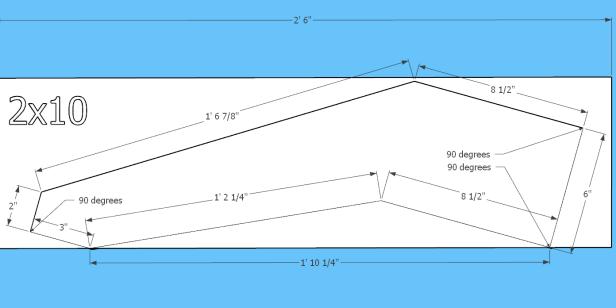

Mark Layout of Leg

Set up the 2x10 board, and lay out tools. Mark the layout for the leg starting with the lower right corner. Make your first mark 2” from the right edge of the board.

Step 2

Mark Board

Mark the board 1’ 10 ¼” from the first mark.

Step 3

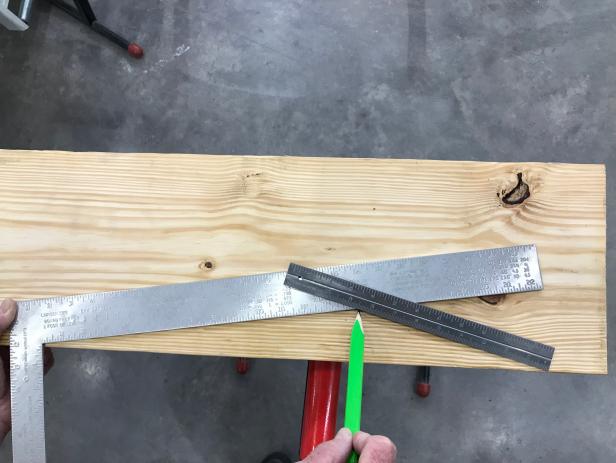

Bind Lower Intersection

Bind the lower section using two rulers or a framing square.

Step 4

Wade Works Creative

Wade Works Creative

Connect Lines

Connect the lines.

Step 5

Mark Bottom Right Angle

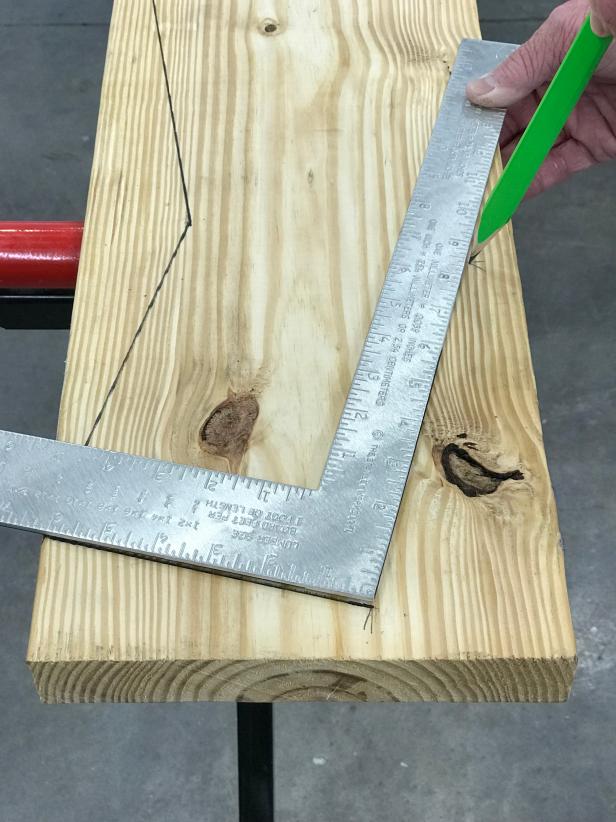

The bottom right of the leg is at a 90-degree angle. Mark 6" up using a framing square.

Step 6

Wade Works Creative

Wade Works Creative

Mark Top Right Angle

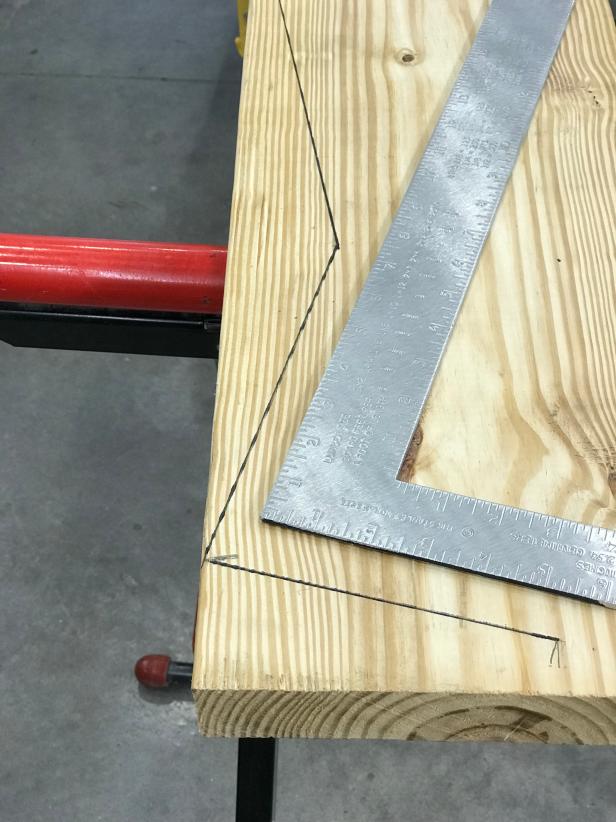

Mark the top right angle using the framing square as a 90-degree reference.

Step 7

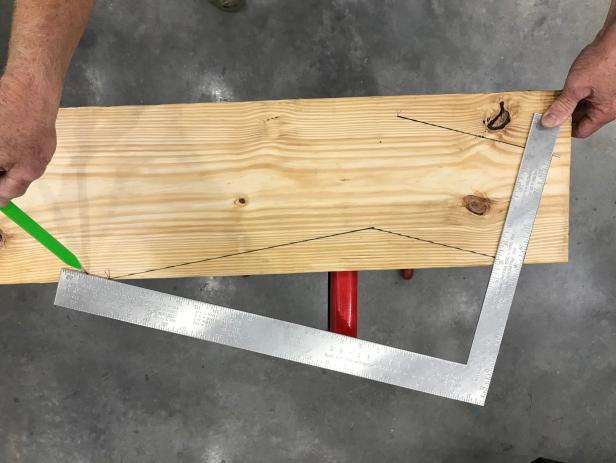

Draw Foot of the Leg

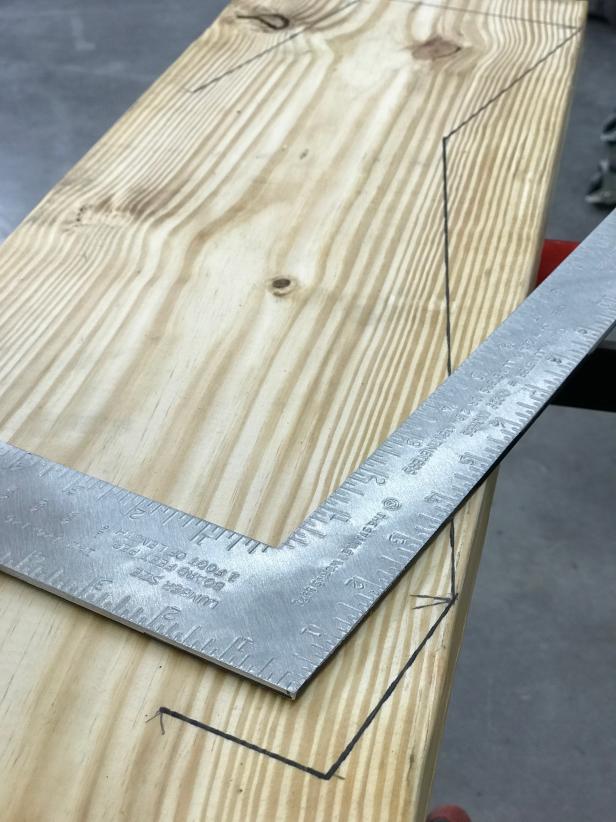

Draw the foot of the leg, and extend the line 3" using the framing square as a 90-degree reference.

Step 8

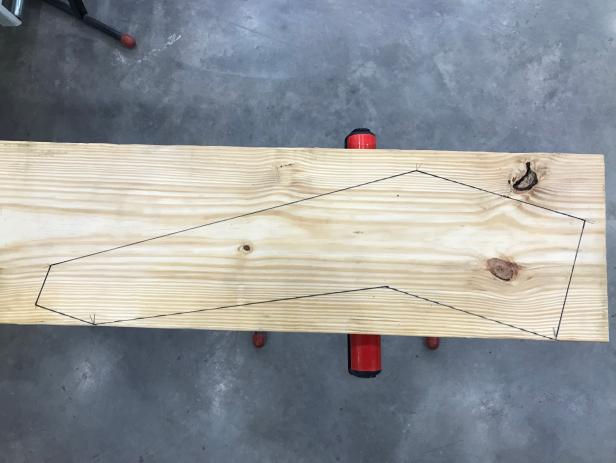

Connect the Shape

Mark the 2” vertical line (Image 1), and connect the shape (Images 2-4).

Step 9

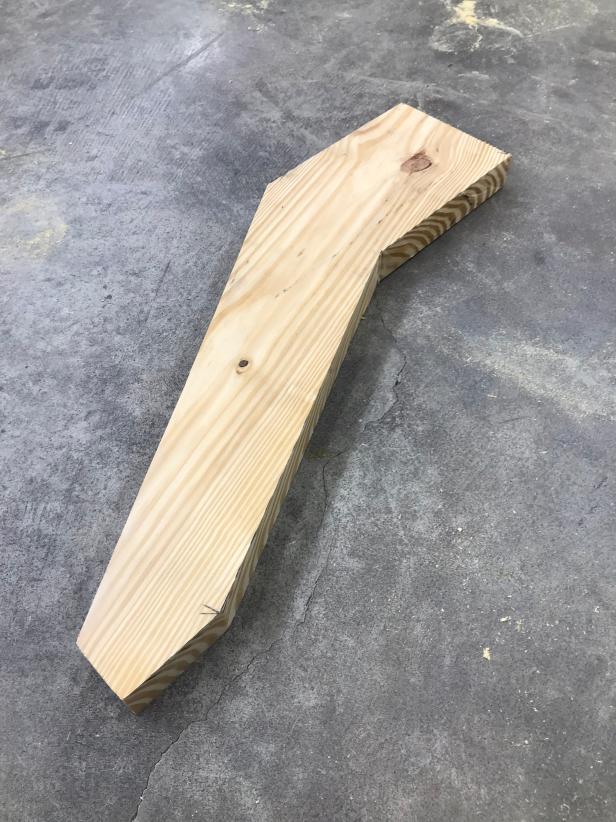

Cut Out Leg

Cut out the shape with a circular saw (Images 1 and 2). Finish the inside cut with a jigsaw (Images 3 and 4).

Step 10

Wade Works Creative

Wade Works Creative

Cut Remaining Boards

Mark the rest of the 2x10 boards in 2’ 6” length increments, and cut with a chop saw or circular saw.

Step 11

Cut Remaining Legs

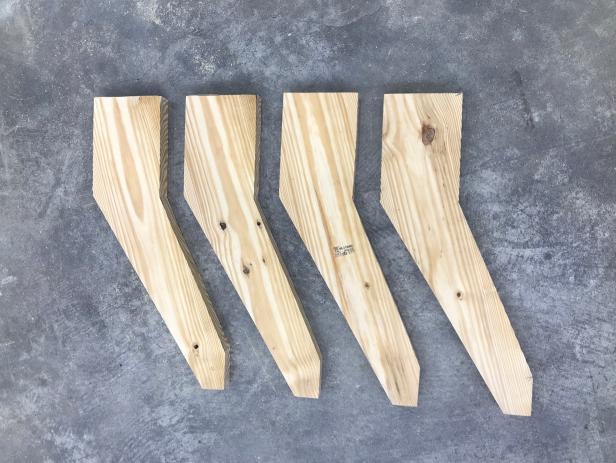

Trace the first leg on each board, and cut as before.

Step 12

Wade Works Creative

Wade Works Creative

Round Over Outside Edges

Round over all outside edges with a router or sander as desired.

Step 13

Wade Works Creative

Wade Works Creative

Mark Reference Line

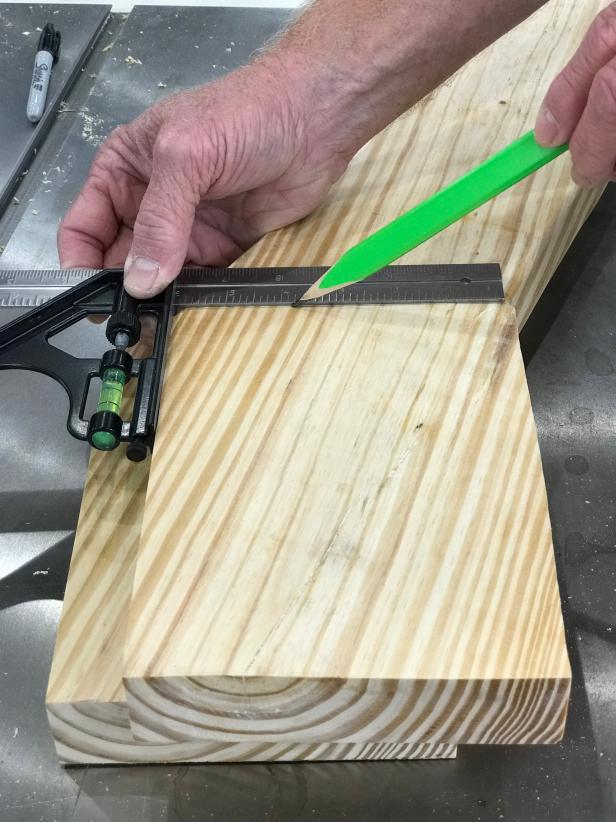

Mark a reference line down from the top peak of each leg using a framing square.

Step 14

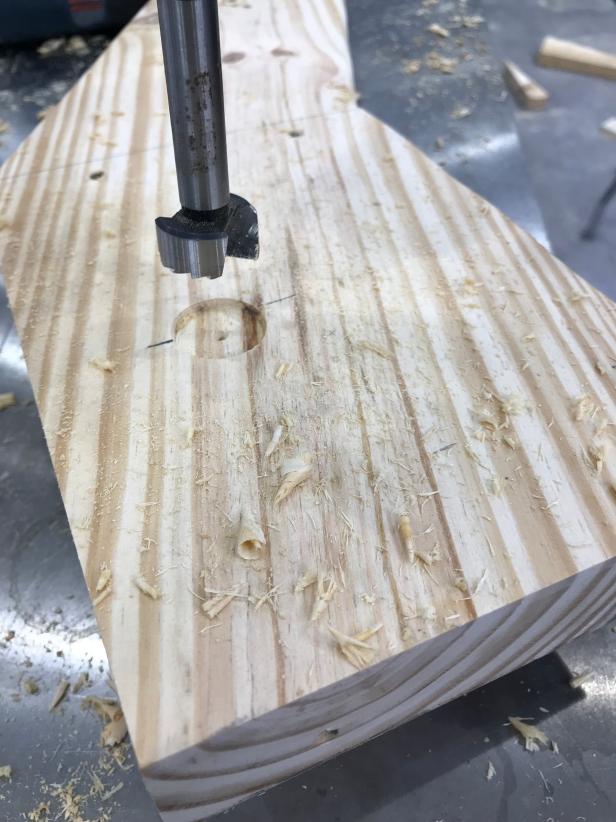

Drill Holes

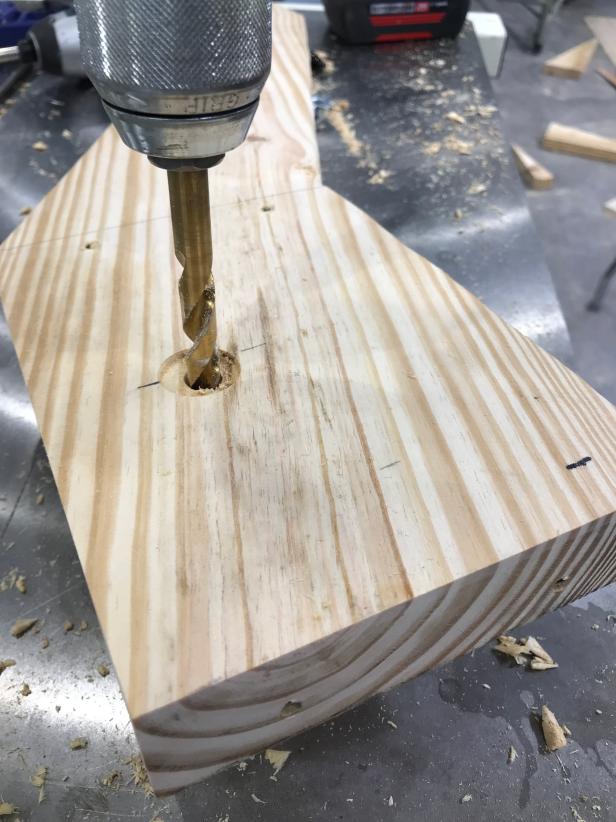

Drill a counterbore hole and through hole on the reference line in each leg for attachment.

Step 15

Drill on Opposite Side of Previously Drilled Holes

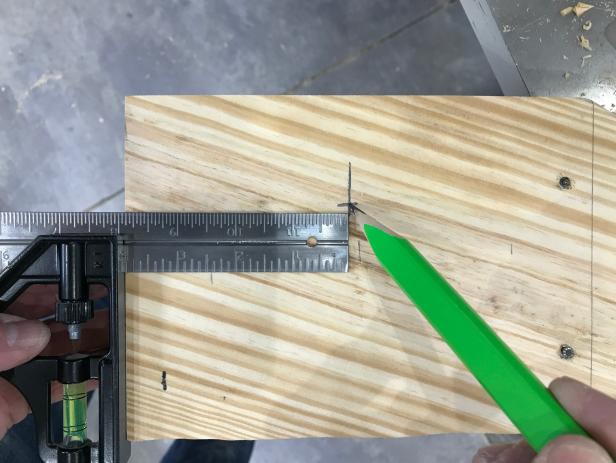

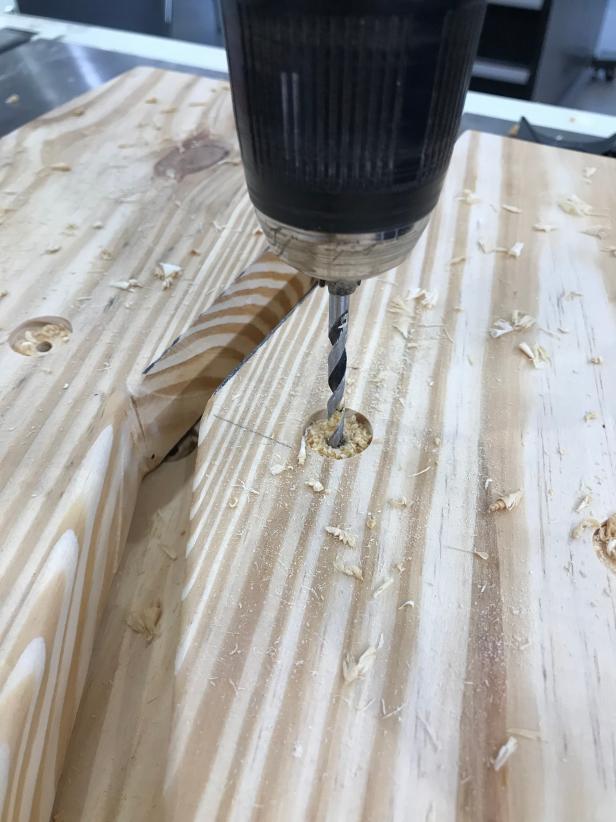

Turn legs over, and make a mark 4” from the left side and 2” from the top (Image 1). Counterbore and drill through on the mark (Images 2 and 3).

Step 16

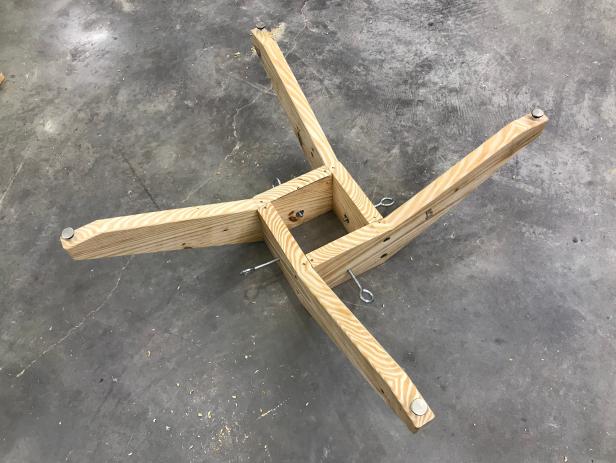

Attach Legs

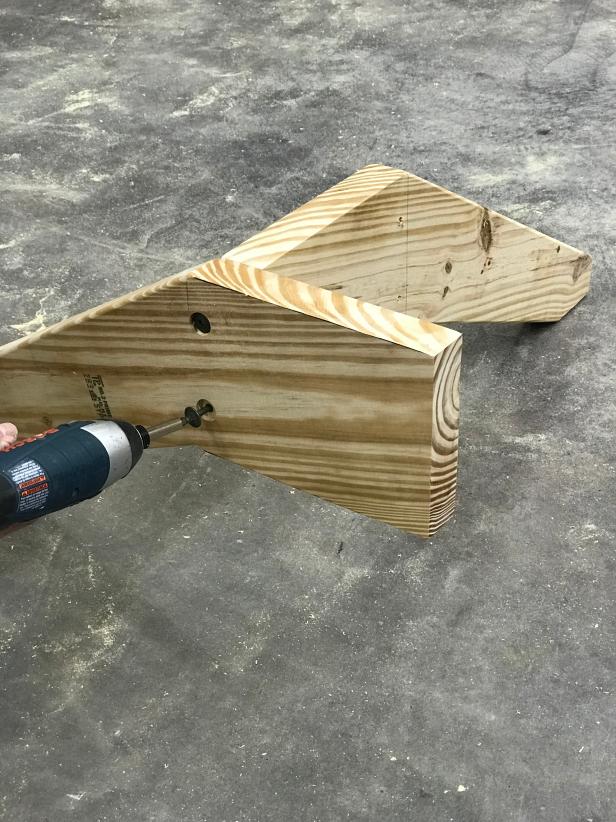

Attach legs together in a pinwheel pattern using two cabinet lags in each leg.

Step 17

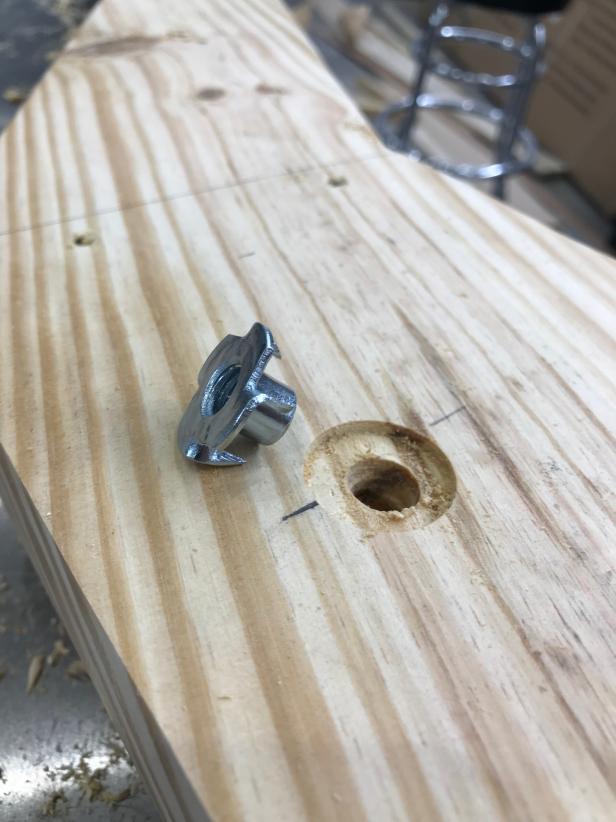

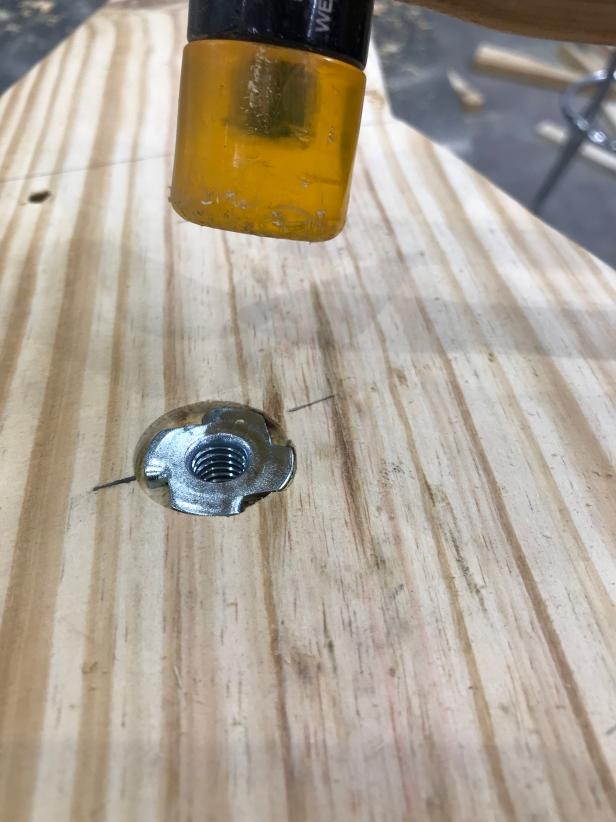

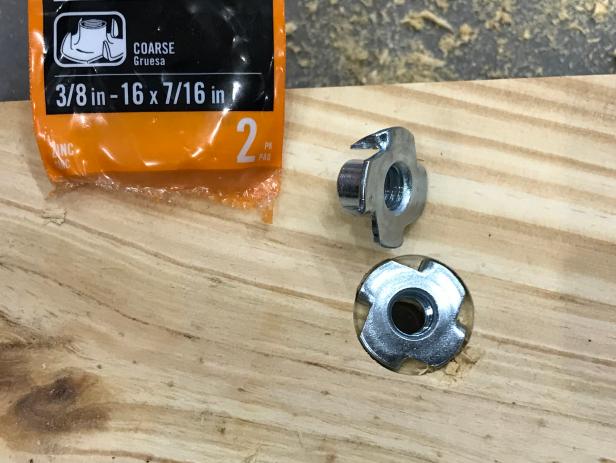

Insert T-Nuts

Insert the T-nuts with a hammer on the inside of the legs.

Step 18

Wade Works Creative

Wade Works Creative

Insert Eye Bolts

Insert four eye bolts through the T-bolts.

Step 19

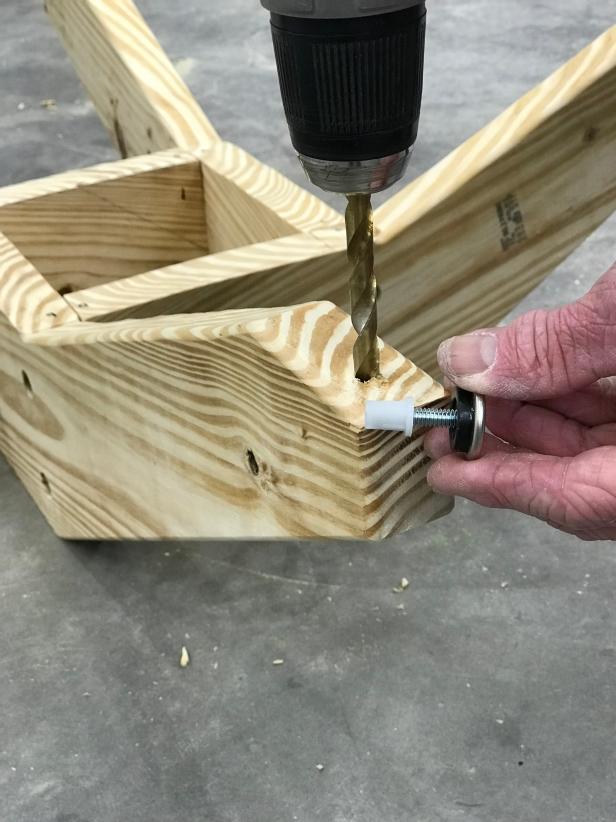

Insert Self-Leveling Feet

Drill and insert self-leveling feet on all four legs following package instructions.

Step 20

Finish as Desired

Paint or finish as desired.
